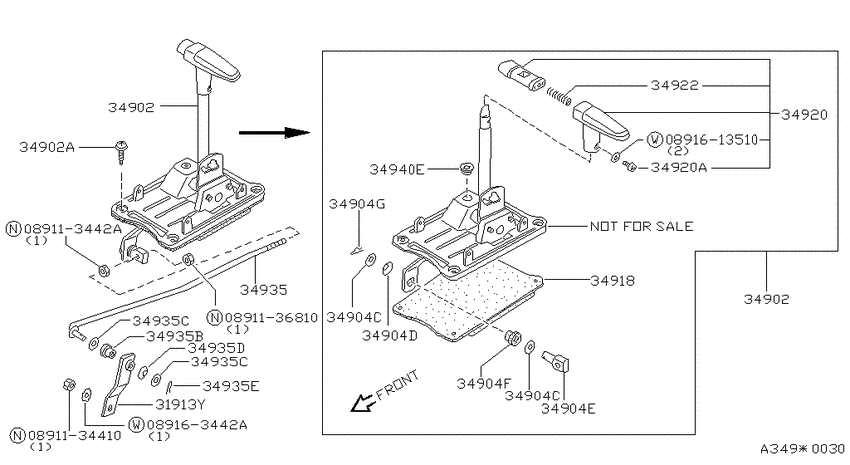

Auto transmission control device (1983-10-01 ~ 1986-01-01; AT) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891134410
|
0891134410
08911-34410
NUT
|
08911-34410 |
— | ||
| replacement | |||||
|
0891134410
|
0891134410
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
089113442A
|
089113442A
08911-3442A
NUTHEX
|
08911-3442A |
— | ||
|
0891613510
|
0891613510
08916-13510
ﾜﾂｼﾔ-,ﾂ-ｽ
|
08916-13510 |
— | ||
|
089163442A
|
089163442A
08916-3442A
WASHERTOOTH
|
08916-3442A |
— | ||
|
31913Y
|
31913Y
31913-04F00 Lever-Select Range1986-02-01 ~ ; CA20E.AT; , |
31913-04F00 |
US $8.06 |
||
|
34902
|
34902
34902-06F00
Device Assy-Transmission Control
1983-10-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
34902-06F00 |
— | ||
|
34902
|
34902
34902-32F00
Device Assy-Transmission Control
1986-02-01 ~ ; CA20E.AT; , |
34902-32F00 |
— | ||
|
34902
|
34902
34902-32F60
Device Assy-Transmission Control
1986-02-01 ~ ; CA20E.AT; , |
34902-32F60 |
— | ||
|
34902
|
34902
01461-00061 SCREW1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01461-00061 |
US $2.21 |
||
|
34902
|
34902
01461-00071 SCREW1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
01461-00071 |
US $1.73 |
||
|
34902
|
34902
01461-00481 Bolt1986-02-01 ~ ; CA20E.AT; , |
01461-00481 |
US $1.73 |
||
|
34902
|
34902
34902-06F00
Device Assy-Transmission Control
1983-10-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
34902-06F00 |
— | ||
|
34902
|
34902
34902-32F00
Device Assy-Transmission Control
1986-02-01 ~ ; CA20E.AT; , |
34902-32F00 |
— | ||
|
34902
|
34902
34902-32F60
Device Assy-Transmission Control
1986-02-01 ~ ; CA20E.AT; , |
34902-32F60 |
— | ||
|
34902
|
34902
01461-00061 SCREW1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01461-00061 |
US $2.21 |
||
|
34902
|
34902
01461-00071 SCREW1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
01461-00071 |
US $1.73 |
||
|
34902
|
34902
01461-00481 Bolt1986-02-01 ~ ; CA20E.AT; , |
01461-00481 |
US $1.73 |
||
|
34902A
|
34902A
01461-00061 SCREW1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01461-00061 |
US $2.21 |
||
|
34902A
|
34902A
01461-00071 SCREW1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
01461-00071 |
US $1.73 |
||
|
34902A
|
34902A
01461-00481 Bolt1986-02-01 ~ ; CA20E.AT; , |
01461-00481 |
US $1.73 |
||
|
34904C
|
34904C
36522-68200
Washer-Plain
1986-02-01 ~ ; CA20E.AT; , |
36522-68200 |
— | ||
| replacement | |||||
|
34904C
|
34904C
365226820A Washer1986-02-01 ~ ; CA20E.AT; , |
365226820A |
from US $1.07 |
||
|
34904C
|
34904C
36522-68200
Washer-Plain
1986-02-01 ~ ; CA20E.AT; , |
36522-68200 |
— | ||
| replacement | |||||
|
34904C
|
34904C
365226820A Washer1986-02-01 ~ ; CA20E.AT; , |
365226820A |
from US $1.07 |
||
|
34904D
|
34904D
34419-04100
Washer-Lock
1986-02-01 ~ ; CA20E.AT; , |
34419-04100 |
— | ||
| replacement | |||||
|
34904D
|
34904D
344190410A Washer1986-02-01 ~ ; CA20E.AT; , |
344190410A |
US $2.91 |
||
|
34904E
|
34904E
34410-V5100 Trunnion-Rod1986-02-01 ~ ; CA20E.AT; , |
34410-V5100 |
US $4.03 |
||
|
34904F
|
34904F
34552V5200 Insulator-Rod1986-02-01 ~ ; CA20E.AT; , |
34552V5200 |
from US $1.22 |
||
|
34904G
|
34904G
0153200022 PIN1986-02-01 ~ ; CA20E.AT; , |
0153200022 |
US $1.73 |
||
|
34918
|
34918
34918-02F00
Dust Cover
1983-10-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
34918-02F00 |
— | ||
|
34920
|
34920
34920-06F25
Knob-Control Lever
1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
34920-06F25 |
— | ||
|
34920
|
34920
34920-06F26
Knob-Control Lever
1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
34920-06F26 |
— | ||
|
34920
|
34920
01413-00041 SCREW1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01413-00041 |
US $1.73 |
||
|
34920
|
34920
0141300051 SCREW1986-07-01 ~ ; CA20E.AT; , |
0141300051 |
from US $0.37 |
||
|
34920
|
34920
34925-P4900 Screw1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
34925-P4900 |
US $2.45 |
||
|
34920A
|
34920A
01413-00041 SCREW1985-08-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01413-00041 |
US $1.73 |
||
|
34920A
|
34920A
0141300051 SCREW1986-07-01 ~ ; CA20E.AT; , |
0141300051 |
from US $0.37 |
||
|
34920A
|
34920A
34925-P4900 Screw1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
34925-P4900 |
US $2.45 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button1986-02-01 ~ ; CA20E.AT; , |
3492201P00 |
from US $1.81 |
||
|
34935
|
34935
34930-30F00 Rod-Selector1986-02-01 ~ ; CA20E.AT; , |
34930-30F00 |
US $42.05 |
||
|
34935
|
34935
34935-04F00
Rod-Selector
1983-10-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
34935-04F00 |
— | ||
|
34935
|
34935
34552V5200 Insulator-Rod1986-02-01 ~ ; CA20E.AT; , |
34552V5200 |
from US $1.22 |
||
|
34935
|
34935
36522-68200
Washer-Plain
1986-02-01 ~ ; CA20E.AT; , |
36522-68200 |
— | ||
| replacement | |||||
|
34935
|
34935
365226820A Washer1986-02-01 ~ ; CA20E.AT; , |
365226820A |
from US $1.07 |
||
|
34935
|
34935
34419-04100
Washer-Lock
1986-02-01 ~ ; CA20E.AT; , |
34419-04100 |
— | ||
| replacement | |||||
|
34935
|
34935
344190410A Washer1986-02-01 ~ ; CA20E.AT; , |
344190410A |
US $2.91 |
||
|
34935
|
34935
00923-10810
PIN-SNAP
1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
00923-10810 |
— | ||
| replacement | |||||
|
34935
|
34935
009231081A PINSNAP1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
009231081A |
from US $0.52 |
||
|
34935
|
34935
0153200022 PIN1986-02-01 ~ ; CA20E.AT; , |
0153200022 |
US $1.73 |
||
|
34935
|
34935
0153200031 PIN1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
0153200031 |
US $2.45 |
||
| replacement | |||||
|
34935
|
34935
009231081A PINSNAP1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
009231081A |
from US $0.52 |
||
|
34935B
|
34935B
34552V5200 Insulator-Rod1986-02-01 ~ ; CA20E.AT; , |
34552V5200 |
from US $1.22 |
||
|
34935C
|
34935C
36522-68200
Washer-Plain
1986-02-01 ~ ; CA20E.AT; , |
36522-68200 |
— | ||
| replacement | |||||
|
34935C
|
34935C
365226820A Washer1986-02-01 ~ ; CA20E.AT; , |
365226820A |
from US $1.07 |
||
|
34935C
|
34935C
36522-68200
Washer-Plain
1986-02-01 ~ ; CA20E.AT; , |
36522-68200 |
— | ||
| replacement | |||||
|
34935C
|
34935C
365226820A Washer1986-02-01 ~ ; CA20E.AT; , |
365226820A |
from US $1.07 |
||
|
34935D
|
34935D
34419-04100
Washer-Lock
1986-02-01 ~ ; CA20E.AT; , |
34419-04100 |
— | ||
| replacement | |||||
|
34935D
|
34935D
344190410A Washer1986-02-01 ~ ; CA20E.AT; , |
344190410A |
US $2.91 |
||
|
34935E
|
34935E
00923-10810
PIN-SNAP
1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
00923-10810 |
— | ||
| replacement | |||||
|
34935E
|
34935E
009231081A PINSNAP1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
009231081A |
from US $0.52 |
||
|
34935E
|
34935E
0153200022 PIN1986-02-01 ~ ; CA20E.AT; , |
0153200022 |
US $1.73 |
||
|
34935E
|
34935E
0153200031 PIN1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
0153200031 |
US $2.45 |
||
| replacement | |||||
|
34935E
|
34935E
009231081A PINSNAP1983-10-01 ~ 1985-08-01; CA18ET.AT +CA20E.AT; , |
009231081A |
from US $0.52 |
||
|
34940E
|
34940E
01658-00521 PLUG-FRONT FLOOR1983-10-01 ~ 1986-02-01; CA18ET.AT +CA20E.AT; , |
01658-00521 |
US $0.97 |
||
