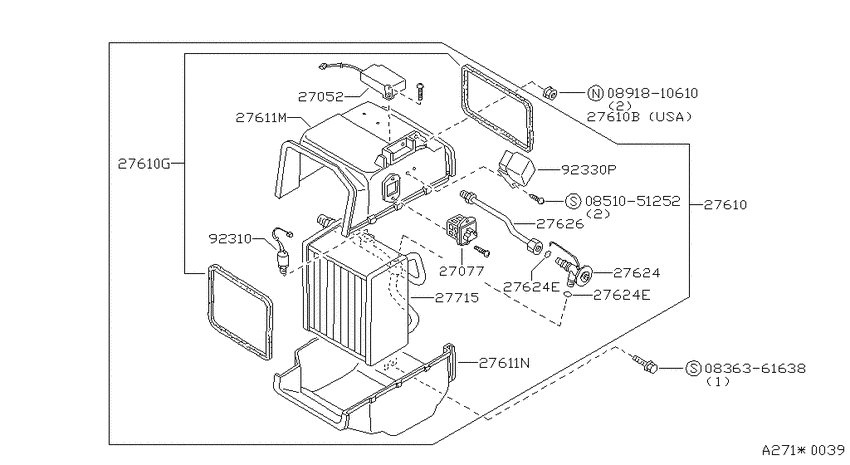

Cooling unit (1983-10-01 ~ ; ALL) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0851051252
|
0851051252
08510-51252
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51252 |
— | ||
|
0891810610
|
0891810610
08918-10610 NUTHEX |
08918-10610 |
US $0.50 |
||
|
27052
|
27052
92315-01E00 SWITCH-THERMO1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
92315-01E00 |
US $98.64 |
||
|
27077
|
27077
27150-06F00
Resistance-Electric
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27150-06F00 |
— | ||
|
27610
|
27610
27270-06F02
Cooling Unit Assy
1983-10-01 ~ 1984-11-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27270-06F02 |
— | ||
|
27610
|
27610
27270-06F03
Cooling Unit Assy
1984-11-01 ~ 1987-08-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27270-06F03 |
— | ||
|
27610
|
27610
27270-32F00
Cooling Unit Assy
1987-08-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27270-32F00 |
— | ||
|
27610
|
27610
27287-06F25
Seal
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27287-06F25 |
— | ||
|
27610
|
27610
21493-07F00
Resistance-Electric
1985-08-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/MOTOR FAN F/AIR CON-STD TYPE |
21493-07F00 |
— | ||
|
27610G
|
27610G
27287-06F25
Seal
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27287-06F25 |
— | ||
|
27611M
|
27611M
27285-06F00
Case-Cooling Unit
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27285-06F00 |
— | ||
|
27611N
|
27611N
27286-06F00
Case-Cooling Unit
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27286-06F00 |
— | ||
|
27624
|
27624
92200-01E00 VALVE ASSY-EXPANSION1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
92200-01E00 |
US $159.84 |
||
|
27624
|
27624
92200-F5001 Valve Assy-Expansion1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
92200-F5001 |
US $159.84 |
||
|
27624
|
27624
92470-N8200
O Ring
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470-N8200 |
— | ||
| replacement | |||||
|
27624
|
27624
92470N8210 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470N8210 |
from US $0.98 |
||
|
27624
|
27624
92471N8200 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=12,T=1.72 F/AIR CON-STD TYPE |
92471N8200 |
from US $1.13 |
||
|
27624
|
27624
92472N8200 Seal-O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=6,T=1.4 F/AIR CON-STD TYPE |
92472N8200 |
US $1.13 |
||
|
27624E
|
27624E
92470-N8200
O Ring
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470-N8200 |
— | ||
| replacement | |||||
|
27624E
|
27624E
92470N8210 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470N8210 |
from US $0.98 |
||
|
27624E
|
27624E
92471N8200 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=12,T=1.72 F/AIR CON-STD TYPE |
92471N8200 |
from US $1.13 |
||
|
27624E
|
27624E
92472N8200 Seal-O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=6,T=1.4 F/AIR CON-STD TYPE |
92472N8200 |
US $1.13 |
||
|
27624E
|
27624E
92470-N8200
O Ring
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470-N8200 |
— | ||
| replacement | |||||
|
27624E
|
27624E
92470N8210 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=8,T=1.78 F/AIR CON-STD TYPE |
92470N8210 |
from US $0.98 |
||
|
27624E
|
27624E
92471N8200 O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=12,T=1.72 F/AIR CON-STD TYPE |
92471N8200 |
from US $1.13 |
||
|
27624E
|
27624E
92472N8200 Seal-O Ring1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; D=6,T=1.4 F/AIR CON-STD TYPE |
92472N8200 |
US $1.13 |
||
|
27626
|
27626
92429-06F00
Tube-Evaporator Inlet
1983-10-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
92429-06F00 |
— | ||
|
27715
|
27715
27280-06F00
Evaporator-Rear Cooler
1983-10-01 ~ 1987-08-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27280-06F00 |
— | ||
|
27715
|
27715
27280-32F00
Evaporator-Rear Cooler
1987-08-01 ~ ; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27280-32F00 |
— | ||
|
92310
|
92310
92310-06F00
Switch assy-super heat
1983-10-01 ~ 1984-11-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
92310-06F00 |
— | ||
|
92330P
|
92330P
27295-06F00
Timer assy-super heat
1983-10-01 ~ 1984-11-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27295-06F00 |
— | ||
|
92330P
|
92330P
27296-06F00
Timer assy-super heat
1983-10-01 ~ 1984-11-01; *FED.C +*FED.HB +*CAL.C +*CAL.HB; F/AIR CON-STD TYPE |
27296-06F00 |
— | ||
