Governor,power train & planetary gear (1983-10-01 ~ ; FRONT; AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0092224010	0092224010 00922-24010 ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ	00922-24010	—
0812061228	0812061228 0812061228 Bolt-hexagon	0812061228	from US $2.21
31321	31321 31321-X8653 Case-Overdrive 1983-10-01 ~ 1985-05-01; CA20E.AT; ,	31321-X8653	US $337.01
31321	31321 31321-X8656 Case-Overdrive 1985-05-01 ~ ; CA20E.AT; ,	31321-X8656	US $279.36
31321	31321 31363-X0100 Seal-Lathe Cut Ring 1983-10-01 ~ ; AT; ,	31363-X0100	US $4.75
31321	31321 31679-X8600 Valve Assy-One Way Overdrive Case 1983-10-01 ~ ; AT; ,	31679-X8600	US $4.18
31321	31321 32720-36900 Ball-Steel 1983-10-01 ~ ; AT; ,	32720-36900	US $0.82
31321	31321 21644-V2700 Bracket-Oil Cooler Tube 1983-10-01 ~ ; AT; ,	21644-V2700	US $17.86
31321	31321 31356-X8600 Valve Assy-One Way Overdrive Case 1983-10-01 ~ ; AT; ,	31356-X8600	US $1.73
31321E	31321E 31363-X0100 Seal-Lathe Cut Ring 1983-10-01 ~ ; AT; ,	31363-X0100	US $4.75
31321F	31321F 31679-X8600 Valve Assy-One Way Overdrive Case 1983-10-01 ~ ; AT; ,	31679-X8600	US $4.18
31321G	31321G 32720-36900 Ball-Steel 1983-10-01 ~ ; AT; ,	32720-36900	US $0.82
31321H	31321H 21644-V2700 Bracket-Oil Cooler Tube 1983-10-01 ~ ; AT; ,	21644-V2700	US $17.86
31321J	31321J 31356-X8600 Valve Assy-One Way Overdrive Case 1983-10-01 ~ ; AT; ,	31356-X8600	US $1.73
31324	31324 31324-X8600 Gasket-Drum Support, Front 1983-10-01 ~ ; AT; ,	31324-X8600	US $4.18
31384	31384 31384-X8580 Support Assy-Drum 1986-04-01 ~ ; CA20E.AT; ,	31384-X8580	US $264.96
31384	31384 31384-X8602 Support Assy-Drum 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31384-X8602	US $264.96
31384	31384 31389-X8600 Bolt-Drum Support 1983-10-01 ~ ; AT; ,	31389-X8600	US $0.86
31384	31384 31853-X8600 Plug-Lubrication 1983-10-01 ~ 1987-05-01; AT; ,	31853-X8600	US $1.73
31384	31384 31853-X8601 Plug-Lubrication 1987-05-01 ~ ; AT; ,	31853-X8601	US $1.73
31384	31384 31361-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31361-X8600	US $7.49
31384	31384 31362-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31362-X8600	US $7.49
31384A	31384A 31389-X8600 Bolt-Drum Support 1983-10-01 ~ ; AT; ,	31389-X8600	US $0.86
31384D	31384D 31853-X8600 Plug-Lubrication 1983-10-01 ~ 1987-05-01; AT; ,	31853-X8600	US $1.73
31384D	31384D 31853-X8601 Plug-Lubrication 1987-05-01 ~ ; AT; ,	31853-X8601	US $1.73
31384E	31384E 31361-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31361-X8600	US $7.49
31384E	31384E 31361-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31361-X8600	US $7.49
31384E	31384E 31361-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31361-X8600	US $7.49
31384E	31384E 31361-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31361-X8600	US $7.49
31384F	31384F 31362-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31362-X8600	US $7.49
31384F	31384F 31362-X8600 Ring-Seal 1983-10-01 ~ ; AT; ,	31362-X8600	US $7.49
31387	31387 31387-X8600 Gasket-Oil Pump 1983-10-01 ~ ; AT; ,	31387-X8600	US $4.18
	replacement
31387	31387 31387-X8601 Gasket-Oil Pump 1983-10-01 ~ ; AT; ,	31387-X8601	US $4.18
31416	31416 31416-X8600 Shaft-Intermediate 1983-10-01 ~ ; CA20E.AT; ,	31416-X8600	US $42.62
31420	31420 31420-X6100 Carrier Assy-Front Planet 1983-10-01 ~ ; CA20E.AT; ,	31420-X6100	US $167.04
31428M	31428M 31428-X0100 Bearing-Needle, Thrust 1983-10-01 ~ ; CA20E.AT; ,	31428-X0100	US $12.96
31428N	31428N 31428-X0100 Bearing-Needle, Thrust 1983-10-01 ~ ; AT; ,	31428-X0100	US $12.96
31429	31429 31429-X0100 Race-Bearing, Sun Gear 1983-10-01 ~ ; AT; ,	31429-X0100	US $4.18
31431M	31431M 31431-X0100 Gear-Internal 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31431-X0100	—
31431M	31431M 31431-X8500 Gear-Internal, Overdrive 1986-04-01 ~ ; CA20E.AT; ,	31431-X8500	US $30.96
31431N	31431N 31431-X0100 Gear-Internal 1983-10-01 ~ ; AT; ,	31431-X0100	—
31433M	31433M 31433-X0100 Ring-Snap, Internal Drive Flange 1983-10-01 ~ ; AT; ,	31433-X0100	US $5.18
31433N	31433N 31433-X0100 Ring-Snap, Internal Drive Flange 1983-10-01 ~ ; AT; ,	31433-X0100	US $5.18
31435N	31435N 31435-X0100 Bearing-Needle, Thrust 1983-10-01 ~ 1985-10-01; AT; ,	31435-X0100	US $10.80
31435N	31435N 31435-X0101 Bearing-Needle, Thrust 1985-10-01 ~ ; AT; ,	31435-X0101	US $9.22
31435N	31435N 31435-X0100 Bearing-Needle, Thrust 1983-10-01 ~ 1985-10-01; AT; ,	31435-X0100	US $10.80
31435N	31435N 31435-X0101 Bearing-Needle, Thrust 1985-10-01 ~ ; AT; ,	31435-X0101	US $9.22
31435N	31435N 31435-X0100 Bearing-Needle, Thrust 1983-10-01 ~ 1985-10-01; AT; ,	31435-X0100	US $10.80
31435N	31435N 31435-X0101 Bearing-Needle, Thrust 1985-10-01 ~ ; AT; ,	31435-X0101	US $9.22
31435N	31435N 31435-X0100 Bearing-Needle, Thrust 1983-10-01 ~ 1985-10-01; AT; ,	31435-X0100	US $10.80
31435N	31435N 31435-X0101 Bearing-Needle, Thrust 1985-10-01 ~ ; AT; ,	31435-X0101	US $9.22
31435Q	31435Q 31435-X0100 Bearing-Needle, Thrust 1983-10-01 ~ ; AT; ,	31435-X0100	US $10.80
31436N	31436N 31436-X0100 Race-Bearing 1983-10-01 ~ 1985-10-01; AT; (A)	31436-X0100	—
31436N	31436N 31436-X0100 Race-Bearing 1983-10-01 ~ 1985-10-01; AT; (A)	31436-X0100	—
31436P	31436P 31436-X0100 Race-Bearing 1983-10-01 ~ ; AT; ,	31436-X0100	—
31438N	31438N 31438-X0100 Bearing-Needle, Thrust 1983-10-01 ~ ; AT; ,	31438-X0100	US $13.10
31460	31460 31460-X6100 Gear Assy-Sun 1983-10-01 ~ ; CA20E.AT; ,	31460-X6100	US $110.88
31465	31465 31465-X6100 Shell-Connecting 1983-10-01 ~ ; CA20E.AT; ,	31465-X6100	US $28.01
31467	31467 31467-X6100 Ring-Snap 1983-10-01 ~ ; CA20E.AT; ,	31467-X6100	US $1.73
31528	31528 31528-X0100 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.9	31528-X0100	US $6.05
	replacement
31528	31528 31508-X0103 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.9	31508-X0103	US $6.05
31528	31528 31528-X0101 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.1	31528-X0101	US $6.05
	replacement
31528	31528 31508-X0104 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.1	31508-X0104	US $6.05
31528	31528 31528-X0102 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.3	31528-X0102	US $6.05
	replacement
31528	31528 31508-X0105 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.3	31508-X0105	US $6.05
31528	31528 31528-X0103 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.5	31528-X0103	US $6.05
	replacement
31528	31528 31508-X0106 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.5	31508-X0106	US $6.05
31528	31528 31528-X0104 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.7	31528-X0104	US $6.05
	replacement
31528	31528 31508-X0107 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.7	31508-X0107	US $6.05
31528	31528 31528-X0105 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1,5	31528-X0105	US $6.05
	replacement
31528	31528 31508-X0101 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1,5	31508-X0101	US $6.05
31528	31528 31528-X0106 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.7	31528-X0106	US $6.05
	replacement
31528	31528 31508-X0102 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.7	31508-X0102	US $6.05
31528	31528 31528-X0107 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.3	31528-X0107	US $6.05
	replacement
31528	31528 31508-X0100 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.3	31508-X0100	US $6.05
31528	31528 31528-X0100 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.9	31528-X0100	US $6.05
	replacement
31528	31528 31508-X0103 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.9	31508-X0103	US $6.05
31528	31528 31528-X0101 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.1	31528-X0101	US $6.05
	replacement
31528	31528 31508-X0104 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.1	31508-X0104	US $6.05
31528	31528 31528-X0102 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.3	31528-X0102	US $6.05
	replacement
31528	31528 31508-X0105 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.3	31508-X0105	US $6.05
31528	31528 31528-X0103 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.5	31528-X0103	US $6.05
	replacement
31528	31528 31508-X0106 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.5	31508-X0106	US $6.05
31528	31528 31528-X0104 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.7	31528-X0104	US $6.05
	replacement
31528	31528 31508-X0107 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=2.7	31508-X0107	US $6.05
31528	31528 31528-X0105 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1,5	31528-X0105	US $6.05
	replacement
31528	31528 31508-X0101 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1,5	31508-X0101	US $6.05
31528	31528 31528-X0106 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.7	31528-X0106	US $6.05
	replacement
31528	31528 31508-X0102 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.7	31508-X0102	US $6.05
31528	31528 31528-X0107 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.3	31528-X0107	US $6.05
	replacement
31528	31528 31508-X0100 Washer-Thrust 1983-10-01 ~ ; AT; SELECT T=1.3	31508-X0100	US $6.05
31553	31553 31553-X0100 Hub-Rear Clutch 1983-10-01 ~ ; AT; ,	31553-X0100	US $40.61
31555M	31555M 31555-X0100 Bearing-Needle, Thrust 1983-10-01 ~ ; AT; ,	31555-X0100	US $6.19
31556M	31556M 31556-X0100 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.2	31556-X0100	US $2.45
31556M	31556M 31556-X0101 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.4	31556-X0101	US $2.45
31556M	31556M 31556-X0102 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.6	31556-X0102	US $2.45
31556M	31556M 31556-X0103 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.8	31556-X0103	US $2.45
31556M	31556M 31556-X0104 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=2.0	31556-X0104	US $2.45
31556M	31556M 31556-X0105 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=2.2	31556-X0105	US $2.45
31556M	31556M 31556-X0100 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.2	31556-X0100	US $2.45
31556M	31556M 31556-X0101 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.4	31556-X0101	US $2.45
31556M	31556M 31556-X0102 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.6	31556-X0102	US $2.45
31556M	31556M 31556-X0103 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=1.8	31556-X0103	US $2.45
31556M	31556M 31556-X0104 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=2.0	31556-X0104	US $2.45
31556M	31556M 31556-X0105 Race-Bearing, Pump Cover 1983-10-01 ~ ; AT; SELECT T=2.2	31556-X0105	US $2.45
31579	31579 31579-X8070 Sleeve-Seal 1986-04-01 ~ ; CA20E.AT; ,	31579-X8070	US $5.18
31580	31580 31580-X8600 Carrier Assy-Overdrive Planet 1983-10-01 ~ ; CA20E.AT; ,	31580-X8600	—
31585	31585 31585-X8600 Race-Bearing, Overdrive Carrier 1983-10-01 ~ ; CA20E.AT; ,	31585-X8600	US $4.18
31590	31590 31590-X8600 Gear Assy-Sun, Overdrive 1983-10-01 ~ ; CA20E.AT; ,	31590-X8600	US $78.77
31595	31595 31595-X8600 Shell-Connecting Overdrive 1983-10-01 ~ ; AT; ,	31595-X8600	US $28.51
31597	31597 31597-X8600 Ring-Snap, Overdrive Sun Gear 1983-10-01 ~ ; AT; ,	31597-X8600	US $1.73
31602	31602 31602-X8500 Hub-Direct Clutch 1986-04-01 ~ ; CA20E.AT; ,	31602-X8500	US $74.74
31602	31602 31602-X8600 Hub-Direct Clutch 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31602-X8600	US $74.74
31603	31603 31603-X8600 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=1.2	31603-X8600	US $4.18
31603	31603 31603-X8601 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=1.4	31603-X8601	US $4.18
31603	31603 31603-X8602 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=1.6	31603-X8602	US $4.18
31603	31603 31603-X8603 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=1.8	31603-X8603	US $4.18
31603	31603 31603-X8604 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=2.0	31603-X8604	US $4.18
31603	31603 31603-X8605 Race-Bearing, Direct Clutch Hub 1983-10-01 ~ ; AT; SELECT T=2.2	31603-X8605	US $4.18
31671M	31671M 31671-X8610 Piston-Accumulator, Overdrive Case 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31671-X8610	US $17.86
31671M	31671M 31671-X8682 Piston-Accumulator, Overdrive Case 1986-04-01 ~ ; CA20E.AT; ,	31671-X8682	US $17.86
31672	31672 31672-X8600 Ring-Seal, Overdrive Accumulator Piston 1983-10-01 ~ ; AT; ,	31672-X8600	US $6.19
31673	31673 31673-X8610 Ring-Seal, Overdrive Accumulator Piston 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31673-X8610	US $6.19
31673	31673 31673-X8682 Ring-Seal, Overdrive Accumulator Piston 1986-04-01 ~ ; CA20E.AT; ,	31673-X8682	US $6.19
31674P	31674P 31620-X8501 Spring-Cushion, Band Servo 1986-04-01 ~ ; CA20E.AT; ,	31620-X8501	US $3.46
31674P	31674P 31674-X8601 Spring-Accumulator Servo 1983-10-01 ~ 1986-04-01; CA20E.AT; ,	31674-X8601	US $1.73
31675M	31675M 31675-X8600 Spacer-Accumulator 1985-08-01 ~ ; AT; ,	31675-X8600	US $30.82
31676	31676 31676-X8600 Plug-Accumulator, Overdrive 1983-10-01 ~ ; AT; ,	31676-X8600	US $6.91
31676	31676 31677-X8600 Seal-O Ring, Overdrive Accumulator Plug 1983-10-01 ~ ; AT; ,	31677-X8600	US $6.91
31676E	31676E 31677-X8600 Seal-O Ring, Overdrive Accumulator Plug 1983-10-01 ~ ; AT; ,	31677-X8600	US $6.91

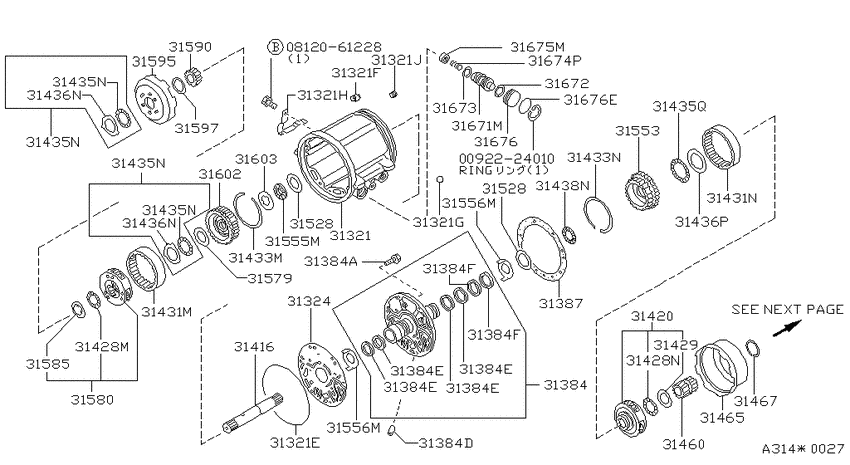

Governor,power train & planetary gear (1983-10-01 ~ ; FRONT; AT) Diagram Nissan 200SX U.S.A. 2306696-182302

Governor,power train & planetary gear (1983-10-01 ~ ; FRONT; AT) Diagram Nissan 200SX U.S.A. 2306696-182302
