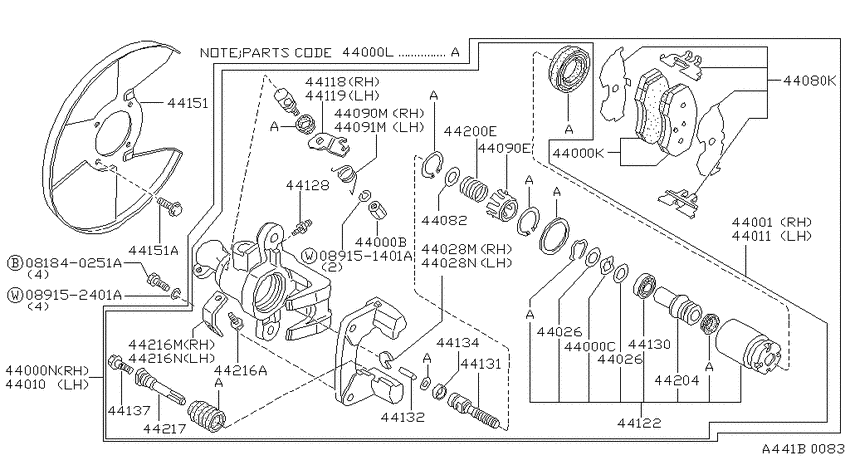

Rear brake (1983-10-01 ~ ; DISK; ALL) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081840251A
|
081840251A
08184-0251A
Bolt-hexagon
|
08184-0251A |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000B
|
44000B
44149-P6500
Nut
1984-11-01 ~ ; CA20E; , |
44149-P6500 |
— | ||
| replacement | |||||
|
44000B
|
44000B
44149-AW70A Nut1984-11-01 ~ ; CA20E; , |
44149-AW70A |
US $4.71 |
||
|
44000C
|
44000C
44139-P6500 Washer1984-11-01 ~ ; CA20E; , |
44139-P6500 |
US $2.45 |
||
|
44000K
|
44000K
44060-01P90 Pad Kit-Disc Brake1984-11-01 ~ 1987-09-01; CA20E; , |
44060-01P90 |
US $90.72 |
||
| replacement | |||||
|
44000K
|
44000K
440609V590 PAD KITDISC1984-11-01 ~ 1987-09-01; CA20E; , |
440609V590 |
US $103.01 |
||
|
44000K
|
44000K
44060-35F91 Pad Kit-Disc Brake1987-09-01 ~ 1988-11-01; CA20E +VG30E; , |
44060-35F91 |
US $62.21 |
||
| replacement | |||||
|
44000K
|
44000K
440609V590 PAD KITDISC1987-09-01 ~ 1988-11-01; CA20E +VG30E; , |
440609V590 |
US $103.01 |
||
|
44000K
|
44000K
D4060-01P90
Pad kit-disc brake
1988-11-01 ~ ; CA20E +VG30E; , |
D4060-01P90 |
— | ||
| replacement | |||||
|
44000K
|
44000K
440609V590 PAD KITDISC1988-11-01 ~ ; CA20E +VG30E; , |
440609V590 |
US $103.01 |
||
|
44000L
|
44000L
44120-N9526
Seal Kit-Disc Brake
1984-11-01 ~ ; CA20E; , |
44120-N9526 |
— | ||
| replacement | |||||
|
44000L
|
44000L
44120-N9585
Seal kit-disc brake
1984-11-01 ~ ; CA20E; , |
44120-N9585 |
— | ||
|
44000L
|
44000L
44120-N9527
Seal Kit-Disc Brake
1984-11-01 ~ ; CA20E; , |
44120-N9527 |
— | ||
| replacement | |||||
|
44000L
|
44000L
44120-N9585
Seal kit-disc brake
1984-11-01 ~ ; CA20E; , |
44120-N9585 |
— | ||
|
44000N
|
44000N
44000-07F00
ﾌﾞﾚ-ｷ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ rh
1984-11-01 ~ 1986-07-01; CA20E; , |
44000-07F00 |
— | ||
|
44001
|
44001
44001-07F90 ｷﾔﾘﾊﾟ- ｱﾂｾﾝﾌﾞﾘ,ﾘﾔ rh ｳｲｽﾞｱｳﾄ ﾊﾟﾂﾄﾞ ｵｱ ｼﾑ1983-10-01 ~ ; CA18ET +CA20E; , |
44001-07F90 |
US $502.68 |
||
| replacement | |||||
|
44001
|
44001
D4001-07F90
Caliper assy-rear rh,w/o pads or shims
1983-10-01 ~ ; CA18ET +CA20E; , |
D4001-07F90 |
— | ||
|
44010
|
44010
44010-07F00 ﾌﾞﾚ-ｷ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ lh1984-11-01 ~ 1986-07-01; CA20E; , |
44010-07F00 |
US $635.78 |
||
| replacement | |||||
|
44010
|
44010
D4011-07F90
Caliper assy-rear lh,w/o pads or shims
1984-11-01 ~ 1986-07-01; CA20E; , |
D4011-07F90 |
— | ||
|
44010
|
44010
44010-06F10
Brake assy-drum,rear lh
1983-10-01 ~ 1984-11-01; CA20E; , |
44010-06F10 |
— | ||
|
44011
|
44011
44011-07F90 ｷﾔﾘﾊﾟ- ｱﾂｾﾝﾌﾞﾘ,ﾘﾔ lh ｳｲｽﾞｱｳﾄ ﾊﾟﾂﾄﾞ ｵｱ ｼﾑ1983-10-01 ~ ; CA18ET +CA20E; , |
44011-07F90 |
US $502.68 |
||
| replacement | |||||
|
44011
|
44011
D4011-07F90
Caliper assy-rear lh,w/o pads or shims
1983-10-01 ~ ; CA18ET +CA20E; , |
D4011-07F90 |
— | ||
|
44026
|
44026
44133-N9502 Spacer-Adjusting1984-11-01 ~ ; CA20E; , |
44133-N9502 |
US $2.45 |
||
|
44026
|
44026
44133-N9502 Spacer-Adjusting1984-11-01 ~ ; CA20E; , |
44133-N9502 |
US $2.45 |
||
|
44028M
|
44028M
44142-44B00 Cam-Adjusting, Rear Brake1984-11-01 ~ ; CA20E; , |
44142-44B00 |
US $36.03 |
||
|
44028M
|
44028M
44142-N9502
Cam-Adjusting, Rear Brake
1984-11-01 ~ ; CA20E; , |
44142-N9502 |
— | ||
| replacement | |||||
|
44028M
|
44028M
44142-44B00 Cam-Adjusting, Rear Brake1984-11-01 ~ ; CA20E; , |
44142-44B00 |
US $36.03 |
||
|
44028N
|
44028N
44143-44B00 Cam-Adjusting, Rear Brake1984-11-01 ~ ; CA20E; , |
44143-44B00 |
US $36.03 |
||
|
44028N
|
44028N
44143-N9502
Cam-Adjusting, Rear Brake
1984-11-01 ~ ; CA20E; , |
44143-N9502 |
— | ||
| replacement | |||||
|
44028N
|
44028N
44143-44B00 Cam-Adjusting, Rear Brake1984-11-01 ~ ; CA20E; , |
44143-44B00 |
US $36.03 |
||
|
44080K
|
44080K
44080-01P25 ﾊ-ﾄﾞｳｴｱ- ｷﾂﾄ,ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾊﾟﾂﾄﾞ1984-11-01 ~ ; CA20E; , |
44080-01P25 |
US $30.24 |
||
|
44082
|
44082
44082-U9200
Seat-Spring
1983-10-01 ~ 1984-11-01; CA20E; , |
44082-U9200 |
— | ||
| replacement | |||||
|
44082
|
44082
44082U920A Seat-Spring1983-10-01 ~ 1984-11-01; CA20E; , |
44082U920A |
from US $2.64 |
||
|
44082
|
44082
44146N9500 Seat-Spring1984-11-01 ~ ; CA20E; , |
44146N9500 |
US $5.04 |
||
|
44090E
|
44090E
44081N9500 Cover-Spring1984-11-01 ~ ; CA20E; , |
44081N9500 |
US $3.02 |
||
|
44090M
|
44090M
44090-07F00
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀ-ﾝ rh
1984-11-01 ~ ; CA20E; , |
44090-07F00 |
— | ||
|
44091M
|
44091M
44091-07F00
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀ-ﾝ lh
1984-11-01 ~ ; CA20E; , |
44091-07F00 |
— | ||
|
44118
|
44118
44095-07F00 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,rh1984-11-01 ~ ; CA20E; , |
44095-07F00 |
US $30.24 |
||
|
44119
|
44119
44096-07F00 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,lh1984-11-01 ~ ; CA20E; , |
44096-07F00 |
US $31.10 |
||
|
44122
|
44122
44123N9502 Piston1984-11-01 ~ ; CA20E; , |
44123N9502 |
US $123.84 |
||
|
44128
|
44128
41128-21010
Screw-Bleeder
1984-11-01 ~ ; CA20E; , |
41128-21010 |
— | ||
|
44128
|
44128
41128-B5012 Screw-Bleeder1983-10-01 ~ 1984-11-01; CA20E; TOKICO |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U0201
Screw
1983-10-01 ~ 1984-11-01; CA20E; NABCO |
41128-U0201 |
— | ||
|
44128
|
44128
41128-V5510
Screw-Bleeder
1984-11-01 ~ ; CA20E; , |
41128-V5510 |
— | ||
|
44130
|
44130
44130-P6500 Bearing1984-11-01 ~ ; CA20E; , |
44130-P6500 |
US $11.09 |
||
|
44131
|
44131
44134-N9500 Rod-Push1984-11-01 ~ ; CA20E; , |
44134-N9500 |
US $15.98 |
||
|
44132
|
44132
44132N9500 Strut1984-11-01 ~ ; CA20E; , |
44132N9500 |
US $9.15 |
||
|
44134
|
44134
44131-N9500 Plate1984-11-01 ~ ; CA20E; , |
44131-N9500 |
US $2.45 |
||
|
44137
|
44137
44141-N9500
Pin-Bolt
1984-11-01 ~ ; CA20E; , |
44141-N9500 |
— | ||
| replacement | |||||
|
44137
|
44137
44141AW70A Pin-Bolt1984-11-01 ~ ; CA20E; , |
44141AW70A |
from US $3.35 |
||
|
44151
|
44151
44151-01P01 ﾌﾟﾚ-ﾄ,ﾊﾞﾂﾌﾙ1984-11-01 ~ ; CA20E; , |
44151-01P01 |
US $36.86 |
||
|
44151
|
44151
0141100131 BOLT1984-11-01 ~ ; CA20E; , |
0141100131 |
US $1.73 |
||
|
44151A
|
44151A
0141100131 BOLT1984-11-01 ~ ; CA20E; , |
0141100131 |
US $1.73 |
||
|
44200E
|
44200E
44147N9500 Spring1984-11-01 ~ ; CA20E; , |
44147N9500 |
US $5.04 |
||
|
44204
|
44204
44128-P6500 Nut-Adjuster1984-11-01 ~ ; CA20E; , |
44128-P6500 |
US $40.46 |
||
|
44216A
|
44216A
44252-01P04 Bolt1984-11-01 ~ ; CA20E; , |
44252-01P04 |
US $5.76 |
||
|
44216M
|
44216M
44195-07F00 ｶﾞｲﾄﾞ,ｱｼﾞﾔｽﾄ ｹ-ﾌﾞﾙ rh1984-11-01 ~ ; CA20E; , |
44195-07F00 |
US $21.02 |
||
|
44216N
|
44216N
44196-07F00 ｶﾞｲﾄﾞ,ｱｼﾞﾔｽﾄ ｹ-ﾌﾞﾙ lh1984-11-01 ~ ; CA20E; , |
44196-07F00 |
US $21.02 |
||
|
44217
|
44217
44140N9500 Pin-Lock1984-11-01 ~ ; CA20E; , |
44140N9500 |
from US $8.45 |
||
