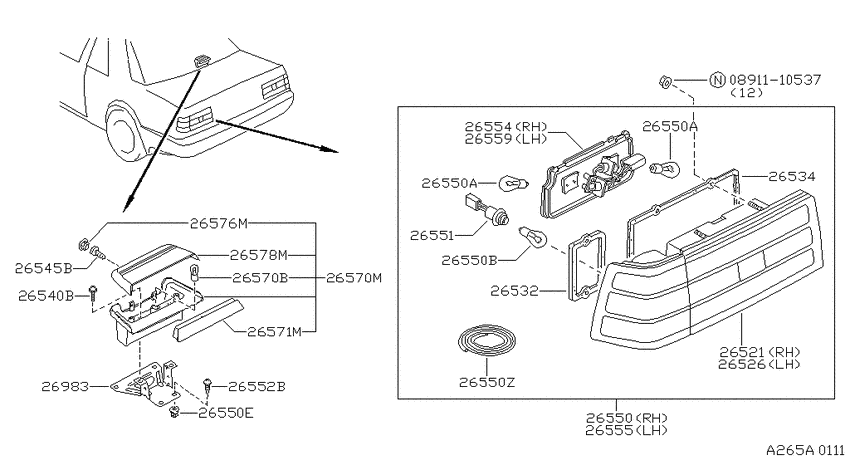

Rear combination lamp (1983-10-01 ~ ; COUPE) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
26521
|
26521
26520-32F00
Lens-Combination Lamp, Rh
1986-07-01 ~ 1987-07-01; FED.C +CAL.C; , |
26520-32F00 |
— | ||
|
26521
|
26521
26520-32F02
Lens-Combination Lamp, Rh
1987-07-01 ~ ; FED.C +CAL.C; , |
26520-32F02 |
— | ||
|
26521
|
26521
26554-06F01
Lens-Combination Lamp, Rh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26554-06F01 |
— | ||
|
26526
|
26526
26525-32F00
Lens-Combination Lamp, Lh
1986-07-01 ~ 1987-07-01; FED.C +CAL.C; , |
26525-32F00 |
— | ||
|
26526
|
26526
26525-32F02
Lens-Combination Lamp, Lh
1987-07-01 ~ ; FED.C +CAL.C; , |
26525-32F02 |
— | ||
|
26526
|
26526
26559-06F01
Lens-Combination Lamp, Lh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26559-06F01 |
— | ||
|
26532
|
26532
26553-01F01 Packing-Sheet, Rh1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26553-01F01 |
US $5.33 |
||
|
26532
|
26532
26553-30F00
Packing-Sheet, Rh
1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
26553-30F00 |
— | ||
|
26532
|
26532
26553D5500 Packing-Lamp1986-07-01 ~ ; FED.C +CAL.C; NO.2 |
26553D5500 |
US $3.74 |
||
|
26534
|
26534
26553-01F10 Packing-Sheet, Rh1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26553-01F10 |
US $6.48 |
||
|
26534
|
26534
26553-30F00
Packing-Sheet, Rh
1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
26553-30F00 |
— | ||
|
26534
|
26534
26553D5500 Packing-Lamp1986-07-01 ~ ; FED.C +CAL.C; NO.2 |
26553D5500 |
US $3.74 |
||
|
26540B
|
26540B
08313-52098
SCREW
1985-08-01 ~ ; FED.C +CAL.C; , |
08313-52098 |
— | ||
| replacement | |||||
|
26540B
|
26540B
08310-52098
Screw
1985-08-01 ~ ; FED.C +CAL.C; , |
08310-52098 |
— | ||
|
26545B
|
26545B
08510-41242
SCREW
1985-08-01 ~ ; FED.C +CAL.C; , |
08510-41242 |
— | ||
|
26550
|
26550
26550-06F01
Combination Lamp Assy-Rear, Rh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26550-06F01 |
— | ||
|
26550
|
26550
26550-32F02
Combination Lamp Assy-Rear, Rh
1987-07-01 ~ ; FED.C +CAL.C; , |
26550-32F02 |
— | ||
|
26550
|
26550
B6550-32F01
Combination Lamp Assy-Rear, Rh
1986-07-01 ~ 1987-07-01; FED.C +CAL.C; , |
B6550-32F01 |
— | ||
|
26550
|
26550
26717-89970 Bulb1983-10-01 ~ ; FED.C +CAL.C; 12V-27/8W |
26717-89970 |
US $8.08 |
||
|
26550
|
26550
26717-89950
Bulb
1983-10-01 ~ ; FED.C +CAL.C; 12V-27W |
26717-89950 |
— | ||
|
26550
|
26550
90895-H9300 Grommet-Screw1985-08-01 ~ ; FED.C.GL +CAL.C.GL; , |
90895-H9300 |
US $1.87 |
||
|
26550
|
26550
B655389915
Sealer-Rear Combination Lamp
1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
B655389915 |
— | ||
| replacement | |||||
|
26550
|
26550
B6EEC89915 SEALERREAR COM1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
B6EEC89915 |
from US $35.91 |
||
|
26550A
|
26550A
26717-89970 Bulb1983-10-01 ~ ; FED.C +CAL.C; 12V-27/8W |
26717-89970 |
US $8.08 |
||
|
26550A
|
26550A
26717-89970 Bulb1983-10-01 ~ ; FED.C +CAL.C; 12V-27/8W |
26717-89970 |
US $8.08 |
||
|
26550B
|
26550B
26717-89950
Bulb
1983-10-01 ~ ; FED.C +CAL.C; 12V-27W |
26717-89950 |
— | ||
|
26550E
|
26550E
90895-H9300 Grommet-Screw1985-08-01 ~ ; FED.C.GL +CAL.C.GL; , |
90895-H9300 |
US $1.87 |
||
|
26550Z
|
26550Z
B655389915
Sealer-Rear Combination Lamp
1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
B655389915 |
— | ||
| replacement | |||||
|
26550Z
|
26550Z
B6EEC89915 SEALERREAR COM1986-07-01 ~ ; FED.C +CAL.C; NO.1 |
B6EEC89915 |
from US $35.91 |
||
|
26551
|
26551
26551-01F01 Harness Assy-Rear Combination1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26551-01F01 |
US $28.37 |
||
|
26551
|
26551
26551-32F00
Harness-Sub, Rear Combination Lamp
1986-07-01 ~ ; FED.C +CAL.C; , |
26551-32F00 |
— | ||
|
26552B
|
26552B
08510-62012
SCREW
1985-08-01 ~ ; FED.C +CAL.C; , |
08510-62012 |
— | ||
|
26554
|
26554
26551-06F01
Body Assy-Rear Combination Lamp, Rh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26551-06F01 |
— | ||
|
26555
|
26555
26555-06F01
Combination Lamp Assy-Rear, Lh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26555-06F01 |
— | ||
|
26555
|
26555
26555-32F02
Combination Lamp Assy-Rear, Lh
1987-07-01 ~ ; FED.C +CAL.C; , |
26555-32F02 |
— | ||
|
26555
|
26555
B6555-32F01
Combination Lamp Assy-Rear, Lh
1986-07-01 ~ 1987-07-01; FED.C +CAL.C; , |
B6555-32F01 |
— | ||
|
26559
|
26559
26556-06F01
Body Assy-Rear Combination Lamp, Lh
1983-10-01 ~ 1986-07-01; FED.C +CAL.C; , |
26556-06F01 |
— | ||
|
26570B
|
26570B
26717-89950
Bulb
1985-08-01 ~ ; FED.C +CAL.C; , |
26717-89950 |
— | ||
|
26570M
|
26570M
26590-06F00
Stop Lamp Assy-High Mounting
1985-08-01 ~ 1986-07-01; FED.C +CAL.C; (G) |
26590-06F00 |
— | ||
|
26570M
|
26570M
26590-06F01
Stop Lamp Assy-High Mounting
1985-08-01 ~ ; FED.C +CAL.C; (B) |
26590-06F01 |
— | ||
|
26570M
|
26570M
26590-06F02
Stop Lamp Assy-High Mounting
1985-08-01 ~ ; FED.C +CAL.C; (K) |
26590-06F02 |
— | ||
|
26571M
|
26571M
26591-36A02
Lens-Stop Lamp
1985-08-01 ~ ; FED.C +CAL.C; , |
26591-36A02 |
— | ||
|
26576M
|
26576M
26596-06F00
Cap-Stop Lamp
1985-08-01 ~ 1986-07-01; FED.C +CAL.C; (G) |
26596-06F00 |
— | ||
|
26576M
|
26576M
26596-D4500
Cap-Stop Lamp
1985-08-01 ~ ; FED.C +CAL.C; (K) |
26596-D4500 |
— | ||
|
26576M
|
26576M
26596-D4501
Cap-Stop Lamp
1985-08-01 ~ ; FED.C +CAL.C; (B) |
26596-D4501 |
— | ||
|
26578M
|
26578M
26598-06F00
Cover Assy-Stop Lamp
1985-08-01 ~ 1986-07-01; FED.C +CAL.C; (G) |
26598-06F00 |
— | ||
|
26578M
|
26578M
26598-D4500
Cover Assy-Stop Lamp
1985-08-01 ~ ; FED.C +CAL.C; (K) |
26598-D4500 |
— | ||
|
26578M
|
26578M
26598-D4501
Cover Assy-Stop Lamp
1985-08-01 ~ ; FED.C +CAL.C; (B) |
26598-D4501 |
— | ||
|
26983
|
26983
26982-06F02
Gasket-Stop Lamp, High Mounting
1985-08-01 ~ ; FED.C +CAL.C; , |
26982-06F02 |
— | ||
|
26983
|
26983
26982-06F02
Gasket-Stop Lamp, High Mounting
1984-07-01 ~ ; FED.C +CAL.C; , |
26982-06F02 |
— | ||
