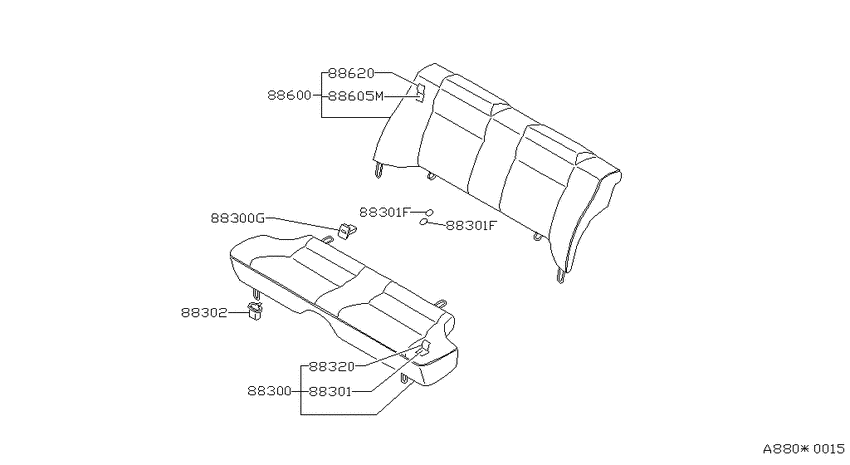

Rear seat (1983-10-01 ~ ; C) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88300
|
88300
88300-06F00
Cushion assy-rear seat
1983-10-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (K) |
88300-06F00 |
— | ||
|
88300
|
88300
88300-06F01
Cushion assy-rear seat
1983-10-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (B) |
88300-06F01 |
— | ||
|
88300
|
88300
88300-32F60
Cushion assy-rear seat
1986-07-01 ~ ; FED.C +CAL.C; (K) |
88300-32F60 |
— | ||
|
88300
|
88300
88300-32F61
Cushion assy-rear seat
1986-07-01 ~ ; FED.C +CAL.C; (B) |
88300-32F61 |
— | ||
|
88300
|
88300
88303-01F00
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
88303-01F00 |
— | ||
|
88300G
|
88300G
88303-01F00
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
88303-01F00 |
— | ||
|
88301
|
88301
88305-06F00
Frame assy-rear seat cushion
1983-10-01 ~ ; FED.C +CAL.C; W/PAD |
88305-06F00 |
— | ||
|
88301
|
88301
64891W5000 Plug-Rubber1985-08-01 ~ ; FED.C +CAL.C; , |
64891W5000 |
from US $0.80 |
||
|
88301F
|
88301F
64891W5000 Plug-Rubber1985-08-01 ~ ; FED.C +CAL.C; , |
64891W5000 |
from US $0.80 |
||
|
88301F
|
88301F
64891W5000 Plug-Rubber1985-08-01 ~ ; FED.C +CAL.C; , |
64891W5000 |
from US $0.80 |
||
|
88302
|
88302
88302-01A00 Clip1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
88302-01A00 |
US $2.08 |
||
| replacement | |||||
|
88302
|
88302
88304-01A20
Hook-Male
1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
88304-01A20 |
— | ||
|
88320
|
88320
88320-06F00
Trim assy-rear seat cushion
1983-10-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (K) |
88320-06F00 |
— | ||
|
88320
|
88320
88320-06F01
Trim assy-rear seat cushion
1983-10-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (B) |
88320-06F01 |
— | ||
|
88320
|
88320
88320-32F60
Trim assy-rear seat cushion
1986-07-01 ~ ; FED.C +CAL.C; (K) |
88320-32F60 |
— | ||
|
88320
|
88320
88320-32F61
Trim assy-rear seat cushion
1986-07-01 ~ ; FED.C +CAL.C; (B) |
88320-32F61 |
— | ||
|
88600
|
88600
88600-06F00
Back assy-rear seat
1983-10-01 ~ 1984-11-01; FED.C.GL +CAL.C.GL; (K) |
88600-06F00 |
— | ||
|
88600
|
88600
88600-06F01
Back assy-rear seat
1983-10-01 ~ 1984-11-01; FED.C.GL +CAL.C.GL; (B) |
88600-06F01 |
— | ||
|
88600
|
88600
88600-06F02
Back assy-rear seat
1984-11-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (K) |
88600-06F02 |
— | ||
|
88600
|
88600
88600-06F03
Back assy-rear seat
1984-11-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (B) |
88600-06F03 |
— | ||
|
88600
|
88600
88600-32F60
Back assy-rear seat
1986-07-01 ~ ; FED.C +CAL.C; (K) |
88600-32F60 |
— | ||
|
88600
|
88600
88600-32F61
Back assy-rear seat
1986-07-01 ~ ; FED.C +CAL.C; (B) |
88600-32F61 |
— | ||
|
88605M
|
88605M
88605-06F00
Pad & frame assy-back,rear seat
1983-10-01 ~ ; FED.C +CAL.C; W/PAD |
88605-06F00 |
— | ||
|
88620
|
88620
88620-06F00
Trim assy-rear seat back,rh
1983-10-01 ~ 1984-11-01; FED.C.GL +CAL.C.GL; (K) |
88620-06F00 |
— | ||
|
88620
|
88620
88620-06F01
Trim assy-rear seat back,rh
1983-10-01 ~ 1984-11-01; FED.C.GL +CAL.C.GL; (B) |
88620-06F01 |
— | ||
|
88620
|
88620
88620-06F02
Trim assy-rear seat back,rh
1984-11-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (K) |
88620-06F02 |
— | ||
|
88620
|
88620
88620-06F03
Trim assy-rear seat back,rh
1984-11-01 ~ 1986-07-01; FED.C.GL +CAL.C.GL; (B) |
88620-06F03 |
— | ||
|
88620
|
88620
88620-32F60
Trim assy-rear seat back,rh
1986-07-01 ~ ; FED.C +CAL.C; (K) |
88620-32F60 |
— | ||
|
88620
|
88620
88620-32F61
Trim assy-rear seat back,rh
1986-07-01 ~ ; FED.C +CAL.C; (B) |
88620-32F61 |
— | ||
