Component List 200SX
Torque converter,housing & case (1983-10-01 ~ ; AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
081308451A	081308451A 08130-8451A Bolt-hexagon	08130-8451A	—
0836362038	0836362038 0836362038 SCREWMACHINE	0836362038	—
0891134410	0891134410 08911-34410 NUT	08911-34410	—
	replacement
0891134410	0891134410 08911-3441A ﾅﾂﾄ,ﾍｸｻｺﾞﾝ	08911-3441A	—
0891543810	0891543810 08915-43810 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43810	—
31065	31065 31065-A4000 Clamp-Vacuum Tube 1983-10-01 ~ ; AT; ,	31065-A4000	US $11.23
31065	31065 31955-X8600 Bracket-Governor Tube Clip 1983-10-01 ~ ; AT; ,	31955-X8600	US $6.19
31065	31065 31956-X6300 Clip-Governor Tube 1983-10-01 ~ ; AT; ,	31956-X6300	US $2.45
31065G	31065G 31955-X8600 Bracket-Governor Tube Clip 1983-10-01 ~ ; AT; ,	31955-X8600	US $6.19
31065M	31065M 31956-X6300 Clip-Governor Tube 1983-10-01 ~ ; AT; ,	31956-X6300	US $2.45
31100	31100 31100-X8618 Converter Assy-Torque 1983-10-01 ~ 1985-08-01; CA20E.AT; ,	31100-X8618	US $1,411.75
31100	31100 31100-X8619 Converter Assy-Torque 1985-08-01 ~ ; CA20E.AT; ,	31100-X8619	US $1,411.75
31301	31301 31300-X8370 Housing-Converter 1983-10-01 ~ ; CA20E.AT; ,	31300-X8370	US $512.59
31301	31301 31309-X8600 Bolt 1983-10-01 ~ ; AT; ,	31309-X8600	US $4.18
31301	31301 31954-X6100 Seal-Oil 1983-10-01 ~ ; AT; ,	31954-X6100	US $2.45
31301A	31301A 31309-X8600 Bolt 1983-10-01 ~ ; AT; ,	31309-X8600	US $4.18
31301D	31301D 31954-X6100 Seal-Oil 1983-10-01 ~ ; AT; ,	31954-X6100	US $2.45
31310	31310 31310-X8657 Case Assy-Automatic Transmission 1983-10-01 ~ ; CA20E.AT; ,	31310-X8657	—
31310	31310 31303-X6100 Connector 1983-10-01 ~ ; AT; ,	31303-X6100	US $10.22
31310E	31310E 31303-X6100 Connector 1983-10-01 ~ ; AT; ,	31303-X6100	US $10.22
31319	31319 31319-X0100 Plug-Thread, Square Head 1983-10-01 ~ ; AT; ,	31319-X0100	US $2.45
31319	31319 31319-X0100 Plug-Thread, Square Head 1983-10-01 ~ ; AT; ,	31319-X0100	US $2.45
31319M	31319M 31319-X0100 Plug-Thread, Square Head 1983-10-01 ~ ; AT; ,	31319-X0100	US $2.45
31330	31330 31330-X8000 Extension Assy-Rear 1983-10-01 ~ 1987-05-01; AT; ,	31330-X8000	US $161.28
31330	31330 31330-X8004 Extension Assy-Rear 1987-05-01 ~ ; AT; ,	31330-X8004	US $161.28
31330	31330 24210-U7001 Clip-Harness 1983-10-01 ~ ; AT; ,	24210-U7001	US $4.18
31330E	31330E 24210-U7001 Clip-Harness 1983-10-01 ~ ; AT; ,	24210-U7001	US $4.18
31335	31335 31335-X0100 Gasket-Extension 1983-10-01 ~ ; AT; ,	31335-X0100	US $4.18
	replacement
31335	31335 31338-X0100 Gasket-Extension 1983-10-01 ~ ; AT; ,	31338-X0100	US $4.18
31336	31336 31336-X8000 Seal-Oil, Rear Extension 1983-10-01 ~ ; AT; ,	31336-X8000	US $7.63
31376	31376 31376-X0100 Ring-Snap, Low & Reverse Brake 1983-10-01 ~ ; AT; ,	31376-X0100	US $5.18
31381	31381 31381-X0100 Breather-Air 1983-10-01 ~ ; AT; ,	31381-X0100	US $2.45
	replacement
31381	31381 31381-41X0A Breather-air 1983-10-01 ~ ; AT; ,	31381-41X0A	—
31390	31390 31390-X8601 Pan Assy-Oil 1983-10-01 ~ ; AT; ,	31390-X8601	US $26.50
31390	31390 01125-01151 BOLT 1986-07-01 ~ 1987-04-01; AT; ,	01125-01151	US $1.73
31390	31390 01125-01281 BOLT 1987-04-01 ~ ; AT;	01125-01281	US $1.73
31390	31390 08160-61210 Bolt-hexagon 1983-10-01 ~ 1986-07-01; AT; ,	08160-61210	—
	replacement
31390	31390 08110-61225 Bolt-hexagon 1983-10-01 ~ 1986-07-01; AT; ,	08110-61225	—
31390	31390 21644-V3100 Bracket-Oil Cooler Tube 1983-10-01 ~ ; AT; ,	21644-V3100	US $9.94
31390A	31390A 01125-01151 BOLT 1986-07-01 ~ 1987-04-01; AT; ,	01125-01151	US $1.73
31390A	31390A 01125-01281 BOLT 1987-04-01 ~ ; AT;	01125-01281	US $1.73
31390A	31390A 08160-61210 Bolt-hexagon 1983-10-01 ~ 1986-07-01; AT; ,	08160-61210	—
	replacement
31390A	31390A 08110-61225 Bolt-hexagon 1983-10-01 ~ 1986-07-01; AT; ,	08110-61225	—
31390G	31390G 21644-V3100 Bracket-Oil Cooler Tube 1983-10-01 ~ ; AT; ,	21644-V3100	US $9.94
31397	31397 31397-X0102 Gasket-Oil Pan 1983-10-01 ~ ; AT; ,	31397-X0102	US $13.82
	replacement
31397	31397 31397X0103 Gasket-Oil Pan 1983-10-01 ~ ; AT; ,	31397X0103	from US $13.82
31397	31397 31397-X8785 Gasket & Seal Kit-Auto Transmission 1983-10-01 ~ 1985-03-01; AT; ,	31397-X8785	—
31397	31397 31397-X8786 Gasket & Seal Kit-Auto Transmission 1985-03-01 ~ ; AT; ,	31397-X8786	—
	replacement
31397	31397 31397X8789 Gasket & Seal Kit-Auto Transmission 1985-03-01 ~ ; AT; ,	31397X8789	US $245.34
31411	31411 31411-X8600 Shaft-Input 1983-10-01 ~ ; CA20E.AT; ,	31411-X8600	US $42.62
31411	31411 31159-X6101 Seal-O Ring 1983-10-01 ~ ; AT; ,	31159-X6101	US $3.31
31411E	31411E 31159-X6101 Seal-O Ring 1983-10-01 ~ ; AT; ,	31159-X6101	US $3.31
31472	31472 31472-X0100 Race-Inner 1983-10-01 ~ ; AT; ,	31472-X0100	US $26.50
31488	31488 31488-F0600 Bolt 1983-10-01 ~ ; AT; ,	31488-F0600	US $1.73
31488	31488 31484-X0100 Washer-Plain 1983-05-01 ~ ; AT; ,	31484-X0100	US $0.86
31488C	31488C 31484-X0100 Washer-Plain 1983-05-01 ~ ; AT; ,	31484-X0100	US $0.86
31645	31645 31644-X0101 Piston Assy-Low & Reverse Brake 1983-10-01 ~ ; AT; ,	31644-X0101	—
31646	31646 31646-X0100 Seal-Lathe Cut Ring 1983-10-01 ~ ; AT; ,	31646-X0100	US $4.18
31647	31647 31647-X0100 Seal-O Ring 1983-10-01 ~ ; AT; ,	31647-X0100	US $1.73
31651	31651 31651-X0101 Spring-Piston Return 1983-10-01 ~ ; AT; ,	31651-X0101	US $5.18
31652M	31652M 31652-X0101 Ring-Snap 1983-10-01 ~ ; AT; ,	31652-X0101	US $2.45
31662	31662 31662-X0102 Plate Assy-Drive 1983-10-01 ~ ; CA20E.AT; ,	31662-X0102	—
31662	31662 31662-X0102 Plate Assy-Drive 1983-10-01 ~ ; CA20E.AT; ,	31662-X0102	—
31662	31662 31662-X0102 Plate Assy-Drive 1983-10-01 ~ ; CA20E.AT; ,	31662-X0102	—
31662	31662 31662-X0102 Plate Assy-Drive 1983-10-01 ~ ; CA20E.AT; ,	31662-X0102	—
31662	31662 31662-X0102 Plate Assy-Drive 1983-10-01 ~ ; CA20E.AT; ,	31662-X0102	—
31666	31666 31666-X0100 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0100	US $20.30
	replacement
31666	31666 31666-X0101 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0101	US $20.30
31666	31666 31666-X0100 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0100	US $20.30
	replacement
31666	31666 31666-X0101 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0101	US $20.30
31666	31666 31666-X0100 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0100	US $20.30
	replacement
31666	31666 31666-X0101 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0101	US $20.30
31666	31666 31666-X0100 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0100	US $20.30
	replacement
31666	31666 31666-X0101 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0101	US $20.30
31666	31666 31666-X0100 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0100	US $20.30
	replacement
31666	31666 31666-X0101 Plate-Driven 1983-10-01 ~ ; CA20E.AT; ,	31666-X0101	US $20.30
31667	31667 31667-X0500 Plate-Retaining 1983-10-01 ~ ; CA20E.AT; SELECT T=7.8	31667-X0500	US $12.96
31667	31667 31667-X0501 Plate-Retaining 1983-10-01 ~ ; CA20E.AT; SELECT T=8.0	31667-X0501	US $12.96
31667	31667 31667-X0502 Plate-Retaining 1983-10-01 ~ ; CA20E.AT; SELECT T=8.2	31667-X0502	US $12.96
31667	31667 31667-X0503 Plate-Retaining 1983-10-01 ~ ; CA20E.AT; SELECT T=8.4	31667-X0503	US $12.96
31667	31667 31667-X0504 Plate-Retaining 1983-10-01 ~ ; CA20E.AT; SELECT T=8.6	31667-X0504	US $12.96
31914	31914 31914-X0100 Seal-O Ring 1983-10-01 ~ ; AT; ,	31914-X0100	US $0.86
31921	31921 31921-X0101 Shaft Assy-Manual 1983-10-01 ~ ; AT; ,	31921-X0101	US $20.30
31922	31922 31922X0101 Washer-Manual Shaft 1983-10-01 ~ ; AT; ,	31922X0101	US $1.73
31924	31924 31924-X0101 Plate Assy-Manual 1983-10-01 ~ 1984-01-01; AT; ,	31924-X0101	US $4.18
31924	31924 31924-X0102 Plate Assy-Manual 1984-01-01 ~ ; AT; ,	31924-X0102	US $4.18
31963	31963 31963-X0100 Ring-Snap 1983-10-01 ~ ; AT; ,	31963-X0100	US $0.86
31970	31970 31970-X0103 Rod Assy-Parking 1983-10-01 ~ 1984-01-01; AT; ,	31970-X0103	US $7.34
31970	31970 31970-X0106 Rod Assy-Parking 1984-01-01 ~ ; AT; ,	31970-X0106	US $7.49
31981	31981 31981-X0100 Support-Parking Actuator 1983-10-01 ~ 1984-01-01; AT; ,	31981-X0100	US $29.81
31981	31981 31981-X0102 Support-Parking Actuator 1984-01-01 ~ ; AT; ,	31981-X0102	US $30.38
31981	31981 31357-20300 Ball-Steel 1983-10-01 ~ ; AT; ,	31357-20300	US $0.86
31981A	31981A 31357-20300 Ball-Steel 1983-10-01 ~ ; AT; ,	31357-20300	US $0.86
31983	31983 31983-X0100 Plate-Retaining, Parking 1983-10-01 ~ ; AT; ,	31983-X0100	US $0.86
31983	31983 01125-00021 BOLT 1983-10-01 ~ ; AT; ,	01125-00021	US $2.45
31983A	31983A 01125-00021 BOLT 1983-10-01 ~ ; AT; ,	01125-00021	US $2.45
31984	31984 31984-E8000 Retainer-Spring, Parking 1983-10-01 ~ 1984-01-01; AT; ,	31984-E8000	US $4.18
31984	31984 31984-X8000 Retainer-Spring, Parking 1984-01-01 ~ ; AT; ,	31984-X8000	US $4.18
31985	31985 31985-E8000 Spring-Ball, Parking 1983-10-01 ~ 1984-01-01; AT; ,	31985-E8000	US $1.73
31985	31985 31985-X0100 Spring-Ball, Parking 1984-01-01 ~ ; AT; ,	31985-X0100	US $1.73
31986	31986 31986-20300 Shaft-Parking Pawl 1983-10-01 ~ ; AT; ,	31986-20300	US $2.45
31987	31987 31987-X0100 Spacer-Parking Pawl 1983-10-01 ~ ; AT; ,	31987-X0100	US $1.73
31988	31988 31988-X0100 Spring-Return Pawl 1983-10-01 ~ ; AT; ,	31988-X0100	US $1.73
31991	31991 31991-E8000 Pawl-Parking 1983-10-01 ~ 1984-01-01; AT; ,	31991-E8000	US $33.55
31991	31991 31991-X0100 Pawl-Parking 1984-01-01 ~ ; AT; ,	31991-X0100	US $12.82

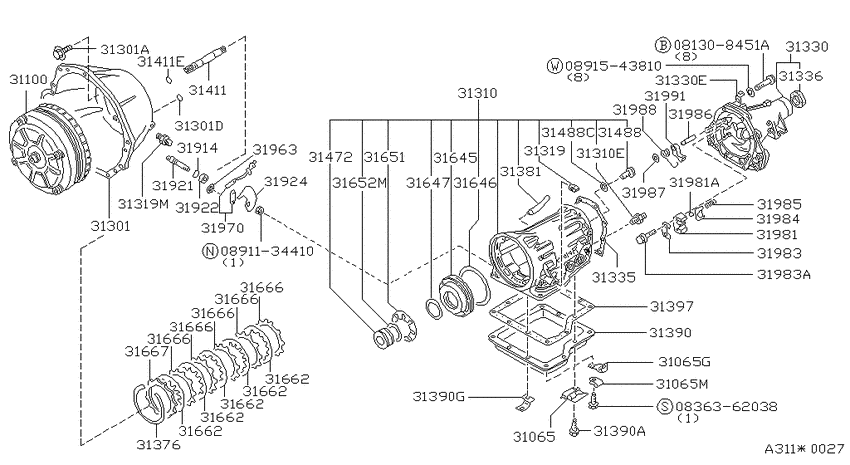

Torque converter,housing & case (1983-10-01 ~ ; AT) Diagram Nissan 200SX U.S.A. 2306692-182302

Torque converter,housing & case (1983-10-01 ~ ; AT) Diagram Nissan 200SX U.S.A. 2306692-182302
