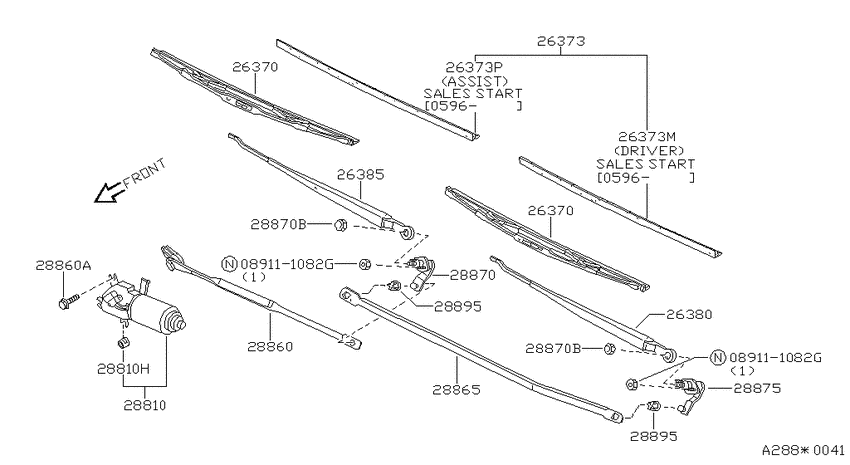

Windshield wiper (1983-10-01 ~ ; ALL) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
26370
|
26370
28890-06F10
Blade Assy-Windshield Wiper
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; RH & LH USE |
28890-06F10 |
— | ||
|
26370
|
26370
28890-06F10
Blade Assy-Windshield Wiper
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; RH & LH USE |
28890-06F10 |
— | ||
|
26373
|
26373
B8891-52090
Refill-Wiper Blade
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; RH & LH USE |
B8891-52090 |
— | ||
|
26373
|
26373
28895-79904
Refill-Wiper Blade, Driver
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28895-79904 |
— | ||
|
26373
|
26373
28895-79904
Refill-Wiper Blade, Driver
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28895-79904 |
— | ||
|
26373M
|
26373M
28895-79904
Refill-Wiper Blade, Driver
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28895-79904 |
— | ||
|
26373P
|
26373P
28895-79904
Refill-Wiper Blade, Driver
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28895-79904 |
— | ||
|
26380
|
26380
28881-06F10
Arm Assy-Windshield Wiper
1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28881-06F10 |
— | ||
|
26385
|
26385
28886-06F10
Arm Assy-Windshield Wiper
1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28886-06F10 |
— | ||
|
28810
|
28810
28815-06F00
Motor Assy-Windshield Wiper
1983-10-01 ~ 1985-08-01; (FED.C.GL +FED.HB.GL +CAL.C.GL +CAL.HB.GL; , |
28815-06F00 |
— | ||
| replacement | |||||
|
28810
|
28810
B8815-06F00
Motor assy-windshield wiper
1983-10-01 ~ 1985-08-01; (FED.C.GL +FED.HB.GL +CAL.C.GL +CAL.HB.GL; , |
B8815-06F00 |
— | ||
|
28810
|
28810
28815-07F00
Motor Assy-Windshield Wiper
1986-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28815-07F00 |
— | ||
| replacement | |||||
|
28810
|
28810
B8815-07F00
Motor assy-windshield wiper
1986-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
B8815-07F00 |
— | ||
|
28810
|
28810
28815-32F00
Motor Assy-Windshield Wiper
1986-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28815-32F00 |
— | ||
| replacement | |||||
|
28810
|
28810
B8815-07F00
Motor assy-windshield wiper
1986-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
B8815-07F00 |
— | ||
|
28810
|
28810
28818-50A00 Seat-Rubber1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28818-50A00 |
US $2.45 |
||
|
28810H
|
28810H
28818-50A00 Seat-Rubber1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28818-50A00 |
US $2.45 |
||
|
28860
|
28860
28841-06F02
Link Assy-Connecting, No 1
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28841-06F02 |
— | ||
| replacement | |||||
|
28860
|
28860
B8841-06F02
Link assy-connecting,no 1
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
B8841-06F02 |
— | ||
|
28860
|
28860
28845-06F00
Link Assy-Connecting, No 1
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28845-06F00 |
— | ||
| replacement | |||||
|
28860
|
28860
B8841-06F02
Link assy-connecting,no 1
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
B8841-06F02 |
— | ||
|
28860
|
28860
01436-00301 SCREW1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
01436-00301 |
US $1.73 |
||
|
28860A
|
28860A
01436-00301 SCREW1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
01436-00301 |
US $1.73 |
||
|
28865
|
28865
28842-01F00 Link Assy-Connecting, No 21983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28842-01F00 |
US $16.27 |
||
|
28870
|
28870
28850-01F00
Pivot Assy-Wiper, No 1
1983-10-01 ~ 1984-12-01; FED.C +FED.HB +CAL.C +CAL.HB; , |
28850-01F00 |
— | ||
| replacement | |||||
|
28870
|
28870
28850-01F01
Pivot Assy-Wiper, No 1
1983-10-01 ~ 1984-12-01; FED.C +FED.HB +CAL.C +CAL.HB; , |
28850-01F01 |
— | ||
|
28870
|
28870
28850-01F01
Pivot Assy-Wiper, No 1
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28850-01F01 |
— | ||
|
28870
|
28870
26389-U7600
Nut-Wiper Arm
1983-10-01 ~ 1985-08-01; FED.C +FED.HB +CAL.C +CAL.HB; , |
26389-U7600 |
— | ||
|
28870
|
28870
28889-01F00 Nut1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28889-01F00 |
US $5.18 |
||
|
28870B
|
28870B
26389-U7600
Nut-Wiper Arm
1983-10-01 ~ 1985-08-01; FED.C +FED.HB +CAL.C +CAL.HB; , |
26389-U7600 |
— | ||
|
28870B
|
28870B
28889-01F00 Nut1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28889-01F00 |
US $5.18 |
||
|
28870B
|
28870B
26389-U7600
Nut-Wiper Arm
1983-10-01 ~ 1985-08-01; FED.C +FED.HB +CAL.C +CAL.HB; , |
26389-U7600 |
— | ||
|
28870B
|
28870B
28889-01F00 Nut1985-08-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28889-01F00 |
US $5.18 |
||
|
28875
|
28875
28860-01F00
Pivot Assy-Wiper, No 2
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28860-01F00 |
— | ||
| replacement | |||||
|
28875
|
28875
B8860-01F00
Pivot assy-wiper,no 2
1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
B8860-01F00 |
— | ||
|
28895
|
28895
28826-W1000 Retainer-Ball1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28826-W1000 |
US $3.46 |
||
|
28895
|
28895
28826-W1000 Retainer-Ball1983-10-01 ~ ; FED.C +FED.HB +CAL.C +CAL.HB; , |
28826-W1000 |
US $3.46 |
||
