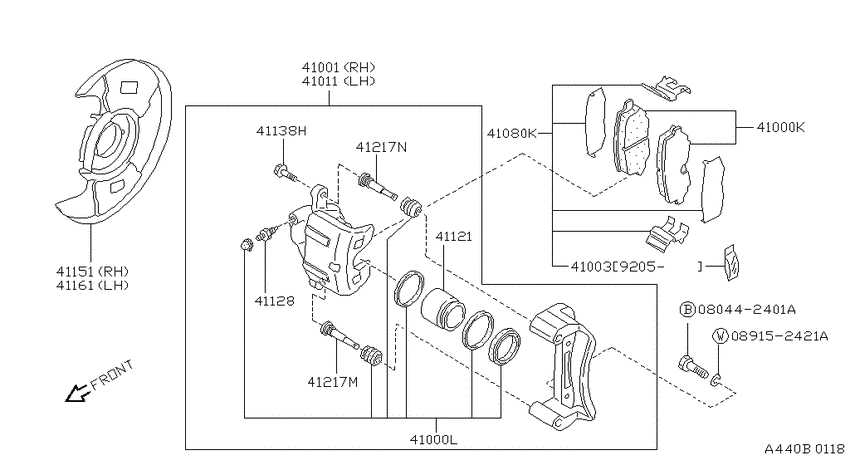

Front brake (1988-07-01 ~ ; KA24E+KA24DE) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24D
- drive
- 4WS
- transmission
- AT
- body
- FB
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
41060-40F92
Pad Kit-Disc Brake, Front
1990-07-01 ~ 1991-09-01; KA24DE; F/RH & LH |
41060-40F92 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-40F94
Pad kit-disc brake
1990-07-01 ~ 1991-09-01; KA24DE; F/RH & LH |
D106M-40F94 |
— | ||
|
41000K
|
41000K
41060-40F94
Pad Kit-Disc Brake, Front
1991-09-01 ~ 1991-12-01; KA24DE; F/RH & LH |
41060-40F94 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-40F94
Pad kit-disc brake
1991-09-01 ~ 1991-12-01; KA24DE; F/RH & LH |
D106M-40F94 |
— | ||
|
41000K
|
41000K
41060-G8190
Pad Kit-Disc Brake, Front
1991-12-01 ~ ; *KA24E +*(FB+C).KA24DE; F/RH & LH F/ANTI SKID CONT-4WHL |
41060-G8190 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-G8190
Pad kit-disc brake
1991-12-01 ~ ; *KA24E +*(FB+C).KA24DE; F/RH & LH F/ANTI SKID CONT-4WHL |
D106M-G8190 |
— | ||
|
41000K
|
41000K
D1060-40F90 Pad Kit-Disc Brake1992-07-01 ~ ; (FB+C).KA24DE.AT; F/RH & LH |
D1060-40F90 |
US $129.60 |
||
| replacement | |||||
|
41000K
|
41000K
D106M-40F25
Pad kit-disc brake
1992-07-01 ~ ; (FB+C).KA24DE.AT; F/RH & LH |
D106M-40F25 |
— | ||
|
41000L
|
41000L
41120-40F26
Seal Kit-Disc Brake
1990-07-01 ~ 1991-12-01; KA24DE; , |
41120-40F26 |
— | ||
| replacement | |||||
|
41000L
|
41000L
41120-2N325
Seal kit-disc brake
1990-07-01 ~ 1991-12-01; KA24DE; , |
41120-2N325 |
— | ||
|
41000L
|
41000L
41120-71E25
SEAL KIT-DISC BRAKE
1991-12-01 ~ ; *KA24E +*(FB+C).KA24DE; F/ANTI SKID CONT-4WHL |
41120-71E25 |
— | ||
| replacement | |||||
|
41000L
|
41000L
41120-6M025
Seal Kit-Disc Brake
1991-12-01 ~ ; *KA24E +*(FB+C).KA24DE; F/ANTI SKID CONT-4WHL |
41120-6M025 |
— | ||
|
41001
|
41001
4100140F01 Caliper Assy-Front Rh, W/o Pads Or Shims1990-07-01 ~ 1991-10-01; KA24DE; , |
4100140F01 |
US $429.05 |
||
|
41001
|
41001
41001-44F01 Caliper Assy-Front Rh, W/o Pads Or Shims1991-12-01 ~ 1992-05-01; KA24DE; , |
41001-44F01 |
US $429.05 |
||
|
41003
|
41003
41003-03P25 Grease-Shim Disc Brake1992-05-01 ~ ; KA24DE; , |
41003-03P25 |
US $2.02 |
||
|
41011
|
41011
4101140F01 Caliper Assy-Front Lh, W/o Pads Or Shims1990-07-01 ~ 1991-10-01; KA24DE; , |
4101140F01 |
US $429.05 |
||
|
41011
|
41011
41011-44F01 Caliper Assy-Front Lh, W/o Pads Or Shims1991-12-01 ~ 1992-05-01; KA24DE; , |
41011-44F01 |
US $429.05 |
||
|
41080K
|
41080K
41080-40F26 Hardware Kit-Front Disc Brake Pad1990-07-01 ~ 1991-10-01; KA24DE; , |
41080-40F26 |
US $76.75 |
||
|
41080K
|
41080K
41080-40F27
Hardware Kit-Front Disc Brake Pad
1992-05-01 ~ 1992-07-01; KA24DE; , |
41080-40F27 |
— | ||
|
41080K
|
41080K
41080-40F28 Hardware Kit-Front Disc Brake Pad1992-07-01 ~ ; KA24DE.AT; , |
41080-40F28 |
US $75.89 |
||
|
41080K
|
41080K
41080-71E26
HARDWARE KIT-FRONT DISC BRAKE PAD
1991-12-01 ~ 1992-05-01; KA24DE; , |
41080-71E26 |
— | ||
| replacement | |||||
|
41080K
|
41080K
4108071E29 HARDWARE KIT-FRONT DISC BRAKE PAD1991-12-01 ~ 1992-05-01; KA24DE; , |
4108071E29 |
US $96.74 |
||
|
41121
|
41121
4112140F00 Piston-Cylinder1990-07-01 ~ 1991-10-01; KA24DE; , |
4112140F00 |
US $35.14 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER1991-12-01 ~ 1992-05-01; KA24DE; , |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
41128-21010
Screw-Bleeder
1990-07-01 ~ 1992-05-01; KA24DE; , |
41128-21010 |
— | ||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
1992-05-01 ~ ; KA24DE; , |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder1992-05-01 ~ ; KA24DE; , |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
1990-07-01 ~ ; KA24DE; , |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt1990-07-01 ~ ; KA24DE; , |
44141AW70A |
from US $3.35 |
||
|
41151
|
41151
41150-35F00
Baffle Plate-Rh
1990-07-01 ~ 1991-10-01; KA24DE; , |
41150-35F00 |
— | ||
|
41151
|
41151
41150-F6600 Baffle Plate-Rh1991-12-01 ~ 1992-05-01; KA24DE; , |
41150-F6600 |
US $31.97 |
||
| replacement | |||||
|
41151
|
41151
41150-F6601 Baffle Plate1991-12-01 ~ 1992-05-01; KA24DE; , |
41150-F6601 |
US $32.54 |
||
|
41161
|
41161
41160-35F00
Baffle Plate-Lh
1990-07-01 ~ 1991-10-01; KA24DE; , |
41160-35F00 |
— | ||
|
41161
|
41161
41160-F6600 Baffle Plate-Lh1991-12-01 ~ 1992-05-01; KA24DE; , |
41160-F6600 |
US $31.97 |
||
| replacement | |||||
|
41161
|
41161
41160-F6601 Baffle Plate1991-12-01 ~ 1992-05-01; KA24DE; , |
41160-F6601 |
US $32.54 |
||
|
41217M
|
41217M
44139-16E01 PIN1990-07-01 ~ ; KA24DE; , |
44139-16E01 |
US $18.29 |
||
|
41217N
|
41217N
44140N9500 Pin-Lock1990-07-01 ~ ; KA24DE; , |
44140N9500 |
from US $8.45 |
||
