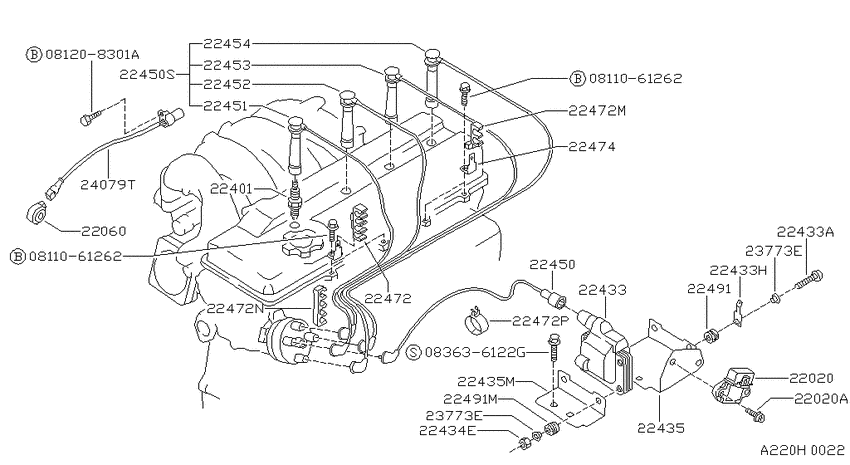

Ignition System (1988-07-01 ~ ; KA24DE) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24D
- drive
- 4WS
- transmission
- AT
- body
- FB
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
081208301A
|
081208301A
081208301A
Bolt-hexagon
|
081208301A |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
22020
|
22020
22020-56E11 TRANSISTOR IGNITION UNIT1990-07-01 ~ ; KA24DE; , |
22020-56E11 |
US $116.64 |
||
|
22020
|
22020
22467-56E11 SCREW1990-07-01 ~ ; KA24DE; , |
22467-56E11 |
US $1.73 |
||
|
22020A
|
22020A
22467-56E11 SCREW1990-07-01 ~ ; KA24DE; , |
22467-56E11 |
US $1.73 |
||
|
22060
|
22060
2206030P00 Knock Sensor1990-07-01 ~ ; KA24DE; , |
2206030P00 |
from US $174.64 |
||
|
22401
|
22401
2240150Y05 Plug-Spark1990-07-01 ~ ; KA24DE; BKR5E-11 STD |
2240150Y05 |
from US $2.79 |
||
|
22401
|
22401
2240150Y06 Plug-Spark1990-07-01 ~ ; KA24DE; BKR6E-11 F/SERVICE |
2240150Y06 |
from US $2.76 |
||
|
22401
|
22401
2240150Y07 Plug-Spark1990-07-01 ~ ; KA24DE; BKR7E-11 F/SERVICE |
2240150Y07 |
from US $3.03 |
||
|
22433
|
22433
22433-53F00 Coil-Ignition1990-07-01 ~ ; KA24DE; , |
22433-53F00 |
US $174.24 |
||
|
22433
|
22433
22467-29R10 Screw1990-07-01 ~ ; KA24DE; , |
22467-29R10 |
US $2.45 |
||
|
22433
|
22433
22471-56E11 TERMINAL-IGNITION COIL1990-07-01 ~ ; KA24DE; , |
22471-56E11 |
US $4.03 |
||
|
22433A
|
22433A
22467-29R10 Screw1990-07-01 ~ ; KA24DE; , |
22467-29R10 |
US $2.45 |
||
|
22433H
|
22433H
22471-56E11 TERMINAL-IGNITION COIL1990-07-01 ~ ; KA24DE; , |
22471-56E11 |
US $4.03 |
||
|
22434E
|
22434E
22464-N7110 Nut1990-07-01 ~ ; KA24DE; , |
22464-N7110 |
US $0.86 |
||
|
22435
|
22435
22435-53F00
Bracket-Ignition Coil
1990-07-01 ~ ; KA24DE; , |
22435-53F00 |
— | ||
|
22435
|
22435
22435-53F01
Bracket-Ignition Coil
1990-07-01 ~ ; KA24DE; , |
22435-53F01 |
— | ||
|
22435M
|
22435M
22435-53F01
Bracket-Ignition Coil
1990-07-01 ~ ; KA24DE; , |
22435-53F01 |
— | ||
|
22450
|
22450
22450-53F00
Cable Assy-Ignition Coil To Distributor
1990-07-01 ~ ; KA24DE; YAZAKI |
22450-53F00 |
— | ||
|
22450
|
22450
22450-53F10
Cable Assy-Ignition Coil To Distributor
1990-07-01 ~ ; KA24DE; SUMITOMO |
22450-53F10 |
— | ||
|
22450
|
22450
22450-53F25
Cable Set-High Tension
1990-07-01 ~ ; KA24DE; , |
22450-53F25 |
— | ||
|
22450S
|
22450S
22450-53F25
Cable Set-High Tension
1990-07-01 ~ ; KA24DE; , |
22450-53F25 |
— | ||
|
22451
|
22451
22451-53F00
Cable Assy-High Tension, No 1
1990-07-01 ~ ; KA24DE; YAZAKI |
22451-53F00 |
— | ||
|
22451
|
22451
22451-53F10
Cable Assy-High Tension, No 1
1990-07-01 ~ ; KA24DE; SUMITOMO |
22451-53F10 |
— | ||
|
22452
|
22452
22452-53F00
Cable Assy-High Tension, No 2
1990-07-01 ~ ; KA24DE; YAZAKI |
22452-53F00 |
— | ||
|
22452
|
22452
22452-53F10
Cable Assy-High Tension, No 2
1990-07-01 ~ ; KA24DE; SUMITOMO |
22452-53F10 |
— | ||
|
22453
|
22453
22453-53F00
Cable Assy-High Tension, No 3
1990-07-01 ~ ; KA24DE; YAZAKI |
22453-53F00 |
— | ||
|
22453
|
22453
22453-53F10
Cable Assy-High Tension, No 3
1990-07-01 ~ ; KA24DE; SUMITOMO |
22453-53F10 |
— | ||
|
22454
|
22454
22454-53F00
Cable Assy-High Tension, No 4
1990-07-01 ~ ; KA24DE; YAZAKI |
22454-53F00 |
— | ||
|
22454
|
22454
22454-53F10
Cable Assy-High Tension, No 4
1990-07-01 ~ ; KA24DE; SUMITOMO |
22454-53F10 |
— | ||
|
22472
|
22472
22472-15V03 Clamp-High Tension Cable1992-09-01 ~ ; KA24DE; , |
22472-15V03 |
US $4.71 |
||
|
22472
|
22472
22472-53F00
Clamp-High Tension Cable
1990-07-01 ~ 1992-09-01; KA24DE; , |
22472-53F00 |
— | ||
|
22472
|
22472
22472-53F05
Clamp-High Tension Cable
1990-07-01 ~ ; KA24DE; , |
22472-53F05 |
— | ||
|
22472
|
22472
22472-11M00 Clamp-High Tension Cable1990-07-01 ~ ; KA24DE; , |
22472-11M00 |
US $3.02 |
||
|
22472
|
22472
22472-32F10
Clamp-High Tension Cable
1990-07-01 ~ ; KA24DE; , |
22472-32F10 |
— | ||
|
22472M
|
22472M
22472-53F05
Clamp-High Tension Cable
1990-07-01 ~ ; KA24DE; , |
22472-53F05 |
— | ||
|
22472N
|
22472N
22472-11M00 Clamp-High Tension Cable1990-07-01 ~ ; KA24DE; , |
22472-11M00 |
US $3.02 |
||
|
22472P
|
22472P
22472-32F10
Clamp-High Tension Cable
1990-07-01 ~ ; KA24DE; , |
22472-32F10 |
— | ||
|
22474
|
22474
22474-53F00
Bracket-High Tension Cable
1990-07-01 ~ ; KA24DE; , |
22474-53F00 |
— | ||
|
22491
|
22491
22491-03G11 Mounting Rubber-Ignition Coil1990-07-01 ~ ; KA24DE; , |
22491-03G11 |
US $4.90 |
||
|
22491
|
22491
22491-03G10 Mounting Rubber-Ignition Coil1990-07-01 ~ ; KA24DE; , |
22491-03G10 |
US $4.90 |
||
|
22491M
|
22491M
22491-03G10 Mounting Rubber-Ignition Coil1990-07-01 ~ ; KA24DE; , |
22491-03G10 |
US $4.90 |
||
|
23773E
|
23773E
22492-03G10 Collar1990-07-01 ~ ; KA24DE; , |
22492-03G10 |
US $5.76 |
||
|
23773E
|
23773E
22492-03G10 Collar1990-07-01 ~ ; KA24DE; , |
22492-03G10 |
US $5.76 |
||
|
24079T
|
24079T
24079-53F05 Harness-Eng Sub1990-07-01 ~ ; KA24DE; , |
24079-53F05 |
US $96.77 |
