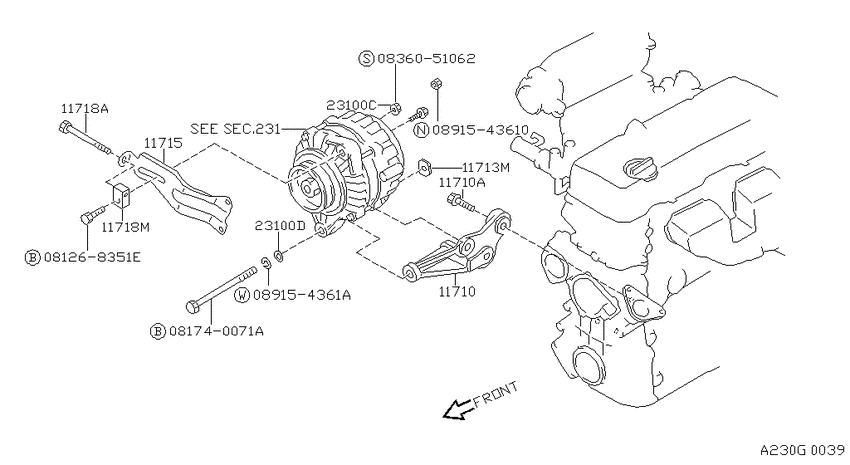

Alternator fitting (1988-07-01 ~ ; KA24E) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 2WS
- transmission
- MT
- body
- C
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268351E
|
081268351E
08126-8351E
Bolt-hexagon
|
08126-8351E |
— | ||
|
081740071A
|
081740071A
08174-0071A
Bolt-hexagon
|
08174-0071A |
— | ||
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
089154361A
|
089154361A
089154361A WASHERPLAIN |
089154361A |
from US $0.61 |
||
|
11710
|
11710
11710-40F00 Bracket-Alternator1988-07-01 ~ 1990-07-01; KA24E; , |
11710-40F00 |
US $81.50 |
||
|
11710
|
11710
11716-40F00 Bolt1988-07-01 ~ 1990-07-01; KA24E; M10 X 25 |
11716-40F00 |
US $3.31 |
||
| replacement | |||||
|
11710
|
11710
1171640F0A Bolt1988-07-01 ~ 1990-07-01; KA24E; M10 X 25 |
1171640F0A |
US $3.31 |
||
|
11710A
|
11710A
11716-40F00 Bolt1988-07-01 ~ 1990-07-01; KA24E; M10 X 25 |
11716-40F00 |
US $3.31 |
||
| replacement | |||||
|
11710A
|
11710A
1171640F0A Bolt1988-07-01 ~ 1990-07-01; KA24E; M10 X 25 |
1171640F0A |
US $3.31 |
||
|
11713M
|
11713M
11719-D0102 Stopper-Alternator Nut1988-07-01 ~ 1990-07-01; KA24E; , |
11719-D0102 |
US $7.06 |
||
| replacement | |||||
|
11713M
|
11713M
1171903U0A
Stopper-Alternator Nut
1988-07-01 ~ 1990-07-01; KA24E; , |
1171903U0A |
— | ||
|
11715
|
11715
11715-40F00
Bar-Adjusting, Alternator
1988-07-01 ~ 1990-07-01; KA24E; , |
11715-40F00 |
— | ||
|
11718A
|
11718A
11717-V7200 Bolt1988-07-01 ~ 1990-07-01; KA24E; M8 X 70 |
11717-V7200 |
US $2.45 |
||
| replacement | |||||
|
11718A
|
11718A
11717V720A
Bolt
1988-07-01 ~ 1990-07-01; KA24E; M8 X 70 |
11717V720A |
— | ||
|
11718M
|
11718M
11942-77A00
Bracket-Adjust Bolt
1988-07-01 ~ 1990-07-01; KA24E; , |
11942-77A00 |
— | ||
| replacement | |||||
|
11718M
|
11718M
1194277A0A Bracket-Alternator Adjust Bolt1988-07-01 ~ 1990-07-01; KA24E; , |
1194277A0A |
from US $8.05 |
||
|
23100C
|
23100C
01221-00241 NUT1988-07-01 ~ 1990-07-01; KA24E; , |
01221-00241 |
US $1.73 |
||
|
23100D
|
23100D
11058H1001 Washer-Plain1988-07-01 ~ 1990-07-01; KA24E; , |
11058H1001 |
from US $2.07 |
||
