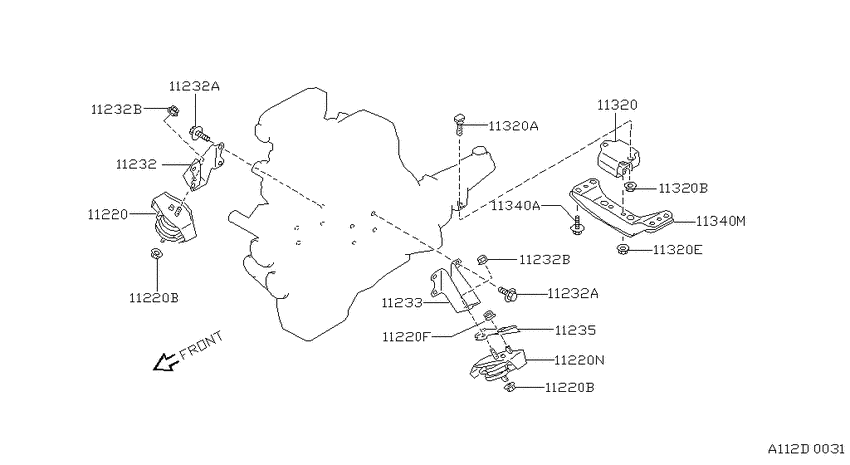

Engine & transmission mounting (1988-07-01 ~ ; KA24E.MT +KA24DE.MT) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 2WS
- transmission
- MT
- body
- C
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
11210-40F00 Insulator-Engine Mounting, Front1988-07-01 ~ ; KA24E.MT +KA24DE.MT; FOR RH |
11210-40F00 |
US $158.02 |
||
|
11220
|
11220
0122500611 NUT1988-07-01 ~ 1993-09-01; KA24E.MT +KA24DE.MT; , |
0122500611 |
US $4.99 |
||
|
11220
|
11220
0122500481
NUT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
0122500481 |
— | ||
|
11220
|
11220
11220-40F00 Insulator-Engine Mounting, Front1988-07-01 ~ ; KA24E.MT +KA24DE.MT; FOR LH |
11220-40F00 |
US $160.78 |
||
|
11220B
|
11220B
0122500611 NUT1988-07-01 ~ 1993-09-01; KA24E.MT +KA24DE.MT; , |
0122500611 |
US $4.99 |
||
|
11220B
|
11220B
0122500611 NUT1988-07-01 ~ 1993-09-01; KA24E.MT +KA24DE.MT; , |
0122500611 |
US $4.99 |
||
|
11220F
|
11220F
0122500481
NUT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
0122500481 |
— | ||
|
11220N
|
11220N
11220-40F00 Insulator-Engine Mounting, Front1988-07-01 ~ ; KA24E.MT +KA24DE.MT; FOR LH |
11220-40F00 |
US $160.78 |
||
|
11232
|
11232
11232-40F00
Bracket-Engine Mounting, Rh
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11232-40F00 |
— | ||
|
11232
|
11232
01121-03331
BOLT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
01121-03331 |
— | ||
|
11232
|
11232
11258D0101 Nut1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11232A
|
11232A
01121-03331
BOLT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
01121-03331 |
— | ||
|
11232A
|
11232A
01121-03331
BOLT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
01121-03331 |
— | ||
|
11232B
|
11232B
11258D0101 Nut1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11232B
|
11232B
11258D0101 Nut1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11233
|
11233
11233-40F00
Bracket-Engine Mounting, Lh
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11233-40F00 |
— | ||
|
11235
|
11235
11284-35F01 Plate-Heat Shield1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11284-35F01 |
US $9.79 |
||
|
11320
|
11320
11320-35F00
Insulator-Engine Mounting, Rear
1988-07-01 ~ 1990-07-01; KA24E.MT; , |
11320-35F00 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-35F01 Insulator-Engine Mounting, Rear1988-07-01 ~ 1990-07-01; KA24E.MT; , |
11320-35F01 |
US $115.45 |
||
|
11320
|
11320
11320-35F01 Insulator-Engine Mounting, Rear1988-07-01 ~ 1990-07-01; KA24E.MT; , |
11320-35F01 |
US $115.45 |
||
|
11320
|
11320
11390-35F01 Bolt1988-07-01 ~ 1990-07-01; KA24E.MT +KA24DE.MT; , |
11390-35F01 |
US $103.68 |
||
|
11320
|
11320
11258D0101 Nut1988-07-01 ~ 1990-07-01; KA24E.MT; , |
11258D0101 |
from US $2.41 |
||
|
11320
|
11320
0122500481
NUT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
0122500481 |
— | ||
|
11320A
|
11320A
11390-35F01 Bolt1988-07-01 ~ 1990-07-01; KA24E.MT +KA24DE.MT; , |
11390-35F01 |
US $103.68 |
||
|
11320B
|
11320B
11258D0101 Nut1988-07-01 ~ 1990-07-01; KA24E.MT; , |
11258D0101 |
from US $2.41 |
||
|
11320E
|
11320E
0122500481
NUT
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
0122500481 |
— | ||
|
11340A
|
11340A
01125-00161 BOLT1988-07-01 ~ 1993-06-01; KA24E.MT +KA24DE.MT; , |
01125-00161 |
US $2.45 |
||
|
11340M
|
11340M
11331-35F00
Member Assy-Engine Mounting, Rear
1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11331-35F00 |
— | ||
| replacement | |||||
|
11340M
|
11340M
11330-91P00 Member Assy-Engine Mounting, Rear1988-07-01 ~ ; KA24E.MT +KA24DE.MT; , |
11330-91P00 |
US $85.81 |
||
