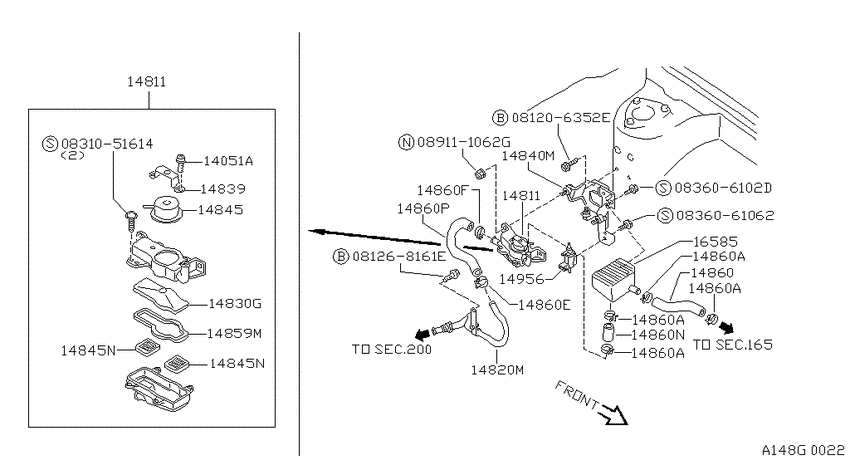

Secondary air system (1988-07-01 ~ ; EAI VALVE; KA24E) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 2WS
- transmission
- MT
- body
- C
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206352E
|
081206352E
08120-6352E
Bolt-hexagon
|
08120-6352E |
— | ||
|
081268161E
|
081268161E
08126-8161E
Bolt-hexagon
|
08126-8161E |
— | ||
|
0831051614
|
0831051614
08310-51614
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51614 |
— | ||
|
083606102D
|
083606102D
08360-6102D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6102D |
— | ||
|
0836061062
|
0836061062
08360-61062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61062 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
14051A
|
14051A
16516-G2100 Bolt1988-07-01 ~ 1990-07-01; KA24E; , |
16516-G2100 |
US $0.86 |
||
|
14811
|
14811
14810-40F00
Pair-Valve Case
1988-07-01 ~ 1990-07-01; KA24E; , |
14810-40F00 |
— | ||
|
14811
|
14811
14810-40F01
Pair-Valve Case
1988-07-01 ~ 1990-07-01; KA24E; , |
14810-40F01 |
— | ||
|
14811
|
14811
14810-40F00
Pair-Valve Case
1988-07-01 ~ 1990-07-01; KA24E; , |
14810-40F00 |
— | ||
|
14811
|
14811
14810-40F01
Pair-Valve Case
1988-07-01 ~ 1990-07-01; KA24E; , |
14810-40F01 |
— | ||
|
14820M
|
14820M
14821-40F01
Pair-Pipe
1988-07-01 ~ 1990-07-01; KA24E; , |
14821-40F01 |
— | ||
|
14830G
|
14830G
14474-16E01 RETAINER1988-07-01 ~ 1990-07-01; KA24E; , |
14474-16E01 |
US $12.82 |
||
|
14839
|
14839
14832-16E01 BRACKET-CONTROL VALVE1988-07-01 ~ 1990-07-01; KA24E; , |
14832-16E01 |
US $29.09 |
||
|
14840M
|
14840M
14840-40F01
Case Bracket
1988-07-01 ~ 1990-03-01; KA24E; , |
14840-40F01 |
— | ||
|
14840M
|
14840M
14840-53F00
Case Bracket
1990-03-01 ~ 1990-07-01; KA24E; , |
14840-53F00 |
— | ||
|
14845
|
14845
14828-16E01
VALVE ASSY-AIR CONTROL
1988-07-01 ~ 1990-07-01; KA24E; F/14810-40F00 |
14828-16E01 |
— | ||
|
14845
|
14845
14828-30P00
Pair-Valve
1988-07-01 ~ 1990-07-01; KA24E; F/14810-40F01 |
14828-30P00 |
— | ||
|
14845
|
14845
14845-16E61
VALVE ASSY-AIR INDUCE
1988-07-01 ~ 1990-07-01; KA24E; , |
14845-16E61 |
— | ||
|
14845N
|
14845N
14845-16E61
VALVE ASSY-AIR INDUCE
1988-07-01 ~ 1990-07-01; KA24E; , |
14845-16E61 |
— | ||
|
14845N
|
14845N
14845-16E61
VALVE ASSY-AIR INDUCE
1988-07-01 ~ 1990-07-01; KA24E; , |
14845-16E61 |
— | ||
|
14859M
|
14859M
14859-16E02
PAIR-VALVE PACKING
1988-07-01 ~ 1990-07-01; KA24E; , |
14859-16E02 |
— | ||
|
14860
|
14860
14860-40F05
Hose-Air
1988-07-01 ~ 1990-07-01; KA24E; , |
14860-40F05 |
— | ||
|
14860
|
14860
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860
|
14860
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860
|
14860
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860
|
14860
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860
|
14860
14867-W7000 Clamp-Hose1988-07-01 ~ 1990-07-01; KA24E; , |
14867-W7000 |
US $3.02 |
||
|
14860
|
14860
14860-40F10
Hose-Air
1988-07-01 ~ 1990-07-01; KA24E; , |
14860-40F10 |
— | ||
| replacement | |||||
|
14860
|
14860
14861-50F15 Hose-Air1988-07-01 ~ 1990-07-01; KA24E; , |
14861-50F15 |
US $55.16 |
||
|
14860
|
14860
14861-40F01
Hose-Air
1988-07-01 ~ 1990-07-01; KA24E; , |
14861-40F01 |
— | ||
|
14860A
|
14860A
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860A
|
14860A
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860A
|
14860A
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860A
|
14860A
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860A
|
14860A
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860A
|
14860A
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860A
|
14860A
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860A
|
14860A
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860E
|
14860E
01555-00361
CLAMP-HOSE
1988-07-01 ~ 1990-07-01; KA24E; , |
01555-00361 |
— | ||
| replacement | |||||
|
14860E
|
14860E
0155500881 CLAMP-HOSE1988-07-01 ~ 1990-07-01; KA24E; , |
0155500881 |
from US $2.28 |
||
|
14860F
|
14860F
14867-W7000 Clamp-Hose1988-07-01 ~ 1990-07-01; KA24E; , |
14867-W7000 |
US $3.02 |
||
|
14860N
|
14860N
14860-40F10
Hose-Air
1988-07-01 ~ 1990-07-01; KA24E; , |
14860-40F10 |
— | ||
| replacement | |||||
|
14860N
|
14860N
14861-50F15 Hose-Air1988-07-01 ~ 1990-07-01; KA24E; , |
14861-50F15 |
US $55.16 |
||
|
14860P
|
14860P
14861-40F01
Hose-Air
1988-07-01 ~ 1990-07-01; KA24E; , |
14861-40F01 |
— | ||
|
14956
|
14956
14956-35F10 Valve Assy-Solenoid1988-07-01 ~ 1990-07-01; KA24E; , |
14956-35F10 |
US $109.73 |
||
|
14956
|
14956
14956-40F15 Valve Assy-Solenoid1988-07-01 ~ 1990-07-01; KA24E; , |
14956-40F15 |
US $156.96 |
||
|
14956
|
14956
14956-40F10
Solenoid Valve Assy
1988-07-01 ~ 1990-07-01; KA24E; , |
14956-40F10 |
— | ||
|
14956
|
14956
14956-35F10 Valve Assy-Solenoid1988-07-01 ~ 1990-07-01; KA24E; , |
14956-35F10 |
US $109.73 |
||
|
16585
|
16585
16585-40F00
Resonator Assy
1988-07-01 ~ 1989-10-01; KA24E; , |
16585-40F00 |
— | ||
|
16585
|
16585
16585-40F01
Resonator Assy
1989-10-01 ~ 1990-07-01; KA24E; , |
16585-40F01 |
— | ||
