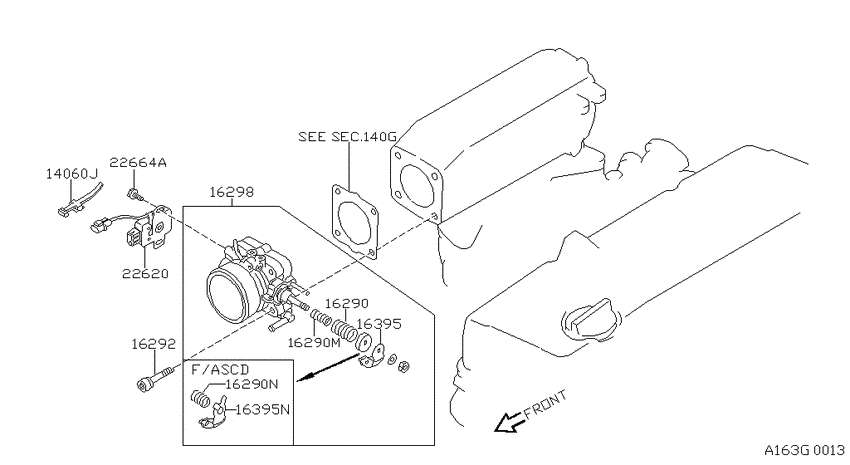

Throttle chamber (1988-07-01 ~ 1990-07-01; KA24E) Diagram Nissan 240SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 2WS
- transmission
- MT
- body
- C
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14060J
|
14060J
24346-40F00 Clip-Connector1988-07-01 ~ 1990-07-01; KA24E; , |
24346-40F00 |
US $5.33 |
||
| replacement | |||||
|
14060J
|
14060J
2434627N05 Clip-Connector1988-07-01 ~ 1990-07-01; KA24E; , |
2434627N05 |
US $4.16 |
||
|
16290
|
16290
16160-02F00 Spring-Throttle Return1988-07-01 ~ 1990-07-01; KA24E; , |
16160-02F00 |
US $8.93 |
||
|
16290
|
16290
16160-51E00 SPRING-THROTTLE RETURN1988-07-01 ~ 1990-07-01; KA24E; , |
16160-51E00 |
US $4.90 |
||
|
16290
|
16290
16160-40F01
Spring-Throttle Return, Main
1988-07-01 ~ 1990-07-01; *KA24E; F/ASCD |
16160-40F01 |
— | ||
|
16290M
|
16290M
16160-51E00 SPRING-THROTTLE RETURN1988-07-01 ~ 1990-07-01; KA24E; , |
16160-51E00 |
US $4.90 |
||
|
16290N
|
16290N
16160-40F01
Spring-Throttle Return, Main
1988-07-01 ~ 1990-07-01; *KA24E; F/ASCD |
16160-40F01 |
— | ||
|
16292
|
16292
16122V5200 Bolt-Chamber1988-07-01 ~ 1990-07-01; KA24E; , |
16122V5200 |
US $3.46 |
||
|
16298
|
16298
16118-40F00
Throttle Body
1988-07-01 ~ 1988-10-01; KA24E; , |
16118-40F00 |
— | ||
|
16298
|
16298
16118-40F01
Throttle Body
1988-07-01 ~ 1988-10-01; *KA24E; F/ASCD |
16118-40F01 |
— | ||
|
16298
|
16298
16118-40F10
Throttle Body
1988-10-01 ~ 1990-07-01; KA24E; , |
16118-40F10 |
— | ||
|
16298
|
16298
16118-40F11
Throttle Body
1989-07-01 ~ 1990-07-01; *KA24E; F/ASCD |
16118-40F11 |
— | ||
|
16395
|
16395
16134-40F00
Lever-Throttle
1988-07-01 ~ 1990-07-01; KA24E; , |
16134-40F00 |
— | ||
|
16395
|
16395
16134-40F01
Lever-Throttle
1988-07-01 ~ 1990-07-01; *KA24E; F/ASCD |
16134-40F01 |
— | ||
|
16395N
|
16395N
16134-40F01
Lever-Throttle
1988-07-01 ~ 1990-07-01; *KA24E; F/ASCD |
16134-40F01 |
— | ||
|
22620
|
22620
22620-35F00 Throttle Position Switch1988-07-01 ~ 1990-07-01; KA24E.MT; , |
22620-35F00 |
US $72.58 |
||
| replacement | |||||
|
22620
|
22620
22620-35F01 Throttle Position Switch1988-07-01 ~ 1990-07-01; KA24E.MT; , |
22620-35F01 |
US $71.24 |
||
|
22664A
|
22664A
01436-00501 SCREW1988-07-01 ~ 1990-07-01; KA24E; , |
01436-00501 |
US $1.73 |
||
