Component List 240SX
Alternator (1994-02-01 ~ 1996-07-01; HITACHI; KA24DE)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
23100	23100 23100-70F00 Generator 1994-02-01 ~ 1996-07-01; KA24DE; HITACHI P/NO. LR180-742	23100-70F00	—
23100	23100 23164-53F00 Bolt 1994-02-01 ~ ; KA24DE; ,	23164-53F00	US $4.03
23100	23100 0122100381 NUT 1994-02-01 ~ ; KA24DE; ,	0122100381	from US $5.37
23102	23102 23102-0M800 Stator Assy 1994-02-01 ~ ; KA24DE; HITACHI	23102-0M800	US $311.52
23108	23108 23108-65F00 Rotor Assy 1994-02-01 ~ ; KA24DE; HITACHI	23108-65F00	US $339.84
	replacement
23108	23108 23108-4P00A Rotor Assy 1994-02-01 ~ ; KA24DE; HITACHI	23108-4P00A	US $407.81
23118	23118 23118-70F00 Cover Assy-Front 1994-02-01 ~ ; KA24DE; HITACHI	23118-70F00	US $152.64
	replacement
23118	23118 23118-VX50A Cover Assy-Front 1994-02-01 ~ ; KA24DE; HITACHI	23118-VX50A	US $116.50
23120M	23120M 23120-0M000 Bearing-Ball 1994-02-01 ~ ; KA24DE; HITACHI	23120-0M000	US $42.34
23120M	23120M 23120-0M005 Bearing-Ball 1994-02-01 ~ ; KA24DE; HITACHI	23120-0M005	US $40.61
23120MA	23120MA 23120-0M005 Bearing-Ball 1994-02-01 ~ ; KA24DE; HITACHI	23120-0M005	US $40.61
23124	23124 23124-70F00 Rectifier Assy 1994-02-01 ~ 1996-07-01; KA24DE; HITACHI P/NO. LR180-742	23124-70F00	US $273.60
23124	23124 23124-70F01 Rectifier Assy 1996-07-01 ~ 1997-04-01; KA24DE; HITACHI P/NO. LR180-742B	23124-70F01	US $228.96
23124	23124 23124-70F02 Rectifier Assy 1997-04-01 ~ ; KA24DE; HITACHI P/NO. LR180-742C	23124-70F02	US $249.12
23127	23127 23127-70F00 Cover Assy-Rear 1994-02-01 ~ 1996-07-01; KA24DE; HITACHI P/NO. LR180-742	23127-70F00	—
23127	23127 23127-70F01 Cover Assy-Rear 1997-04-01 ~ ; KA24DE; HITACHI P/NO. LR180-742C	23127-70F01	—
23133	23133 23133-65F00 Holder Assy-Brush 1994-02-01 ~ 1996-07-01; KA24DE; !HITACHI P/NO. LR180-742,LR190-724	23133-65F00	US $49.97
23150	23150 23150-70F00 Pulley Assy 1994-02-01 ~ ; KA24DE; HITACHI	23150-70F00	US $120.67
	replacement
23150	23150 23150-VX50A Pulley Assy 1994-02-01 ~ ; KA24DE; HITACHI	23150-VX50A	US $92.16
23156	23156 23156-65F00 Terminal Assy-B 1994-02-01 ~ ; KA24DE; HITACHI	23156-65F00	from US $8.33
23200	23200 23200-0M000 Screw Set 1994-02-01 ~ ; KA24DE; HITACHI	23200-0M000	US $8.50
23215	23215 23215-65F00 Regulator Assy-Ic 1994-02-01 ~ 1996-07-01; KA24DE; !HITACHI P/NO. LR180-742,LR190-724	23215-65F00	US $348.34
23230	23230 23230-70F00 Diode Assy 1994-02-01 ~ 1996-07-01; KA24DE; HITACHI P/NO. LR180-742	23230-70F00	US $275.04

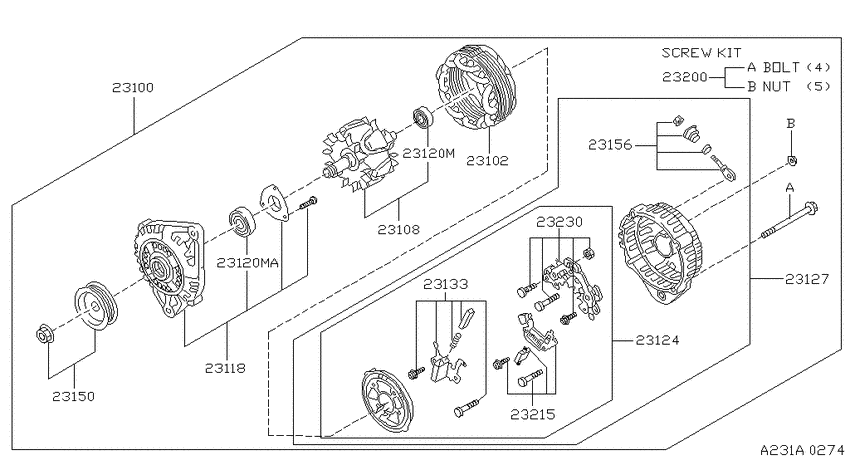

Alternator (1994-02-01 ~ 1996-07-01; HITACHI; KA24DE) Diagram Nissan 240SX U.S.A. 2307355-182385

Alternator (1994-02-01 ~ 1996-07-01; HITACHI; KA24DE) Diagram Nissan 240SX U.S.A. 2307355-182385
