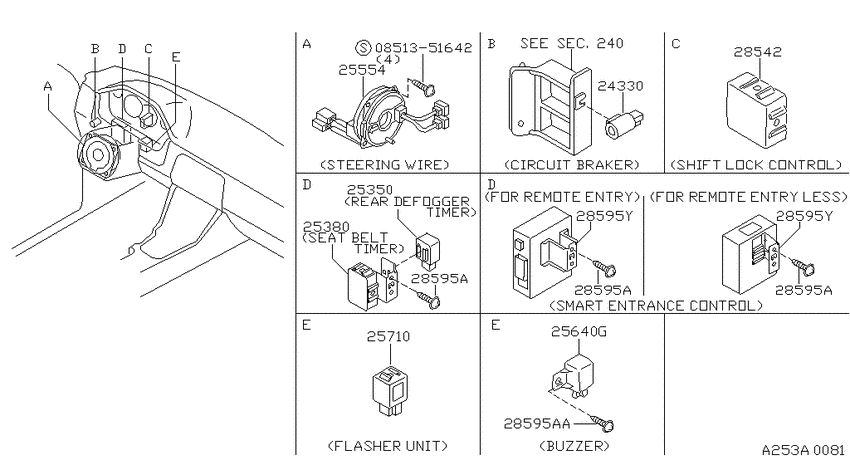

Electrical unit (1994-02-01 ~ ; INST; FED.C +CAL.C) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851351642
|
0851351642
0851351642 SCREWTAPPING |
0851351642 |
from US $0.44 |
||
|
24330
|
24330
24330C9960 Breaker Assy-Circuit, Power Window1994-02-01 ~ ; FED.C +CAL.C; , |
24330C9960 |
from US $13.10 |
||
|
25350
|
25350
28456-C9900 Timer Assy-Rear Defogger1994-02-01 ~ ; FED.C.STD +CAL.C.STD; , |
28456-C9900 |
US $159.84 |
||
|
25380
|
25380
28470-70F00
Timer Assy-Seat Belt
1994-02-01 ~ ; FED.C.STD +CAL.C.STD; , |
28470-70F00 |
— | ||
|
25554
|
25554
25554-70F25
Wire Assy-Steering Air Bag
1994-02-01 ~ 1995-07-01; FED.C +CAL.C; , |
25554-70F25 |
— | ||
|
25554
|
25554
25554-70F26
Wire Assy-Steering Air Bag
1995-07-01 ~ ; FED.C +CAL.C; , |
25554-70F26 |
— | ||
| replacement | |||||
|
25554
|
25554
2555470F85
Wire Assy-Steering Air Bag
1995-07-01 ~ ; FED.C +CAL.C; , |
2555470F85 |
— | ||
|
25640G
|
25640G
26350-0E000 BUZZER ASSY1996-07-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
26350-0E000 |
US $42.91 |
||
|
25710
|
25710
25731-41B00 Flasher Unit1994-02-01 ~ ; FED.C +CAL.C; , |
25731-41B00 |
US $38.88 |
||
|
28595A
|
28595A
01466-00022 Bolt1994-02-01 ~ ; FED.C +CAL.C; , |
01466-00022 |
from US $0.78 |
||
|
28595A
|
28595A
0145100581 SCREW1996-07-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
0145100581 |
from US $0.78 |
||
|
28595A
|
28595A
01466-00022 Bolt1994-02-01 ~ ; FED.C +CAL.C; , |
01466-00022 |
from US $0.78 |
||
|
28595A
|
28595A
0145100581 SCREW1996-07-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
0145100581 |
from US $0.78 |
||
|
28595A
|
28595A
01466-00022 Bolt1994-02-01 ~ ; FED.C +CAL.C; , |
01466-00022 |
from US $0.78 |
||
|
28595A
|
28595A
0145100581 SCREW1996-07-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
0145100581 |
from US $0.78 |
||
|
28595AA
|
28595AA
0145100581 SCREW1996-07-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
0145100581 |
from US $0.78 |
||
|
28595Y
|
28595Y
28595-70F00
Controller Assy-Entry Card
1994-02-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
28595-70F00 |
— | ||
|
28595Y
|
28595Y
28595-70F00
Controller Assy-Entry Card
1994-02-01 ~ ; *FED.C.STD +*CAL.C.STD; F/DR LOCK-SAFETY |
28595-70F00 |
— | ||
