Component List 240SX
Front seat (1994-02-01 ~ ; LH SEAT; FED.C +CAL.C)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0812082028	0812082028 08120-82028 Bolt-hexagon	08120-82028	—
	replacement
0812082028	0812082028 081208201E Bolt-hexagon	081208201E	US $2.21
0812082028	0812082028 08120-82028 Bolt-hexagon	08120-82028	—
	replacement
0812082028	0812082028 081208201E Bolt-hexagon	081208201E	US $2.21
0812082028	0812082028 08120-82028 Bolt-hexagon	08120-82028	—
	replacement
0812082028	0812082028 081208201E Bolt-hexagon	081208201E	US $2.21
0812082028	0812082028 08120-82028 Bolt-hexagon	08120-82028	—
	replacement
0812082028	0812082028 081208201E Bolt-hexagon	081208201E	US $2.21
081270201E	081270201E 081270201E Bolt-hexagon	081270201E	—
081270201E	081270201E 081270201E Bolt-hexagon	081270201E	—
0834040642	0834040642 0834040642 ｽｸﾘﾕ-,ﾏｼﾝ	0834040642	—
0843051642	0843051642 08430-51642 SCREWMACHINE	08430-51642	—
0854051042	0854051042 08540-51042 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08540-51042	US $2.36
86400	86400 86400-65F70 ﾍﾂﾄﾞﾚｽﾄｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄ 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; ,	86400-65F70	US $233.28
86400	86400 86400-70F05 Head rest assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; ,	86400-70F05	—
86400	86400 86400-70F10 Head rest assy-front seat 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; F/LEATHER SEAT	86400-70F10	—
86400	86400 86400-70F20 ﾍﾂﾄﾞﾚｽﾄｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄ 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; F/LEATHER SEAT	86400-70F20	US $297.36
86400	86400 86400-72F01 Head rest assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; ,	86400-72F01	—
86400	86400 86400-80F00 ﾍﾂﾄﾞﾚｽﾄｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄ 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; ,	86400-80F00	US $233.28
87050	87050 87050-70F05 Seat assy-front,lh 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; ,	87050-70F05	—
87050	87050 87050-70F06 Seat assy-front,lh 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; ,	87050-70F06	—
87050	87050 87050-70F15 Seat assy-front,lh 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; F/LEATHER SEAT	87050-70F15	—
87050	87050 87050-70F20 Seat assy-front,lh 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; F/LEATHER SEAT	87050-70F20	—
87050	87050 87050-70F70 Seat assy-front,lh 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; ,	87050-70F70	—
87050	87050 87050-81F00 Seat assy-front,lh 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; ,	87050-81F00	—
87300MA	87300MA 87350-65F70 ｸﾂｼﾖﾝｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄ 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87350-65F70	US $2,156
87300MA	87300MA 87350-70F05 Cushion assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87350-70F05	—
87300MA	87300MA 87350-70F06 Cushion assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87350-70F06	—
87300MA	87300MA 87350-70F10 Cushion assy-front seat 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; LH F/LEATHER SEAT	87350-70F10	—
87300MA	87300MA 87350-70F20 Cushion assy-front seat 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87350-70F20	—
87300MA	87300MA 87350-81F00 Cushion assy-front seat 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; LH	87350-81F00	—
87301MA	87301MA 87351-65F00 ﾌﾚ-ﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄｸﾂｼﾖﾝ 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; LH	87351-65F00	US $318.60
87301MA	87301MA 87351-80F00 ﾌﾚ-ﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄｸﾂｼﾖﾝ 1996-07-01 ~ ; FED.C +CAL.C; LH	87351-80F00	US $331.34
87311QA	87311QA 87361-65F00 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄｼ-ﾄｸﾂｼﾖﾝ 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; LH	87361-65F00	US $250.56
87311QA	87311QA 87361-80F00 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄｼ-ﾄｸﾂｼﾖﾝ 1996-07-01 ~ ; FED.C +CAL.C; LH	87361-80F00	US $217.44
87320NA	87320NA 87370-65F70 ﾄﾘﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄｸﾂｼﾖﾝ 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87370-65F70	US $662.69
87320NA	87320NA 87370-70F05 Trim assy-front seat cushion 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87370-70F05	—
87320NA	87320NA 87370-70F06 Trim assy-front seat cushion 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87370-70F06	—
87320NA	87320NA 87370-70F10 Trim assy-front seat cushion 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; LH F/LEATHER SEAT	87370-70F10	—
87320NA	87320NA 87370-70F20 Trim assy-front seat cushion 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87370-70F20	—
87320NA	87320NA 87370-81F00 Trim assy-front seat cushion 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; LH	87370-81F00	—
87346M	87346M 87610-72F00 ﾉﾌﾞ,ｼ-ﾄﾊﾞﾂｸ 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; F/LEATHER SEAT	87610-72F00	US $6.62
87380	87380 87380-65F00 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾂｼﾖﾝﾌﾛﾝﾄｼ-ﾄ lh 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; ,	87380-65F00	US $25.49
87380	87380 87380-70F01 Finisher assy-cushion,front seat lh 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	87380-70F01	—
87380	87380 87380-80F00 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾂｼﾖﾝﾌﾛﾝﾄｼ-ﾄ lh 1996-07-01 ~ ; FED.C +CAL.C; ,	87380-80F00	—
87381N	87381N 87381-70F00 Finisher-cushion,front seat inner lh 1994-02-01 ~ ; FED.C +CAL.C; ,	87381-70F00	—
87381N	87381N 87381-70F01 Finisher-cushion,front seat inner lh 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	87381-70F01	—
87418+A	87418+A 87468-0M005 Knob-Reclining Device 1996-07-01 ~ ; FED.C +CAL.C; LH	87468-0M005	—
87418+A	87418+A 8746865F00 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; LH	8746865F00	US $6.09
87418+A	87418+A 87468-70F01 Knob-reclining device 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; LH	87468-70F01	—
87452	87452 87451-70F00 Device-reclining,lh seat outside 1994-02-01 ~ ; FED.C +CAL.C; ,	87451-70F00	—
87460	87460 87452-70F00 Hinge-lh seat,inside 1994-02-01 ~ ; FED.C +CAL.C; ,	87452-70F00	—
87501A	87501A 0112101301 BOLT 1994-02-01 ~ ; FED.C +CAL.C; ,	0112101301	—
	replacement
87501A	87501A 08127-0252G Bolt-hexagon 1994-02-01 ~ ; FED.C +CAL.C; ,	08127-0252G	US $3.06
87505+B	87505+B 87558-65F00 ｶﾊﾞ-,ｼ-ﾄｽﾗｲﾄﾞ 1994-02-01 ~ ; FED.C +CAL.C; LH INNER	87558-65F00	—
	replacement
87505+B	87505+B 87558-85F00 ｶﾊﾞ-,ｼ-ﾄｽﾗｲﾄﾞ 1994-02-01 ~ ; FED.C +CAL.C; LH INNER	87558-85F00	—
87505+B	87505+B 87558-65F01 Cover-seat slide 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; LH INNER	87558-65F01	—
87505+C	87505+C 87559-65F00 ｶﾊﾞ-,ｼ-ﾄｽﾗｲﾄﾞ 1994-02-01 ~ ; FED.C +CAL.C; LH OUTER	87559-65F00	—
	replacement
87505+C	87505+C 87559-85F00 ｶﾊﾞ-,ｼ-ﾄｽﾗｲﾄﾞ 1994-02-01 ~ ; FED.C +CAL.C; LH OUTER	87559-85F00	—
87505+C	87505+C 87559-65F01 Cover-seat slide 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; LH OUTER	87559-65F01	—
87532	87532 87532-50Y00 ﾜｲﾔ,ﾚﾘ-ｽﾞ 1994-02-01 ~ ; FED.C +CAL.C; ,	87532-50Y00	US $7.78
87551	87551 87552-65F00 ｽﾗｲﾄﾞ,lh ｼ-ﾄｲﾝｻｲﾄﾞ 1994-02-01 ~ ; FED.C +CAL.C; ,	87552-65F00	US $88.56
87552	87552 87551-70F00 Slide-lh seat,outside 1994-02-01 ~ ; FED.C +CAL.C; ,	87551-70F00	—
87560	87560 87560-35F00 ｽﾌﾟﾘﾝｸﾞ,ﾍﾙﾊﾟ- 1994-02-01 ~ ; FED.C +CAL.C; RH&LH	87560-35F00	US $8.35
87600MA	87600MA 87600-65F70 ﾊﾞﾂｸｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄ 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87600-65F70	US $2,156
87600MA	87600MA 87600-70F05 Back assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87600-70F05	—
87600MA	87600MA 87600-70F06 Back assy-front seat 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87600-70F06	—
87600MA	87600MA 87600-81F00 Back assy-front seat 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; LH	87600-81F00	—
87600MA	87600MA 87650-70F15 Back assy-front seat 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; LH F/LEATHER SEAT	87650-70F15	—
87600MA	87600MA 87650-70F20 Back assy-front seat 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87650-70F20	—
87601MA	87601MA 87601-70F05 ﾌﾚ-ﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄﾊﾞﾂｸ 1994-02-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87601-70F05	US $262.08
87601MA	87601MA 87651-72F05 Frame assy-front seat back 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87651-72F05	—
87602	87602 876022J000 Holder Assy-Headrest, Lock 1998-04-01 ~ ; FED.C +CAL.C; ,	876022J000	from US $4.03
87602	87602 87602-65F00 Holder Assy-Headrest, Lock 1994-02-01 ~ 1998-04-01; FED.C +CAL.C; ,	87602-65F00	US $4.18
87602	87602 87602-70F01 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞﾚｽﾄﾛﾂｸ 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	87602-70F01	US $4.61
87603	87603 8760365F00 Holder Assy-Headrest, Free 1994-02-01 ~ ; FED.C +CAL.C; ,	8760365F00	from US $4.18
87603	87603 87603-70F01 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞﾚｽﾄﾌﾘ- 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	87603-70F01	US $5.47
	replacement
87603	87603 H7603-70F01 Holder assy-headrest,free 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	H7603-70F01	—
87611QA	87611QA 87611-70F05 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄｼ-ﾄﾊﾞﾂｸ 1994-02-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87611-70F05	US $252
87611QA	87611QA 87661-70F15 Pad-front seat back 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87661-70F15	—
87620PA	87620PA 87620-65F70 ﾄﾘﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄﾊﾞﾂｸ 1995-07-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; LH	87620-65F70	US $662.69
87620PA	87620PA 87620-70F05 Trim assy-front seat back 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87620-70F05	—
87620PA	87620PA 87620-70F06 Trim assy-front seat back 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; LH	87620-70F06	—
87620PA	87620PA 87620-70F20 ﾄﾘﾑｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄｼ-ﾄﾊﾞﾂｸ 1994-09-01 ~ 1996-07-01; FED.C +CAL.C; LH F/LEATHER SEAT	87620-70F20	US $841.10
87620PA	87620PA 87620-81F00 Trim assy-front seat back 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; LH	87620-81F00	—
87620PA	87620PA 87670-70F15 Trim assy-front seat back 1994-02-01 ~ 1994-09-01; FED.C +CAL.C; LH F/LEATHER SEAT	87670-70F15	—

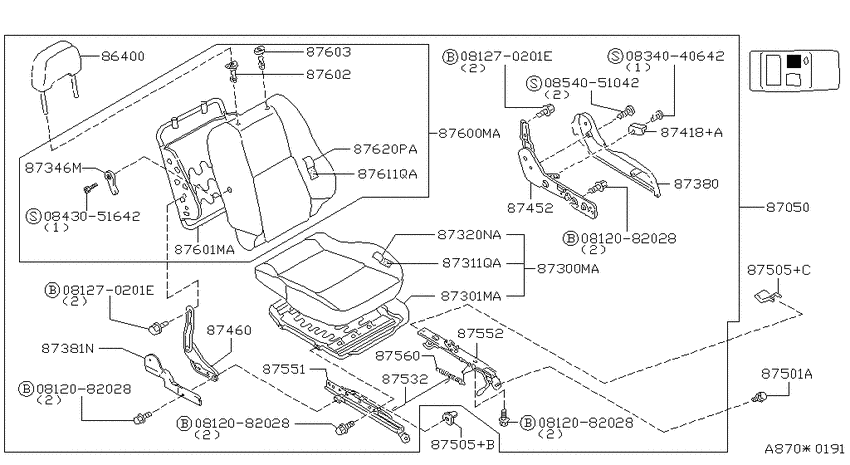

Front seat (1994-02-01 ~ ; LH SEAT; FED.C +CAL.C) Diagram Nissan 240SX U.S.A. 2307512-182385

Front seat (1994-02-01 ~ ; LH SEAT; FED.C +CAL.C) Diagram Nissan 240SX U.S.A. 2307512-182385
