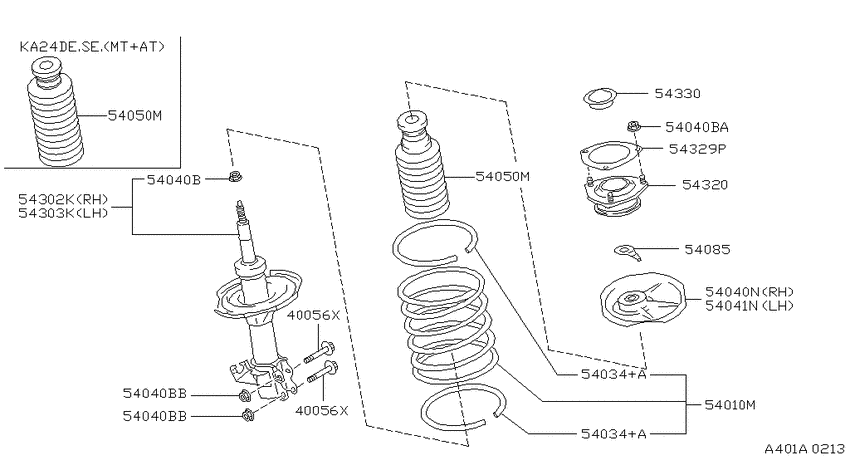

Front suspension (1994-02-01 ~ ; STRUT; KA24DE) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40056X
|
40056X
4005670T10 Bolt-Knuckle Arm1994-02-01 ~ ; KA24DE; , |
4005670T10 |
from US $4.37 |
||
|
40056X
|
40056X
4005670T10 Bolt-Knuckle Arm1994-02-01 ~ ; KA24DE; , |
4005670T10 |
from US $4.37 |
||
|
54010M
|
54010M
54010-69F05 ｽﾌﾟﾘﾝｸﾞ,ﾌﾛﾝﾄ1996-07-01 ~ ; KA24DE.MT; , |
54010-69F05 |
US $203.04 |
||
|
54034+A
|
54034+A
5403485E10 SEAT-RUBBER,FRONT SPRING1994-02-01 ~ 1996-07-01; KA24DE.MT; F/RH&LH |
5403485E10 |
US $10.54 |
||
|
54034+A
|
54034+A
5403485E10 SEAT-RUBBER,FRONT SPRING1994-02-01 ~ 1996-07-01; KA24DE.MT; F/RH&LH |
5403485E10 |
US $10.54 |
||
|
54040B
|
54040B
0122300301 NUT1995-02-01 ~ ; KA24DE; , |
0122300301 |
from US $2.02 |
||
|
54040B
|
54040B
0122500032 NUT-MOUNTING BOLT,LOWER1994-02-01 ~ 1995-02-01; KA24DE; , |
0122500032 |
from US $3.06 |
||
|
54040B
|
54040B
0122500231 NUT1994-02-01 ~ ; KA24DE; , |
0122500231 |
from US $0.59 |
||
|
54040B
|
54040B
0122300191 NUT1994-02-01 ~ ; KA24DE; , |
0122300191 |
from US $1.13 |
||
|
54040BA
|
54040BA
0122500231 NUT1994-02-01 ~ ; KA24DE; , |
0122500231 |
from US $0.59 |
||
|
54040BB
|
54040BB
0122300191 NUT1994-02-01 ~ ; KA24DE; , |
0122300191 |
from US $1.13 |
||
|
54040BB
|
54040BB
0122300191 NUT1994-02-01 ~ ; KA24DE; , |
0122300191 |
from US $1.13 |
||
|
54040N
|
54040N
54040-71L00 Seat-Front Spring1994-02-01 ~ ; KA24DE; , |
54040-71L00 |
US $28.08 |
||
|
54041N
|
54041N
54041-71L00 Seat-Front Spring1994-02-01 ~ ; KA24DE; , |
54041-71L00 |
US $28.08 |
||
|
54050M
|
54050M
54050-70T00 Bumper Assy-Bound1994-02-01 ~ ; KA24DE.STD.(MT+AT); , |
54050-70T00 |
US $27.79 |
||
|
54050M
|
54050M
54050-70T00 Bumper Assy-Bound1994-02-01 ~ ; KA24DE.STD.(MT+AT); , |
54050-70T00 |
US $27.79 |
||
|
54085
|
54085
5408535F00 Washer-Special1994-02-01 ~ ; KA24DE; , |
5408535F00 |
US $3.31 |
||
|
54302K
|
54302K
54302-70F25
Strut kit-front suspension,rh
1994-02-01 ~ ; KA24DE.STD.(MT+AT); STAMPED.54302-70F00 |
54302-70F25 |
— | ||
| replacement | |||||
|
54302K
|
54302K
54302-65F25 ｽﾄﾗﾂﾄ ｷﾂﾄ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ rh1994-02-01 ~ ; KA24DE.STD.(MT+AT); STAMPED.54302-70F00 |
54302-65F25 |
US $424.80 |
||
|
54303K
|
54303K
54303-70F25
Strut kit-front suspension,lh
1994-02-01 ~ ; KA24DE.STD.(MT+AT); STAMPED.54303-70F00 |
54303-70F25 |
— | ||
| replacement | |||||
|
54303K
|
54303K
5430365F25 ﾌﾛﾝﾄ ｽﾄﾗﾂﾄ lh1994-02-01 ~ ; KA24DE.STD.(MT+AT); STAMPED.54303-70F00 |
5430365F25 |
US $424.80 |
||
|
54320
|
54320
54320-65F00 ｲﾝｼﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘｰ,ｽﾄﾗﾂﾄ ﾏｳﾝﾃｲﾝｸﾞ1994-02-01 ~ ; KA24DE; , |
54320-65F00 |
US $103.10 |
||
|
54329P
|
54329P
5432958S00 Seal-Front Strut1994-02-01 ~ ; KA24DE; , |
5432958S00 |
US $6.15 |
||
|
54330
|
54330
54330-35F00
Cap-Front Strut Insulator
1994-02-01 ~ 1995-05-01; KA24DE; , |
54330-35F00 |
— | ||
| replacement | |||||
|
54330
|
54330
5433065F00 Cap-Front Strut Insulator1994-02-01 ~ 1995-05-01; KA24DE; , |
5433065F00 |
US $4.25 |
||
|
54330
|
54330
5433065F00 Cap-Front Strut Insulator1995-05-01 ~ ; KA24DE; , |
5433065F00 |
US $4.25 |
||
