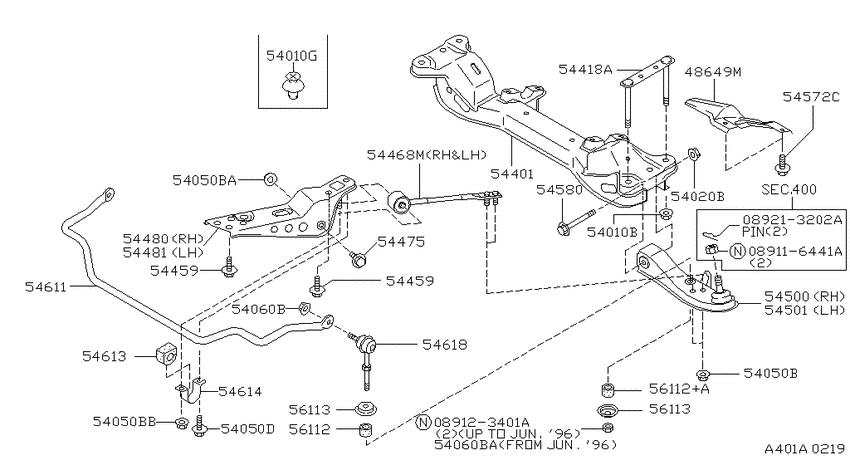

Front suspension (1994-02-01 ~ ; MEMBER & STABILIZER; KA24DE) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089123401A
|
089123401A
089123401A NUT-HEX |
089123401A |
US $3.46 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
from US $0.43 |
||
|
48649M
|
48649M
48649-70F00
Insulator-heat,steering
1994-02-01 ~ ; KA24DE; , |
48649-70F00 |
— | ||
|
54010B
|
54010B
0122500491 NUT ASSY-BEARING LOCK1994-02-01 ~ ; KA24DE; , |
0122500491 |
from US $3.06 |
||
|
54010G
|
54010G
6387801E10 CLIP1994-02-01 ~ ; KA24DE; , |
6387801E10 |
US $1.11 |
||
|
54020B
|
54020B
0122500491 NUT ASSY-BEARING LOCK1994-02-01 ~ ; KA24DE; , |
0122500491 |
from US $3.06 |
||
|
54050B
|
54050B
0122300281 NUT1994-02-01 ~ ; KA24DE; , |
0122300281 |
US $2.49 |
||
|
54050B
|
54050B
0122500491 NUT ASSY-BEARING LOCK1994-02-01 ~ ; KA24DE; , |
0122500491 |
from US $3.06 |
||
|
54050B
|
54050B
0122500062 NUT1994-02-01 ~ ; KA24DE; , |
0122500062 |
from US $1.67 |
||
|
54050BA
|
54050BA
0122500491 NUT ASSY-BEARING LOCK1994-02-01 ~ ; KA24DE; , |
0122500491 |
from US $3.06 |
||
|
54050BB
|
54050BB
0122500062 NUT1994-02-01 ~ ; KA24DE; , |
0122500062 |
from US $1.67 |
||
|
54050D
|
54050D
0112503161 BOLT1994-02-01 ~ ; KA24DE; , |
0112503161 |
from US $0.93 |
||
|
54060B
|
54060B
0122500062 NUT1994-02-01 ~ ; KA24DE; , |
0122500062 |
from US $1.67 |
||
|
54060B
|
54060B
0122300291 NUT1996-06-01 ~ ; KA24DE; , |
0122300291 |
from US $0.70 |
||
|
54060BA
|
54060BA
0122300291 NUT1996-06-01 ~ ; KA24DE; , |
0122300291 |
from US $0.70 |
||
|
54401
|
54401
54401-65F00 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ1994-02-01 ~ 1998-10-01; KA24DE; , |
54401-65F00 |
US $724.99 |
||
|
54401
|
54401
54401-85F00 ﾒﾝﾊﾞ- ｺﾝﾌﾟﾘ-ﾄ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ1998-10-01 ~ ; KA24DE; , |
54401-85F00 |
US $736.32 |
||
|
54418A
|
54418A
54418-35F00
Bolt
1994-02-01 ~ ; KA24DE; , |
54418-35F00 |
— | ||
| replacement | |||||
|
54418A
|
54418A
5441835F0A Bolt1994-02-01 ~ ; KA24DE; , |
5441835F0A |
US $12.20 |
||
|
54459
|
54459
54459-35F00 Bolt1994-02-01 ~ ; KA24DE; , |
54459-35F00 |
US $7.48 |
||
|
54459
|
54459
54459-65F00 ﾎﾞﾙﾄ1994-02-01 ~ ; KA24DE; , |
54459-65F00 |
US $4.75 |
||
|
54459
|
54459
54459-35F00 Bolt1994-02-01 ~ ; KA24DE; , |
54459-35F00 |
US $7.48 |
||
|
54459
|
54459
54459-65F00 ﾎﾞﾙﾄ1994-02-01 ~ ; KA24DE; , |
54459-65F00 |
US $4.75 |
||
|
54468M
|
54468M
54468-65F10 ﾛﾂﾄﾞ ｺﾝﾌﾟﾘ-ﾄ,ﾃﾝｼﾖﾝ ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ1994-02-01 ~ 1997-12-01; KA24DE; F/RH&LH |
54468-65F10 |
US $134.50 |
||
|
54468M
|
54468M
5446865F11 ﾛﾂﾄﾞ ｺﾝﾌﾟﾘ-ﾄ1997-12-01 ~ ; KA24DE; F/RH&LH |
5446865F11 |
US $146.88 |
||
|
54475
|
54475
5447515U00 Bolt-Tension Rod1994-02-01 ~ ; KA24DE; , |
5447515U00 |
US $49.48 |
||
|
54480
|
54480
54480-65F00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘｰ,ﾃﾝｼﾖﾝ ﾛﾂﾄﾞ1994-02-01 ~ ; KA24DE; , |
54480-65F00 |
US $96.62 |
||
| replacement | |||||
|
54480
|
54480
54480-65F01 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘｰ,ﾃﾝｼﾖﾝ ﾛﾂﾄﾞ1994-02-01 ~ ; KA24DE; , |
54480-65F01 |
US $115.06 |
||
|
54481
|
54481
54481-65F00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘｰ,ﾃﾝｼﾖﾝ ﾛﾂﾄﾞ lh1994-02-01 ~ ; KA24DE; , |
54481-65F00 |
US $96.62 |
||
| replacement | |||||
|
54481
|
54481
54481-65F01 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘｰ,ﾃﾝｼﾖﾝ ﾛﾂﾄﾞ lh1994-02-01 ~ ; KA24DE; , |
54481-65F01 |
US $115.06 |
||
|
54500
|
54500
5450065F00 LINK COMPLTRAN1994-02-01 ~ ; KA24DE; , |
5450065F00 |
US $337.75 |
||
|
54501
|
54501
5450165F00 ﾘﾝｸ ｺﾝﾌﾟﾘ-ﾄ1994-02-01 ~ ; KA24DE; , |
5450165F00 |
US $330.85 |
||
|
54572C
|
54572C
0143601081 SCREW1994-02-01 ~ ; KA24DE; , |
0143601081 |
US $2.45 |
||
|
54580
|
54580
5458015U00 Pin-Transverse Link1994-02-01 ~ ; KA24DE; , |
5458015U00 |
US $4.99 |
||
|
54611
|
54611
54611-65F10 ｽﾀﾋﾞﾗｲｻﾞ-,ﾌﾛﾝﾄ1996-07-01 ~ ; KA24DE; , |
54611-65F10 |
US $250.56 |
||
|
54613
|
54613
54613-70T07 Bush-Stabilizer1996-07-01 ~ ; KA24DE; , |
54613-70T07 |
from US $5.76 |
||
|
54614
|
54614
54614-65F00 Clamp-Stabilizer1994-02-01 ~ ; KA24DE; , |
54614-65F00 |
from US $10.80 |
||
|
54618
|
54618
5461856S11 Rod Assy-Connecting, Stabilizer1994-02-01 ~ ; KA24DE; , |
5461856S11 |
from US $23.59 |
||
|
56112
|
56112
56112A0100 Bush-Rear Stabilizer1994-02-01 ~ ; KA24DE; , |
56112A0100 |
from US $4.01 |
||
|
56112
|
56112
56112V0100 Stabilizer cushion1994-02-01 ~ ; KA24DE; , |
56112V0100 |
from US $1.67 |
||
|
56112+A
|
56112+A
56112V0100 Stabilizer cushion1994-02-01 ~ ; KA24DE; , |
56112V0100 |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
1994-02-01 ~ ; KA24DE; , |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer1994-02-01 ~ ; KA24DE; , |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-4U000 Washer-Special1998-12-01 ~ ; KA24DE; , |
56113-4U000 |
US $1.58 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
1994-02-01 ~ 1998-12-01; KA24DE; , |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special1994-02-01 ~ 1998-12-01; KA24DE; , |
561134U00A |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
1994-02-01 ~ ; KA24DE; , |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer1994-02-01 ~ ; KA24DE; , |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-4U000 Washer-Special1998-12-01 ~ ; KA24DE; , |
56113-4U000 |
US $1.58 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
1994-02-01 ~ 1998-12-01; KA24DE; , |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special1994-02-01 ~ 1998-12-01; KA24DE; , |
561134U00A |
from US $1.67 |
||
