Component List 240SX
Instrument panel, pad & cluster lid (1994-02-01 ~ ; INST PAD&CLUSTER LID; FED.C +CAL.C)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0060320930	0060320930 00603-20930 Rivet	00603-20930	—
085105122A	085105122A 08510-5122A SCREWTAPPING	08510-5122A	—
0852351212	0852351212 08523-51212 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08523-51212	—
0852351212	0852351212 08523-51212 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08523-51212	—
68100A	68100A 01456-00651 SCREW 1998-10-01 ~ ; FED.C +CAL.C; ,	01456-00651	US $4.16
68100A	68100A 01466-00171 SCREW 1994-04-01 ~ 1998-10-01; FED.C +CAL.C; ,	01466-00171	US $2.21
68153	68153 28038-65F00 Bracket-Radio 1996-07-01 ~ ; FED.C +CAL.C; ,	28038-65F00	—
68154	68154 28039-65F00 Bracket-Radio 1996-07-01 ~ 1998-08-01; FED.C +CAL.C; ,	28039-65F00	—
68154	68154 28039-65F10 ﾌﾞﾗｹﾂﾄ,ﾗｼﾞｵﾏｳﾝﾃｲﾝｸﾞ lh 1998-08-01 ~ ; FED.C +CAL.C; ,	28039-65F10	—
68196A	68196A 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68196A	68196A 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68196AA	68196AA 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68200	68200 68200-72F00 Panel & pad assy-instrument 1994-02-01 ~ ; FED.C +CAL.C; ,	68200-72F00	—
68200	68200 68200-72F01 Panel & pad assy-instrument 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68200-72F01	—
68210A	68210A 01121-06471 ﾎﾞﾙﾄ 1994-02-01 ~ 1994-04-01; FED.C +CAL.C; ,	01121-06471	—
68210B	68210B 68191-51E00 NUT 1994-02-01 ~ ; FED.C +CAL.C; ,	68191-51E00	—
	replacement
68210B	68210B 6819151E0A Nut 1994-02-01 ~ ; FED.C +CAL.C; ,	6819151E0A	US $1.39
68210E	68210E 9693840U10 Clip-Trim 1994-02-01 ~ ; FED.C +CAL.C; ,	9693840U10	US $2.45
68275	68275 9692440U00 Pocket-Console 1996-07-01 ~ ; FED.C +CAL.C; ,	9692440U00	US $6.94
68290M	68290M 68290-70F00 Lid assy-air bag 1994-02-01 ~ ; FED.C +CAL.C; ,	68290-70F00	—
68290M	68290M 68290-70F01 Lid assy-air bag 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68290-70F01	—
68360	68360 68360-10Y00 Plate-Identification Number 1994-02-01 ~ 1995-11-01; FED.C +CAL.C; ,	68360-10Y00	—
68360	68360 68360-10Y10 Plate-Identification Number 1995-11-01 ~ ; FED.C +CAL.C; ,	68360-10Y10	—
68420	68420 68240-70F00 Lid-cluster 1994-02-01 ~ ; FED.C +CAL.C; ,	68240-70F00	—
68420	68420 68240-70F01 Lid-cluster 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68240-70F01	—
68420	68420 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68420	68420 68420-65F00 ﾌｲﾆﾂｼﾔ-,ｲﾝｽﾄﾙﾒﾝﾄｻｲﾄﾞ rh 1996-07-01 ~ ; FED.C +CAL.C; ,	68420-65F00	—
68420	68420 68421-65F00 ﾌｲﾆﾂｼﾔ-,ｲﾝｽﾄﾙﾒﾝﾄｻｲﾄﾞ lh 1994-02-01 ~ 1996-07-01; FED.C +CAL.C; ,	68421-65F00	—
68420	68420 68421-65F01 Finisher-instrument side,rh 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68421-65F01	—
68420A	68420A 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68470	68470 68470-60M00 Mask-Radio 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; ,	68470-60M00	from US $9.21
68475M	68475M 6847535F00 Pocket-Deck 1996-07-01 ~ ; FED.C +CAL.C; ,	6847535F00	from US $17.19
68490N	68490N 68490-65F00 ﾌﾟﾗｸﾞ,ﾍﾞﾝﾁﾚ-ﾀ- 1994-02-01 ~ 1996-07-01; FED.C.STD +CAL.C.STD; ,	68490-65F00	US $13.82
68490N	68490N 68490-65F01 ﾌﾟﾗｸﾞ,ﾍﾞﾝﾁﾚ-ﾀ- 1994-02-01 ~ ; FED.C +CAL.C; ,	68490-65F01	US $13.82
68490NA	68490NA 68490-65F01 ﾌﾟﾗｸﾞ,ﾍﾞﾝﾁﾚ-ﾀ- 1994-02-01 ~ ; FED.C +CAL.C; ,	68490-65F01	US $13.82
68490Y	68490Y 68960-70F00 Mask-switch hole 1994-02-01 ~ 1995-08-01; FED.C.STD +CAL.C.STD; ,	68960-70F00	—
68490Y	68490Y 68960-70F01 Mask-switch hole 1994-02-01 ~ 1995-07-01; FED.C.STD +CAL.C.STD; ,	68960-70F01	—
68490Y	68490Y 68960-70F10 Mask-switch hole 1995-08-01 ~ ; FED.C.STD +CAL.C.STD; ,	68960-70F10	—
68491P	68491P 6896001F02 Mask-Rear Defogger 1994-02-01 ~ 1994-03-01; FED.C +CAL.C; ,	6896001F02	from US $2.52
68491P	68491P 6896064J10 Mask-Switch 1994-03-01 ~ 1996-07-01; FED.C +CAL.C; ,	6896064J10	from US $9.30
68520	68520 68260-65F00 ﾘﾂﾄﾞ,ｸﾗｽﾀ- 1994-02-01 ~ 1994-10-01; FED.C +CAL.C; ,	68260-65F00	—
	replacements
68520	68520 68260-65F10 ﾘﾂﾄﾞ,ｸﾗｽﾀ- 1994-02-01 ~ 1994-10-01; FED.C +CAL.C; ,	68260-65F10	US $86.26
68520	68520 68260-65F20 Panel-lwr,a 1994-02-01 ~ 1994-10-01; FED.C +CAL.C; ,	68260-65F20	US $119.08
68520	68520 68260-70F10 Lid-cluster 1994-10-01 ~ 1996-07-01; FED.C +CAL.C; ,	68260-70F10	—
68520	68520 68260-70F20 Lid-cluster 1996-07-01 ~ ; FED.C +CAL.C; ,	68260-70F20	US $114.31
68520	68520 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68520	68520 68191-51E00 NUT 1994-02-01 ~ ; FED.C +CAL.C; ,	68191-51E00	—
	replacement
68520	68520 6819151E0A Nut 1994-02-01 ~ ; FED.C +CAL.C; ,	6819151E0A	US $1.39
68520	68520 68370-15U00 Tape-Silencer, Instrument 1998-10-01 ~ ; FED.C +CAL.C; ,	68370-15U00	US $2.59
68520	68520 68370-65F00 Tape-Silent 1994-02-01 ~ 1998-10-01; FED.C +CAL.C; ,	68370-65F00	US $2.74
68520A	68520A 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68520B	68520B 68191-51E00 NUT 1994-02-01 ~ ; FED.C +CAL.C; ,	68191-51E00	—
	replacement
68520B	68520B 6819151E0A Nut 1994-02-01 ~ ; FED.C +CAL.C; ,	6819151E0A	US $1.39
68600	68600 68500-70F00 Box-glove 1994-02-01 ~ ; FED.C +CAL.C; ,	68500-70F00	—
68600	68600 68500-70F01 Box-glove 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68500-70F01	—
68600	68600 68500-82F00 Box-glove 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; F/DR TRIM-STD TYPE	68500-82F00	—
68600	68600 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68600	68600 01436-01041 Bolt 1994-02-01 ~ 1995-08-01; FED.C +CAL.C; ,	01436-01041	—
	replacement
68600	68600 081466162G Bolt-hexagon 1994-02-01 ~ 1995-08-01; FED.C +CAL.C; ,	081466162G	from US $0.67
68600A	68600A 0145100581 SCREW 1994-02-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68600A	68600A 01436-01041 Bolt 1994-02-01 ~ 1995-08-01; FED.C +CAL.C; ,	01436-01041	—
	replacement
68600A	68600A 081466162G Bolt-hexagon 1994-02-01 ~ 1995-08-01; FED.C +CAL.C; ,	081466162G	from US $0.67
68630	68630 686300M001 Lock Assy-Glove Box Lid 1996-07-01 ~ ; FED.C.STD +CAL.C.STD; F/DR TRIM-STD TYPE	686300M001	US $27.22
68630	68630 6863070F00 Lock Assy-Glove Box Lid 1994-02-01 ~ ; FED.C +CAL.C; ,	6863070F00	US $44.50
68630	68630 68630-70F01 Lock assy-glove box lid 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68630-70F01	—
68633AB	68633AB 0145100581 SCREW 1996-07-01 ~ ; FED.C +CAL.C; ,	0145100581	from US $0.80
68640	68640 68640-70F00 Striker-glove box lid 1994-02-01 ~ ; FED.C +CAL.C; ,	68640-70F00	—
68740P	68740P 68740-70F00 Grille-side defroster,rh 1994-02-01 ~ 1995-05-01; FED.C +CAL.C; ,	68740-70F00	—
68740P	68740P 68740-70F01 Grille-side defroster,rh 1994-02-01 ~ 1995-05-01; FED.C +CAL.C; ,	68740-70F01	—
68740P	68740P 68740-70F10 Grille-side defroster,rh 1995-05-01 ~ ; FED.C +CAL.C; ,	68740-70F10	—
68740P	68740P 68740-70F11 Grille-side defroster,rh 1995-05-01 ~ 1995-07-01; FED.C +CAL.C; ,	68740-70F11	—
68741P	68741P 68741-70F00 Grille-side defroster,lh 1994-02-01 ~ 1995-05-01; FED.C +CAL.C; ,	68741-70F00	—
68741P	68741P 68741-70F01 Grille-side defroster,lh 1994-02-01 ~ 1995-05-01; FED.C +CAL.C; ,	68741-70F01	—
68741P	68741P 68741-70F10 Grille-side defroster,lh 1995-05-01 ~ ; FED.C +CAL.C; ,	68741-70F10	—
68741P	68741P 68741-70F11 Grille-side defroster,lh 1995-05-01 ~ 1995-07-01; FED.C +CAL.C; ,	68741-70F11	—
68900B	68900B 68191-51E00 NUT 1994-02-01 ~ ; FED.C +CAL.C; ,	68191-51E00	—
	replacement
68900B	68900B 6819151E0A Nut 1994-02-01 ~ ; FED.C +CAL.C; ,	6819151E0A	US $1.39
68901	68901 68921-70F00 Cover-instrument lower,lh 1994-02-01 ~ ; FED.C +CAL.C; ,	68921-70F00	—
68901	68901 68921-70F01 Cover-instrument lower,lh 1994-02-01 ~ 1995-07-01; FED.C +CAL.C; ,	68921-70F01	—
96501	96501 68800-65F00 ｱｼﾕﾄﾚ-,ｲﾝｽﾄﾙﾒﾝﾄ 1994-02-01 ~ ; FED.C +CAL.C; ,	68800-65F00	—
98591M	98591M 9859289911 Label-Air Bag 1996-03-01 ~ 1997-03-01; FED.C +CAL.C; ,	9859289911	US $4.32
98591M	98591M 98590-79910 Label 1997-02-01 ~ ; FED.C +CAL.C; ,	98590-79910	—
98591MA	98591MA 98590-79910 Label 1997-02-01 ~ ; FED.C +CAL.C; ,	98590-79910	—

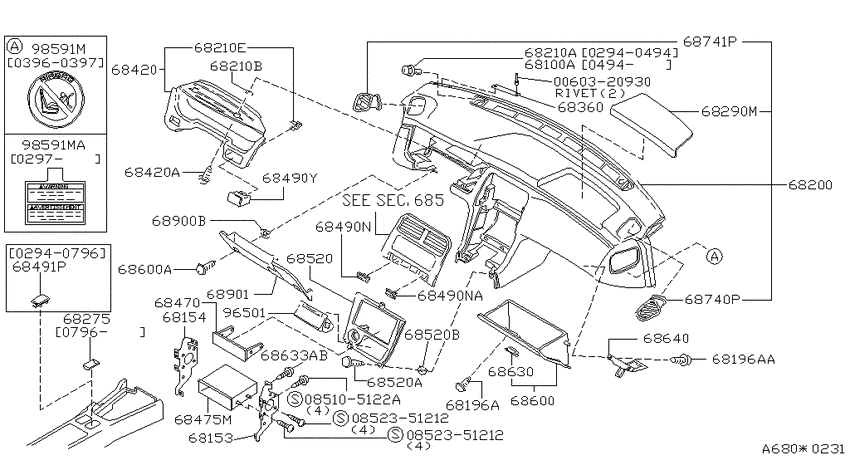

Instrument panel, pad & cluster lid (1994-02-01 ~ ; INST PAD&CLUSTER LID; FED.C +CAL.C) Diagram Nissan 240SX U.S.A. 2307477-182385

Instrument panel, pad & cluster lid (1994-02-01 ~ ; INST PAD&CLUSTER LID; FED.C +CAL.C) Diagram Nissan 240SX U.S.A. 2307477-182385
