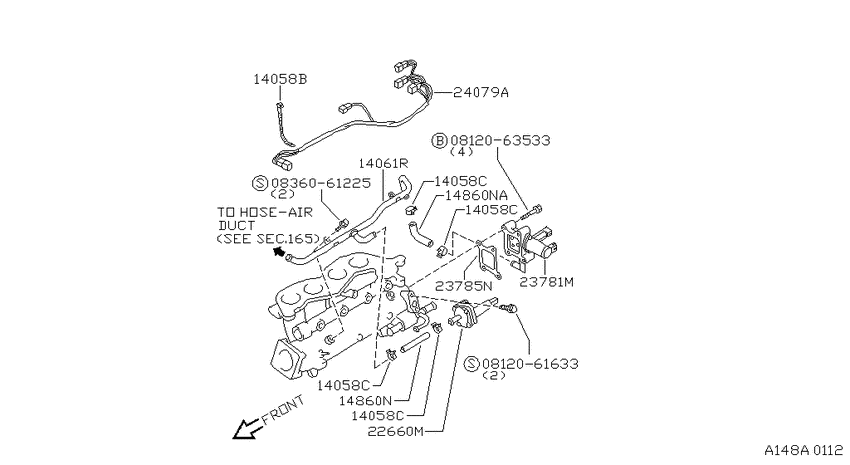

Secondary air system (1996-07-01 ~ ; KA24DE) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061633
|
0812061633
08120-61633
Bolt-hexagon
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F Bolt-hexagon |
08120-6161F |
from US $2.36 |
||
|
0812063533
|
0812063533
08120-63533
Bolt-hexagon
|
08120-63533 |
— | ||
|
0836061225
|
0836061225
08360-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61225 |
— | ||
|
14058B
|
14058B
01552-00481
CLAMP
1994-02-01 ~ 1995-07-01; KA24DE; , |
01552-00481 |
— | ||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
1994-02-01 ~ ; KA24DE; , |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
1994-02-01 ~ ; KA24DE; , |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
1994-02-01 ~ ; KA24DE; , |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
1994-02-01 ~ ; KA24DE; , |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
16439V500B |
from US $2.50 |
||
|
14061R
|
14061R
14061-53F02
Pipe-Air Regulator
1994-02-01 ~ 1995-01-01; KA24DE; , |
14061-53F02 |
— | ||
|
14061R
|
14061R
14061-70F00
Pipe-Air
1995-01-01 ~ 1995-07-01; KA24DE; , |
14061-70F00 |
— | ||
|
14061R
|
14061R
14061-72F01
Pipe-Air
1995-07-01 ~ ; KA24DE; , |
14061-72F01 |
— | ||
|
14860N
|
14860N
14099-53F01
Hose
1994-02-01 ~ 1995-07-01; KA24DE; , |
14099-53F01 |
— | ||
|
14860N
|
14860N
14099-72F10
Hose-Air
1995-07-01 ~ ; KA24DE; , |
14099-72F10 |
— | ||
|
14860N
|
14860N
14099-53F02
Hose-Air
1994-02-01 ~ ; KA24DE; , |
14099-53F02 |
— | ||
|
14860NA
|
14860NA
14099-53F02
Hose-Air
1994-02-01 ~ ; KA24DE; , |
14099-53F02 |
— | ||
|
22660M
|
22660M
22660-53F00
Iacv-Air Regulator
1994-02-01 ~ ; KA24DE; , |
22660-53F00 |
— | ||
|
23781M
|
23781M
23781-53F02
Iacv-Aac Valve
1994-02-01 ~ ; KA24DE; TOSOKU |
23781-53F02 |
— | ||
|
23781M
|
23781M
23781-53F12
Iacv-Aac Valve
1994-02-01 ~ ; KA24DE; UNISIA JECS |
23781-53F12 |
— | ||
|
23785N
|
23785N
2378540F00 Iacv-Aac Valve Gasket1994-02-01 ~ ; KA24DE; , |
2378540F00 |
from US $3.72 |
||
|
24079A
|
24079A
24079-54F01
Harness-Engine Sub
1994-02-01 ~ 1995-07-01; KA24DE; , |
24079-54F01 |
— | ||
| replacement | |||||
|
24079A
|
24079A
B4079-54F01
Harness-engine sub
1994-02-01 ~ 1995-07-01; KA24DE; , |
B4079-54F01 |
— | ||
|
24079A
|
24079A
24079-72F11
Harness-Engine Sub
1995-07-01 ~ ; KA24DE; , |
24079-72F11 |
— | ||
