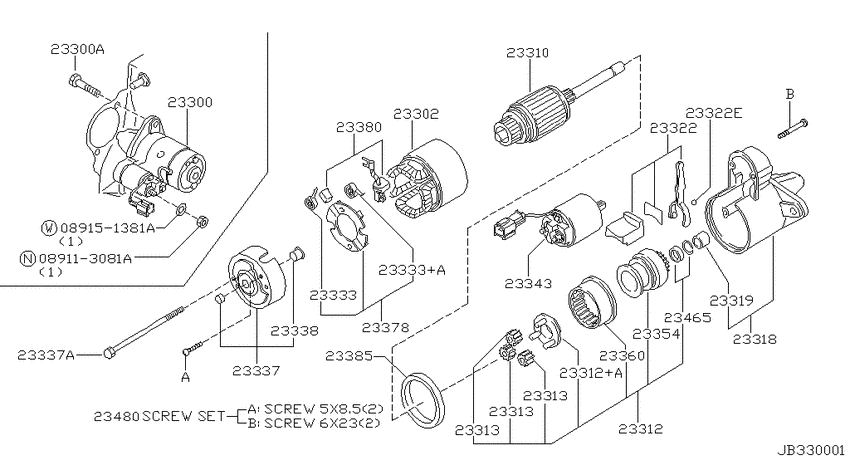

Starter motor (1994-02-01 ~ 1996-07-01; KA24DE) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
23300
|
23300
23300-53F11
Motor Assy-Starter
1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23300-53F11 |
— | ||
|
23300
|
23300
23300-72F10
Motor Assy-Starter
1996-07-01 ~ ; KA24DE; , |
23300-72F10 |
— | ||
|
23300
|
23300
0112103751 BOLT1994-02-01 ~ ; KA24DE.MT; , |
0112103751 |
US $6.05 |
||
|
23300
|
23300
0122100381 NUT1996-07-01 ~ ; KA24DE; , |
0122100381 |
from US $5.37 |
||
|
23300A
|
23300A
0112103751 BOLT1994-02-01 ~ ; KA24DE.MT; , |
0112103751 |
US $6.05 |
||
|
23302
|
23302
23302-42L70 Yoke Assy1996-07-01 ~ ; KA24DE; , |
23302-42L70 |
US $259.20 |
||
|
23310
|
23310
23310-01N11 Armature Assy1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23310-01N11 |
US $671.18 |
||
|
23310
|
23310
23310-W9811
Armature Assy
1996-07-01 ~ ; KA24DE; , |
23310-W9811 |
— | ||
|
23312
|
23312
23312-30R14
Pinion Assy
1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23312-30R14 |
— | ||
|
23312
|
23312
23312-53F11
Pinion Assy
1996-07-01 ~ ; KA24DE; , |
23312-53F11 |
— | ||
|
23312
|
23312
23312-30R20 Pinion Assy1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23312-30R20 |
US $210.24 |
||
|
23312
|
23312
23312-53F12
Pinion Assy
1996-07-01 ~ ; KA24DE; , |
23312-53F12 |
— | ||
|
23312+A
|
23312+A
23312-30R20 Pinion Assy1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23312-30R20 |
US $210.24 |
||
|
23312+A
|
23312+A
23312-53F12
Pinion Assy
1996-07-01 ~ ; KA24DE; , |
23312-53F12 |
— | ||
|
23313
|
23313
23361-42L70 Planet Gear1996-07-01 ~ ; KA24DE; , |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-42L70 Planet Gear1996-07-01 ~ ; KA24DE; , |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-42L70 Planet Gear1996-07-01 ~ ; KA24DE; , |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-53F11
Case Assy-Gear
1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23318-53F11 |
— | ||
|
23318
|
23318
23318-72F10
Case Assy-Gear
1996-07-01 ~ ; KA24DE; , |
23318-72F10 |
— | ||
|
23319
|
23319
23319M8011 Metal-Gear Case1996-07-01 ~ ; KA24DE; , |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift1996-07-01 ~ ; KA24DE; , |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever1996-07-01 ~ ; KA24DE; , |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever1996-07-01 ~ ; KA24DE; , |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush1994-02-01 ~ ; KA24DE; MITSUBISHI |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring1994-02-01 ~ ; KA24DE; MITSUBISHI |
23333-42L71 |
US $4.03 |
||
|
23333+A
|
23333+A
23333-42L71 Spring1994-02-01 ~ ; KA24DE; MITSUBISHI |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-72F10
Cover Assy-Rear
1996-07-01 ~ ; KA24DE; , |
23337-72F10 |
— | ||
|
23337
|
23337
23340-20P10 Bolt-Through1996-07-01 ~ ; KA24DE; , |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through1996-07-01 ~ ; KA24DE; , |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through1996-07-01 ~ ; KA24DE; , |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through1996-07-01 ~ ; KA24DE; , |
233404W01A |
US $4.03 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23338-01N10 |
US $9.94 |
||
|
23343
|
23343
23343-30R15
Switch Assy-Magnetic
1994-02-01 ~ 1996-07-01; KA24DE; MITSUBISHI |
23343-30R15 |
— | ||
|
23343
|
23343
23343-72F10
Switch Assy-Magnetic
1996-07-01 ~ ; KA24DE; , |
23343-72F10 |
— | ||
|
23354
|
23354
23354-30R10 Clutch Assy1996-07-01 ~ ; KA24DE; , |
23354-30R10 |
US $321.43 |
||
|
23360
|
23360
23360-30R12 Gear1996-07-01 ~ ; KA24DE; , |
23360-30R12 |
US $29.95 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush1996-07-01 ~ ; KA24DE; , |
23378-42L70 |
US $60.19 |
||
|
23380
|
23380
23380-30R10 Brush-Plus1996-07-01 ~ ; KA24DE; , |
23380-30R10 |
from US $8.93 |
||
|
23385
|
23385
23385-42L70 Packing Set1996-07-01 ~ ; KA24DE; , |
23385-42L70 |
US $4.18 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion1996-07-01 ~ ; KA24DE; , |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set1996-07-01 ~ ; KA24DE; , |
23480-M0110 |
US $9.36 |
||
