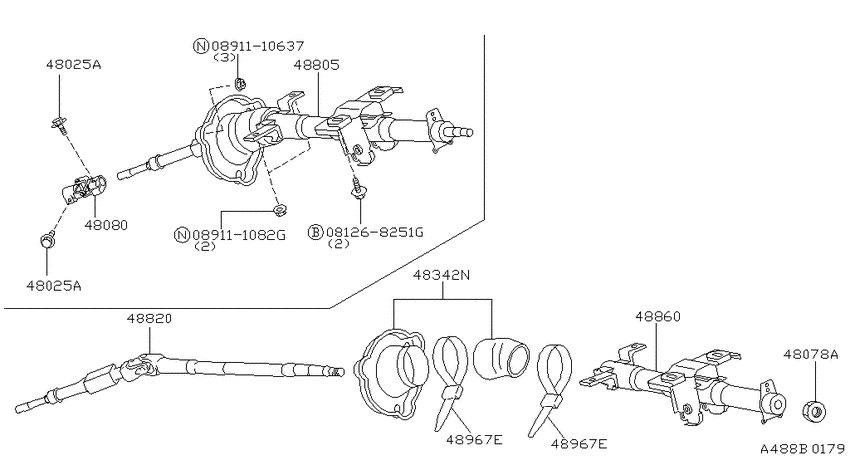

Steering column (1996-07-01 ~ ; F/DR TRIM-STD TYPE; *KA24DE.STD) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268251G
|
081268251G
08126-8251G Bolt-hexagon |
08126-8251G |
US $3.06 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
48025A
|
48025A
48935-4P000 Bolt1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-F6100
Bolt
1994-02-01 ~ 1996-07-01; KA24DE; , |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA1994-02-01 ~ 1996-07-01; KA24DE; , |
48935F610A |
US $2.21 |
||
|
48025A
|
48025A
48935-4P000 Bolt1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-F6100
Bolt
1994-02-01 ~ 1996-07-01; KA24DE; , |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA1994-02-01 ~ 1996-07-01; KA24DE; , |
48935F610A |
US $2.21 |
||
|
48078A
|
48078A
48938-70T10 Nut1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48938-70T10 |
US $1.73 |
||
|
48080
|
48080
48080-62J11 Joint Assy-Steering, Lower1998-06-01 ~ ; KA24DE; , |
48080-62J11 |
US $138.06 |
||
|
48080
|
48080
48080-71L01 Joint Assy-Steering Column, Lower1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48080-71L01 |
US $92.88 |
||
|
48342N
|
48342N
48950-40F63
Cover-Column Hole
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48950-40F63 |
— | ||
|
48805
|
48805
48805-70F00
Column assy-steering
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48805-70F00 |
— | ||
|
48805
|
48805
48805-70F81
Column assy-steering
1994-02-01 ~ ; KA24DE; , |
48805-70F81 |
— | ||
|
48820
|
48820
48820-70F83
Shaft Assy-Steering Column, Upper
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48820-70F83 |
— | ||
|
48860
|
48860
48850-70F00
Tube assy-jacket,upper
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
48850-70F00 |
— | ||
|
48860
|
48860
48860-70F81
Tube assy-jacket,upper
1994-02-01 ~ ; KA24DE; , |
48860-70F81 |
— | ||
|
48967E
|
48967E
24216-51E10
CLAMP-COVER
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
24216-51E10 |
— | ||
| replacement | |||||
|
48967E
|
48967E
2421610Y80 Clamp1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
2421610Y80 |
from US $4.42 |
||
|
48967E
|
48967E
24216-51E10
CLAMP-COVER
1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
24216-51E10 |
— | ||
| replacement | |||||
|
48967E
|
48967E
2421610Y80 Clamp1996-07-01 ~ ; *KA24DE.STD.(MT+AT); F/DR TRIM-STD TYPE |
2421610Y80 |
from US $4.42 |
||
