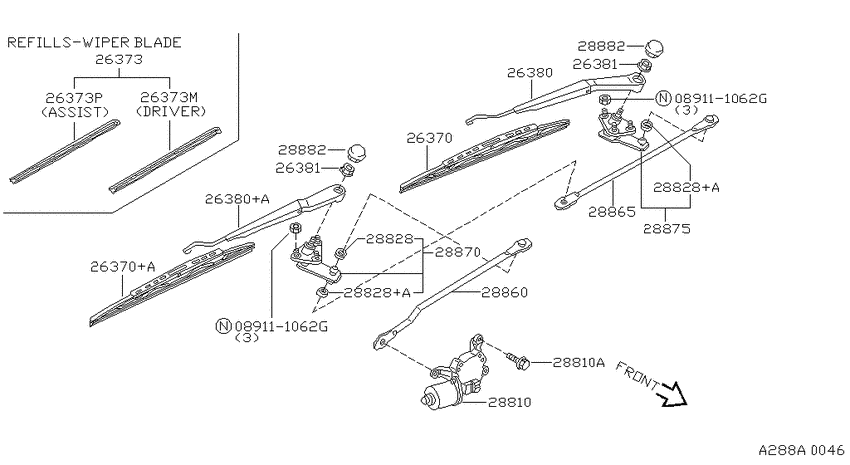

Windshield wiper (1994-02-01 ~ ; FED.C +CAL.C) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
26370
|
26370
28890-70F10
Blade Assy-Windshield Wiper
1994-02-01 ~ ; FED.C +CAL.C; F/DRIVER |
28890-70F10 |
— | ||
| replacement | |||||
|
26370
|
26370
B889M-52540
Blade assy-windshield wiper
1994-02-01 ~ ; FED.C +CAL.C; F/DRIVER |
B889M-52540 |
— | ||
|
26370
|
26370
28890-70F00
Blade Assy-Windshield Wiper
1994-02-01 ~ ; FED.C +CAL.C; F/ASSIST |
28890-70F00 |
— | ||
| replacement | |||||
|
26370
|
26370
B889070F70
ﾜｲﾊﾟ- ﾌﾞﾚ-ﾄﾞ
1994-02-01 ~ ; FED.C +CAL.C; F/ASSIST |
B889070F70 |
— | ||
|
26370+A
|
26370+A
28890-70F00
Blade Assy-Windshield Wiper
1994-02-01 ~ ; FED.C +CAL.C; F/ASSIST |
28890-70F00 |
— | ||
| replacement | |||||
|
26370+A
|
26370+A
B889070F70
ﾜｲﾊﾟ- ﾌﾞﾚ-ﾄﾞ
1994-02-01 ~ ; FED.C +CAL.C; F/ASSIST |
B889070F70 |
— | ||
|
26373
|
26373
B8891-52692
Refill-Wiper Blade
1994-02-01 ~ ; FED.C +CAL.C; , |
B8891-52692 |
— | ||
|
26373
|
26373
28895-79904
Refill-Wiper Blade, Driver
1994-02-01 ~ ; FED.C +CAL.C; , |
28895-79904 |
— | ||
|
26373
|
26373
28895-89903 Refill-Wiper Blade Assist1996-07-01 ~ ; *FED.C +*CAL.C; , |
28895-89903 |
from US $8.23 |
||
|
26373M
|
26373M
28895-79904
Refill-Wiper Blade, Driver
1994-02-01 ~ ; FED.C +CAL.C; , |
28895-79904 |
— | ||
|
26373P
|
26373P
28895-89903 Refill-Wiper Blade Assist1996-07-01 ~ ; *FED.C +*CAL.C; , |
28895-89903 |
from US $8.23 |
||
|
26380
|
26380
28881-70F00
Arm Assy-Windshield Wiper
1994-02-01 ~ 1995-08-01; FED.C +CAL.C; F/DRIVER |
28881-70F00 |
— | ||
|
26380
|
26380
28881-70F03
Arm Assy-Windshield Wiper
1995-08-01 ~ ; FED.C +CAL.C; F/DRIVER |
28881-70F03 |
— | ||
|
26380
|
26380
28886-70F00
Arm Assy-Windshield Wiper
1994-02-01 ~ 1995-08-01; FED.C +CAL.C; F/ASSIST |
28886-70F00 |
— | ||
|
26380
|
26380
28886-75F00
Arm Assy-Windshield Wiper
1995-08-01 ~ ; FED.C +CAL.C; F/ASSIST |
28886-75F00 |
— | ||
|
26380+A
|
26380+A
28886-70F00
Arm Assy-Windshield Wiper
1994-02-01 ~ 1995-08-01; FED.C +CAL.C; F/ASSIST |
28886-70F00 |
— | ||
|
26380+A
|
26380+A
28886-75F00
Arm Assy-Windshield Wiper
1995-08-01 ~ ; FED.C +CAL.C; F/ASSIST |
28886-75F00 |
— | ||
|
26381
|
26381
28889-50J00
Nut-Wiper Arm
1994-02-01 ~ 1996-07-01; FED.C +CAL.C; , |
28889-50J00 |
— | ||
| replacement | |||||
|
26381
|
26381
2888950J0A Nut-Wiper Arm1994-02-01 ~ 1996-07-01; FED.C +CAL.C; , |
2888950J0A |
from US $2 |
||
|
26381
|
26381
28889-50J10 Nut-Wiper Arm1996-07-01 ~ ; FED.C +CAL.C; , |
28889-50J10 |
US $3.46 |
||
|
26381
|
26381
28889-50J00
Nut-Wiper Arm
1994-02-01 ~ 1996-07-01; FED.C +CAL.C; , |
28889-50J00 |
— | ||
| replacement | |||||
|
26381
|
26381
2888950J0A Nut-Wiper Arm1994-02-01 ~ 1996-07-01; FED.C +CAL.C; , |
2888950J0A |
from US $2 |
||
|
26381
|
26381
28889-50J10 Nut-Wiper Arm1996-07-01 ~ ; FED.C +CAL.C; , |
28889-50J10 |
US $3.46 |
||
|
28810
|
28810
28810-70F00
Motor Assy-Windshield Wiper
1994-02-01 ~ 1996-07-01; FED.C +CAL.C; , |
28810-70F00 |
— | ||
|
28810
|
28810
28810-81F00
Motor Assy-Windshield Wiper
1996-07-01 ~ ; FED.C +CAL.C; , |
28810-81F00 |
— | ||
|
28810
|
28810
0143601741 SCREW1994-02-01 ~ ; FED.C +CAL.C; , |
0143601741 |
US $1.73 |
||
|
28810A
|
28810A
0143601741 SCREW1994-02-01 ~ ; FED.C +CAL.C; , |
0143601741 |
US $1.73 |
||
|
28828
|
28828
2882865F00 Seal-Ball Retainer1994-02-01 ~ ; FED.C +CAL.C; , |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer1996-07-01 ~ ; FED.C +CAL.C; , |
2882865F01 |
from US $1.83 |
||
|
28828+A
|
28828+A
2882865F01 Seal-Ball Retainer1996-07-01 ~ ; FED.C +CAL.C; , |
2882865F01 |
from US $1.83 |
||
|
28828+A
|
28828+A
2882865F01 Seal-Ball Retainer1996-07-01 ~ ; FED.C +CAL.C; , |
2882865F01 |
from US $1.83 |
||
|
28860
|
28860
28841-70F00
Link Assy-Connecting, No 1
1994-02-01 ~ ; FED.C +CAL.C; NO.1 |
28841-70F00 |
— | ||
|
28865
|
28865
2884265F00
Link Assy-Connecting, No 2
1994-02-01 ~ ; FED.C +CAL.C; NO.2 |
2884265F00 |
— | ||
|
28870
|
28870
2885065F00 Pivot Assy-Wiper, No 11994-02-01 ~ ; FED.C +CAL.C; NO.1 |
2885065F00 |
US $48.52 |
||
|
28875
|
28875
2886065F00
Pivot Assy-Wiper, No 2
1994-02-01 ~ ; FED.C +CAL.C; NO.2 |
2886065F00 |
— | ||
| replacement | |||||
|
28875
|
28875
2886085E00 PIVOT ASSY-WIPER,NO 21994-02-01 ~ ; FED.C +CAL.C; NO.2 |
2886085E00 |
US $50.45 |
||
|
28882
|
28882
2888250J00 Cover-Wiper Arm1994-02-01 ~ ; FED.C +CAL.C; , |
2888250J00 |
US $4.30 |
||
|
28882
|
28882
2888250J00 Cover-Wiper Arm1994-02-01 ~ ; FED.C +CAL.C; , |
2888250J00 |
US $4.30 |
||
