Component List 280ZX
Front fender & fitting (1978-06-01 ~ ; ALL)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0836361638	0836361638 08363-61638 ｽｸﾘﾕ-,ﾏｼﾝ	08363-61638	—
	replacement
0836361638	0836361638 083636161G Bolt	083636161G	US $2.36
0891110637	0891110637 0891110637 NUT	0891110637	from US $0.52
63100	63100 63100-P7100 Fender-front,rh 1979-10-01 ~ 1980-02-01; CAL.2S +CAL.4S; ,	63100-P7100	—
63100	63100 63100-P7200 Fender-front,rh 1978-07-01 ~ ; CAL.2S +CAL.4S; ,	63100-P7200	—
63100	63100 63100-P9110 Fender-front,rh 1981-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63100-P9110	—
	replacement
63100	63100 63100-P9130 Fender-front,rh 1981-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63100-P9130	—
63100	63100 01241-00071 NUT 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01241-00071	—
	replacement
63100	63100 0124100113 NUT-J 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	0124100113	from US $2.50
63100B	63100B 01241-00071 NUT 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01241-00071	—
	replacement
63100B	63100B 0124100113 NUT-J 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	0124100113	from US $2.50
63101	63101 63101-P7100 Fender-front,lh 1979-10-01 ~ 1980-02-01; CAL.2S +CAL.4S; ,	63101-P7100	—
63101	63101 63101-P7200 Fender-front,lh 1978-07-01 ~ ; CAL.2S +CAL.4S; ,	63101-P7200	—
63101	63101 63101-P7900 Fender-front,lh 1978-07-01 ~ ; CAL.2S +CAL.4S; ,	63101-P7900	—
	replacement
63101	63101 63101-P9130 Fender-front,lh 1978-07-01 ~ ; CAL.2S +CAL.4S; ,	63101-P9130	—
63101	63101 63101-P9110 Fender-front,lh 1981-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63101-P9110	—
	replacement
63101	63101 63101-P9130 Fender-front,lh 1981-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63101-P9130	—
63115	63115 62630-P7100 Case-head lamp 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	62630-P7100	—
63115	63115 62630-P7101 Case-head lamp 1978-07-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; FOR HEAD LAMP CLNR	62630-P7101	—
63115	63115 65857-P9001 Nut-flange 1980-12-01 ~ 1981-01-01; (FED.2S.L28ET +FED.4S.L28ET +CAL.2S.L28ET; ,	65857-P9001	—
63115	63115 65857-P9100 Nut-flange 1981-02-01 ~ ; (FED.2S.L28ET +FED.4S.L28ET +CAL.2S.L28ET; ,	65857-P9100	—
63115	63115 62630-P7100 Case-head lamp 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	62630-P7100	—
63115	63115 62630-P7101 Case-head lamp 1978-07-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; FOR HEAD LAMP CLNR	62630-P7101	—
63115	63115 65857-P9001 Nut-flange 1980-12-01 ~ 1981-01-01; (FED.2S.L28ET +FED.4S.L28ET +CAL.2S.L28ET; ,	65857-P9001	—
63115	63115 65857-P9100 Nut-flange 1981-02-01 ~ ; (FED.2S.L28ET +FED.4S.L28ET +CAL.2S.L28ET; ,	65857-P9100	—
63116	63116 62631-P7100 Case-head lamp 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	62631-P7100	—
63116	63116 62631-P7101 Case-head lamp 1978-07-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; FOR HEAD LAMP CLNR	62631-P7101	—
63116	63116 62631-P7100 Case-head lamp 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	62631-P7100	—
63116	63116 62631-P7101 Case-head lamp 1978-07-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; FOR HEAD LAMP CLNR	62631-P7101	—
63120A	63120A 01461-00081 SCREW 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01461-00081	US $1.73
63130	63130 63880-P7100 Protector-front fender,rh 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63880-P7100	—
63130	63130 01461-00061 SCREW 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01461-00061	US $2.21
63130	63130 63812-U5200 ｸﾘﾂﾌﾟ 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63812-U5200	—
63130A	63130A 01461-00061 SCREW 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01461-00061	US $2.21
63130F	63130F 63812-U5200 ｸﾘﾂﾌﾟ 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63812-U5200	—
63131	63131 63881-P7100 Protector-front fender,lh 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63881-P7100	—
63815M	63815M 63875-P7100 Spacer-front fender,rh 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63875-P7100	—
63816M	63816M 63876-P7100 Spacer-front fender,lh 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	63876-P7100	—
63830S	63830S 63820-P7125 Mudguard set-front 1978-07-01 ~ 1981-08-01; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#905)	63820-P7125	—
63830S	63830S 63820-P7126 Mudguard set-front 1978-07-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#650)	63820-P7126	—
63830S	63830S 63820-P7127 Mudguard set-front 1978-07-01 ~ 1981-08-01; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#638)	63820-P7127	—
63830S	63830S 63820-P7128 Mudguard set-front 1978-07-01 ~ 1981-08-01; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#216)	63820-P7128	—
63830S	63830S F3830-P9400 Mudguard set-front 1981-09-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#891)	F3830-P9400	—
63830S	63830S F3830-P9401 Mudguard set-front 1981-09-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#002)	F3830-P9401	—
63830S	63830S F3830-P9402 Mudguard set-front 1981-09-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#013)	F3830-P9402	—
63830S	63830S F3830-P9403 Mudguard set-front 1981-09-01 ~ ; "FED.2S +FED.4S +CAL.2S +CAL.4S; (#011)	F3830-P9403	—
63858E	63858E 96706-U0100 Grommet 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	96706-U0100	—
	replacement
63858E	63858E 0128100231 GROMMET 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	0128100231	US $0.97
63872	63872 63872-P7100 Mudguard-front 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; RH	63872-P7100	—
63872	63872 63873-P7100 Mudguard-front 1978-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; LH	63873-P7100	—
63872	63872 63873-P7900 Mudguard-front 1980-12-01 ~ ; (FED.2S.L28ET +FED.4S.L28ET +CAL.2S.L28ET; LH	63873-P7900	—

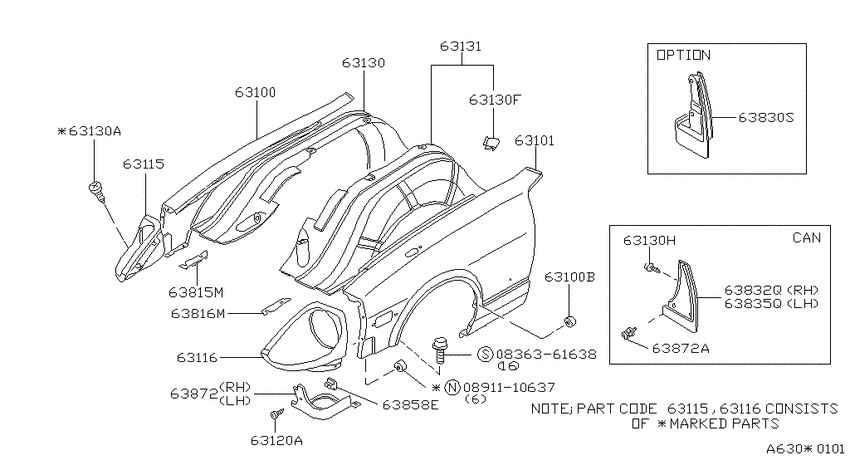

Front fender & fitting (1978-06-01 ~ ; ALL) Diagram Nissan 280ZX U.S.A. 2307256-182349

Front fender & fitting (1978-06-01 ~ ; ALL) Diagram Nissan 280ZX U.S.A. 2307256-182349
