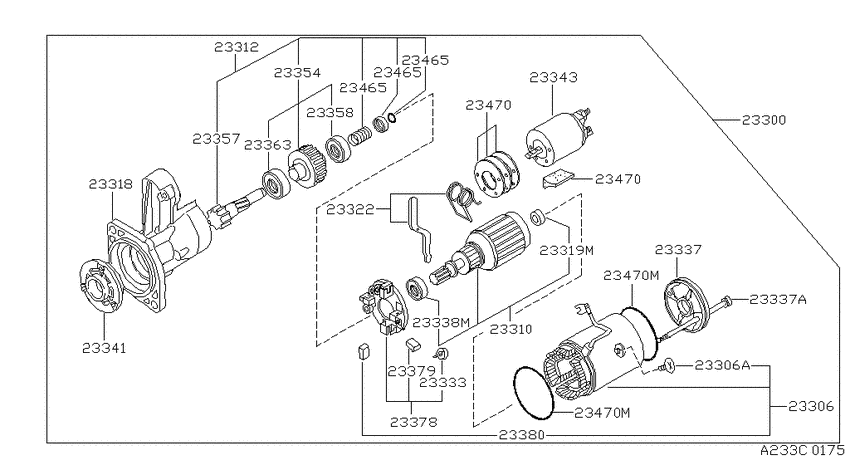

Starter motor (1979-04-01 ~ ; L28E+L28ET) Diagram Nissan 280ZX
- Year
- 1978 - 2011
- Sales region
- U.S.A.
- Engine
- L28ET
- transmission
- AT
- body
- 2S
- trim lvl
- J
- emission
- CAL
- gears/shift type
- F3
- style
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300N5903 Motor Assy-Starter1979-04-01 ~ ; L28E +L28ET; HITACHI S114-254D |
23300N5903 |
US $627.29 |
||
|
23306
|
23306
23306-N5900 Coil Assy-Field1978-07-01 ~ ; L28E +L28ET; , |
23306-N5900 |
US $115.78 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set1978-07-01 ~ ; L28E +L28ET; , |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set1978-07-01 ~ ; L28E +L28ET; , |
23305-09500 |
US $1.11 |
||
|
23310
|
23310
23310-N5900 Armature Assy1978-07-01 ~ ; L28E +L28ET; , |
23310-N5900 |
US $441.79 |
||
|
23312
|
23312
23312-N5900 Pinion Assy1978-07-01 ~ ; L28E +L28ET; , |
23312-N5900 |
US $286.56 |
||
|
23312
|
23312
23312-V5301 Pinion Assy1978-07-01 ~ ; L28E +L28ET; , |
23312-V5301 |
US $287.45 |
||
|
23318
|
23318
23318-N5902 Case Assy-Gear1979-04-01 ~ ; L28E +L28ET; , |
23318-N5902 |
US $54 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case1978-07-01 ~ ; L28E +L28ET; 1 |
23319-M4900 |
US $21.46 |
||
|
23322
|
23322
23322-N5900 Lever Set-Shift1978-07-01 ~ ; L28E +L28ET; , |
23322-N5900 |
US $6.91 |
||
|
23333
|
23333
23333-M4901 Spring-Brush1978-07-01 ~ ; L28E +L28ET; , |
23333-M4901 |
US $8.78 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear1979-04-01 ~ ; L28E +L28ET; , |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23340N5900 Bolt-Through1978-07-01 ~ ; L28E +L28ET; , |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through1978-07-01 ~ ; L28E +L28ET; , |
23340N5900 |
US $4.61 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover1978-07-01 ~ ; L28E +L28ET; 2 |
23338-M4900 |
from US $52.13 |
||
|
23341
|
23341
23341-N5900 Retainer-Bearing1979-04-01 ~ ; L28E +L28ET; , |
23341-N5900 |
US $36.86 |
||
|
23343
|
23343
23343-H9100
Switch Assy-Magnetic
1978-07-01 ~ ; L28E +L28ET; , |
23343-H9100 |
— | ||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
1978-07-01 ~ ; L28E +L28ET; , |
B3343-H9100 |
— | ||
|
23343
|
23343
23343-M4900
Switch Assy-Magnetic
1978-07-01 ~ ; L28E +L28ET; , |
23343-M4900 |
— | ||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
1978-07-01 ~ ; L28E +L28ET; , |
B3343-H9100 |
— | ||
|
23354
|
23354
23354-11M00 Shaft-Pinion1978-07-01 ~ ; L28E +L28ET; , |
23354-11M00 |
US $156.96 |
||
|
23354
|
23354
23354-M4901
Shaft-Pinion
1978-07-01 ~ ; L28E +L28ET; , |
23354-M4901 |
— | ||
|
23357
|
23357
23357-N5900 Pinion1978-07-01 ~ ; L28E +L28ET; , |
23357-N5900 |
US $112.46 |
||
|
23358
|
23358
23358-M4900 Bearing1978-07-01 ~ ; L28E +L28ET; 3 |
23358-M4900 |
US $38.88 |
||
|
23363
|
23363
23363-M4900 Bearing1978-07-01 ~ ; L28E +L28ET; 4 |
23363-M4900 |
US $17.57 |
||
|
23378
|
23378
23378M4901 Holder Assy-Brush1978-07-01 ~ ; L28E +L28ET; , |
23378M4901 |
US $47.81 |
||
|
23379
|
23379
23379-M4900 Brush-Minus1978-07-01 ~ ; L28E +L28ET; MINUS |
23379-M4900 |
US $10.08 |
||
|
23379
|
23379
23380-M4900 Brush-Plus1978-07-01 ~ ; L28E +L28ET; MINUS |
23380-M4900 |
US $10.37 |
||
|
23380
|
23380
23380-M4900 Brush-Plus1978-07-01 ~ ; L28E +L28ET; PLUS |
23380-M4900 |
US $10.37 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion1978-07-01 ~ ; L28E +L28ET; , |
23465-M4900 |
US $9.50 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion1978-07-01 ~ ; L28E +L28ET; , |
23465-M4900 |
US $9.50 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion1978-07-01 ~ ; L28E +L28ET; , |
23465-M4900 |
US $9.50 |
||
|
23470
|
23470
23470-U7500 Cover Set-Dust1978-07-01 ~ ; L28E +L28ET; 1 |
23470-U7500 |
US $11.52 |
||
|
23470
|
23470
23324-N5900 Plate-Center1979-04-01 ~ ; L28E +L28ET; D |
23324-N5900 |
US $6.34 |
||
|
23470
|
23470
23470-U7500 Cover Set-Dust1978-07-01 ~ ; L28E +L28ET; 1 |
23470-U7500 |
US $11.52 |
||
|
23470
|
23470
23324-N5900 Plate-Center1979-04-01 ~ ; L28E +L28ET; D |
23324-N5900 |
US $6.34 |
||
|
23470M
|
23470M
23324-N5900 Plate-Center1979-04-01 ~ ; L28E +L28ET; D |
23324-N5900 |
US $6.34 |
||
|
23470M
|
23470M
23324-N5900 Plate-Center1979-04-01 ~ ; L28E +L28ET; D |
23324-N5900 |
US $6.34 |
||
