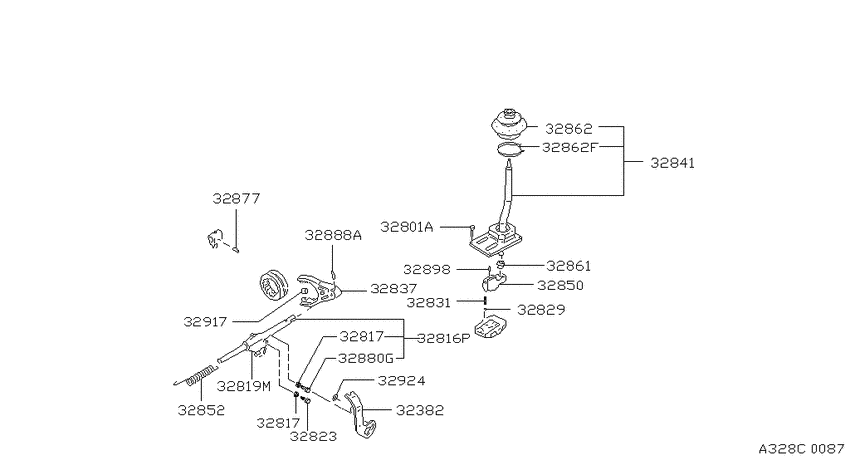

Transmission shift control (1982-01-01 ~ ; L28ET.MT.F5) Diagram Nissan 280ZX
- Year
- 1978 - 2011
- Sales region
- U.S.A.
- Engine
- L28ET
- transmission
- MT
- body
- 4S
- trim lvl
- J
- emission
- FED
- gears/shift type
- F5
- style
- T/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32382
|
32382
32382-E9500 Bracket-Reverse & Overdrive1978-07-01 ~ 1979-10-01; MT.F5; , |
32382-E9500 |
US $28.37 |
||
|
32382
|
32382
32382-E9800
Bracket-Reverse & Overdrive
1979-11-01 ~ ; MT.F5; , |
32382-E9800 |
— | ||
|
32382
|
32382
C2382-P9500 Bracket-Reverse & Overdrive1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2382-P9500 |
US $118.51 |
||
|
32801A
|
32801A
C2848-P9501 Screw1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2848-P9501 |
US $1.73 |
||
|
32816P
|
32816P
C2816-P9500 Rod-Fork, Overdrive1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2816-P9500 |
US $117.94 |
||
|
32817
|
32817
C2817-P9500 Roller-Cam, Shift Fork1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2817-P9500 |
US $8.21 |
||
|
32817
|
32817
C2817-P9500 Roller-Cam, Shift Fork1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2817-P9500 |
US $8.21 |
||
|
32819M
|
32819M
C2819-P9500 Fork-Shift, Reverse1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2819-P9500 |
US $149.76 |
||
|
32823
|
32823
C2292-P9501
Pin-Reverse Fork
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2292-P9501 |
— | ||
|
32829
|
32829
C2829-P9500 Ball-Check1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2829-P9500 |
US $0.86 |
||
|
32831
|
32831
C2852-P9500 Spring-Check Ball1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2852-P9500 |
US $2.45 |
||
|
32831
|
32831
32830-20100 Spring-Locking1978-07-01 ~ ; MT.F5; , |
32830-20100 |
US $0.82 |
||
|
32837
|
32837
C2821-P9500 Fork-Shift, Overdrive1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2821-P9500 |
US $59.04 |
||
|
32841
|
32841
32841-P6501
Lever Assy-Control
1978-07-01 ~ 1980-06-01; MT.F5; , |
32841-P6501 |
— | ||
|
32841
|
32841
32841-P6511
Lever Assy-Control
1980-07-01 ~ 1981-08-01; MT.F5; , |
32841-P6511 |
— | ||
|
32841
|
32841
32841-P6512
Lever Assy-Control
1981-09-01 ~ ; MT.F5; , |
32841-P6512 |
— | ||
|
32841
|
32841
C2840-P9500
Lever Assy-Control
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2840-P9500 |
— | ||
| replacement | |||||
|
32841
|
32841
C2840-P9600
Lever assy-control
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2840-P9600 |
— | ||
|
32850
|
32850
32850-E9501
Guide-Striking Rod
1978-07-01 ~ 1979-10-01; MT.F5; , |
32850-E9501 |
— | ||
|
32850
|
32850
32850-E9801
Guide-Striking Rod
1978-07-01 ~ 1979-10-01; MT.F5; , |
32850-E9801 |
— | ||
|
32850
|
32850
32850-E9850
Guide-Striking Rod
1979-11-01 ~ 1981-06-01; MT.F5; , |
32850-E9850 |
— | ||
|
32850
|
32850
32850-V2200
Guide-Striking Rod
1981-07-01 ~ 1983-04-01; MT.F5; , |
32850-V2200 |
— | ||
|
32850
|
32850
32850-V2201 Guide-Striking Rod1983-05-01 ~ ; MT.F5; , |
32850-V2201 |
US $89.42 |
||
|
32850
|
32850
C2850-P9500 Guide-Striking Rod1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2850-P9500 |
US $99.36 |
||
|
32850
|
32850
00933-33000
PLUG
1978-07-01 ~ 1981-05-01; MT.F5; , |
00933-33000 |
— | ||
|
32850
|
32850
32847-V2200
Pin-Stopper
1981-06-01 ~ ; MT.F5; , |
32847-V2200 |
— | ||
|
32850
|
32850
32858-U6700 Seal-O Ring, Striking Rod1978-07-01 ~ ; MT.F5; , |
32858-U6700 |
US $1.60 |
||
|
32852
|
32852
32852-24901 Spring-Return1978-07-01 ~ ; MT.F5; , |
32852-24901 |
US $2.64 |
||
|
32852
|
32852
C2852-P9501 Spring-Return1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2852-P9501 |
US $20.30 |
||
|
32861
|
32861
32861H7301 Bush-Control Lever1981-09-01 ~ ; MT.F5; , |
32861H7301 |
from US $1.52 |
||
|
32861
|
32861
32861N4200 Bush-Control Lever1978-07-01 ~ 1981-08-01; MT.F5; , |
32861N4200 |
US $4.16 |
||
|
32861
|
32861
C2853-P9500 Bush-Control Lever1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2853-P9500 |
US $2.45 |
||
|
32862
|
32862
32862E9300 Boot-Control Lever1978-07-01 ~ 1981-08-01; MT.F5; , |
32862E9300 |
from US $3.88 |
||
|
32862
|
32862
32862-E9800
Boot-Control Lever
1981-09-01 ~ ; MT.F5; , |
32862-E9800 |
— | ||
| replacement | |||||
|
32862
|
32862
32862-E9801 Boot-Control Lever1981-09-01 ~ ; MT.F5; , |
32862-E9801 |
US $4.42 |
||
|
32862
|
32862
C2862-P9500 Boot-Control Lever1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2862-P9500 |
US $11.66 |
||
| replacement | |||||
|
32862
|
32862
C2862-P9501
Boot-control lever
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2862-P9501 |
— | ||
|
32862
|
32862
C2863-P9500 Retainer-Boot Lower1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2863-P9500 |
US $4.18 |
||
|
32862F
|
32862F
C2863-P9500 Retainer-Boot Lower1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2863-P9500 |
US $4.18 |
||
|
32877
|
32877
C2917-P9500
Pin-Striking Arm
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2917-P9500 |
— | ||
|
32880G
|
32880G
C2292-P9500 Pin-Lever1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2292-P9500 |
US $2.45 |
||
|
32888A
|
32888A
C2849-P9500
Pin-Retaining
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2849-P9500 |
— | ||
|
32898
|
32898
C2849-P9500
Pin-Retaining
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2849-P9500 |
— | ||
|
32917
|
32917
C2806-P9500
Pin-Spring, Retaining
1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2806-P9500 |
— | ||
|
32924
|
32924
C2384-P9500 Ring-Retaining, Cross Shaft1982-01-01 ~ ; L28ET.MT.F5; USA MAKE |
C2384-P9500 |
US $2.45 |
||
