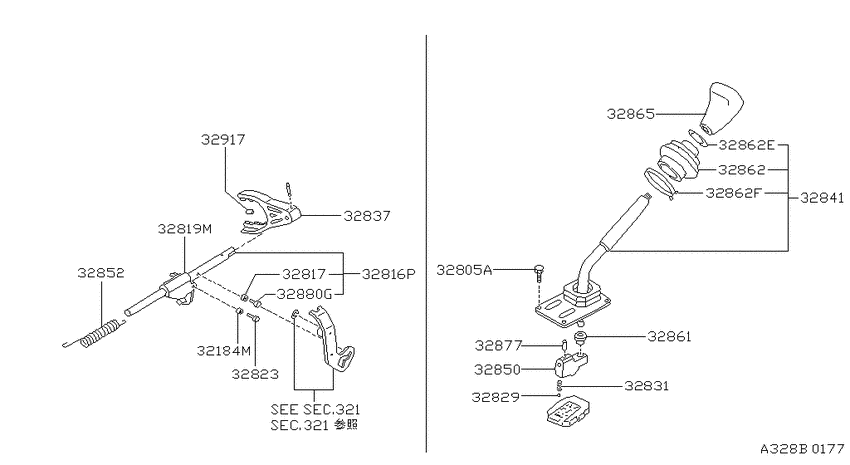

Transmission shift control (1983-05-01 ~ ; (FS5R90A)(T-5); VG30T.MT.F5) Diagram Nissan 300ZX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- VG30T
- transmission
- MT
- body
- 2S
- trim lvl
- SS
- emission
- FED
- gears/shift type
- F5
- style
- T/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32184M
|
32184M
C2817-P9500 Roller-Cam, Shift Fork1983-07-01 ~ ; VG30T.MT.F5; , |
C2817-P9500 |
US $8.21 |
||
|
32805A
|
32805A
C2848-P9501 Screw1983-07-01 ~ ; VG30T.MT.F5; , |
C2848-P9501 |
US $1.73 |
||
|
32816P
|
32816P
32816-01G11 Rod-Fork, Overdrive1986-09-01 ~ ; VG30T.MT.F5; |
32816-01G11 |
US $20.88 |
||
| replacement | |||||
|
32816P
|
32816P
32816-01G20 Rod-Fork, Overdrive1986-09-01 ~ ; VG30T.MT.F5; |
32816-01G20 |
US $21.31 |
||
|
32816P
|
32816P
C2816-P9500 Rod-Fork, Overdrive1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2816-P9500 |
US $117.94 |
||
|
32817
|
32817
C2817-P9500 Roller-Cam, Shift Fork1983-07-01 ~ ; VG30T.MT.F5; , |
C2817-P9500 |
US $8.21 |
||
|
32819M
|
32819M
C2819-P9500 Fork-Shift, Reverse1983-07-01 ~ ; VG30T.MT.F5; , |
C2819-P9500 |
US $149.76 |
||
|
32823
|
32823
C2292-P9502 ﾋﾟﾝ,ﾘﾊﾞ-ｽ ﾌｵ-ｸ1983-07-01 ~ ; VG30T.MT.F5; , |
C2292-P9502 |
US $2.45 |
||
|
32829
|
32829
32829-26760 Ball-Check1986-09-01 ~ ; VG30T.MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32829
|
32829
C2829-P9500 Ball-Check1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2829-P9500 |
US $0.86 |
||
|
32831
|
32831
32831-01G01 Spring-Check Ball1986-09-01 ~ ; VG30T.MT.F5; , |
32831-01G01 |
US $1.11 |
||
|
32831
|
32831
C2852-P9500 Spring-Check Ball1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2852-P9500 |
US $2.45 |
||
|
32831
|
32831
C2850-P9500 Guide-Striking Rod1983-07-01 ~ ; VG30T.MT.F5; , |
C2850-P9500 |
US $99.36 |
||
|
32837
|
32837
C2821-P9500 Fork-Shift, Overdrive1983-07-01 ~ ; VG30T.MT.F5; , |
C2821-P9500 |
US $59.04 |
||
|
32841
|
32841
32840-03G61
Lever assy-control
1986-09-01 ~ 1986-10-01; VG30T.MT.F5; , |
32840-03G61 |
— | ||
|
32841
|
32841
32840-03G62 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ1986-10-01 ~ 1988-07-01; VG30T.MT.F5; , |
32840-03G62 |
US $80.93 |
||
|
32841
|
32841
32840-03G63 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ1988-07-01 ~ ; VG30T.MT.F5; , |
32840-03G63 |
US $61.34 |
||
|
32841
|
32841
32840-06P01 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ1983-07-01 ~ 1984-03-01; VG30T.MT.F5; , |
32840-06P01 |
US $211.68 |
||
| replacement | |||||
|
32841
|
32841
C2840-06P02
Lever assy-control
1983-07-01 ~ 1984-03-01; VG30T.MT.F5; , |
C2840-06P02 |
— | ||
|
32841
|
32841
32840-06P02 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ1984-03-01 ~ 1986-09-01; VG30T.MT.F5; , |
32840-06P02 |
US $211.68 |
||
| replacement | |||||
|
32841
|
32841
C2840-06P02
Lever assy-control
1984-03-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2840-06P02 |
— | ||
|
32850
|
32850
C2850-P9500 Guide-Striking Rod1983-07-01 ~ ; VG30T.MT.F5; , |
C2850-P9500 |
US $99.36 |
||
|
32850
|
32850
C2848-P9500
Seal-O Ring, Control Arm
1983-07-01 ~ ; VG30T.MT.F5; , |
C2848-P9500 |
— | ||
|
32850
|
32850
32870V5003 Socket Assy-Control Lever1986-09-01 ~ ; VG30T.MT.F5; , |
32870V5003 |
from US $18.71 |
||
|
32852
|
32852
32852-01G01 Spring-Return1986-09-01 ~ ; VG30T.MT.F5; , |
32852-01G01 |
US $0.86 |
||
|
32852
|
32852
C2852-P9501 Spring-Return1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2852-P9501 |
US $20.30 |
||
|
32852
|
32852
32852-01G04 Spring-Return1986-09-01 ~ ; VG30T.MT.F5; , |
32852-01G04 |
US $0.86 |
||
|
32861
|
32861
3286101G00 Bush-Control Lever1986-09-01 ~ ; VG30T.MT.F5; , |
3286101G00 |
from US $4.42 |
||
|
32861
|
32861
C2853-P9500 Bush-Control Lever1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2853-P9500 |
US $2.45 |
||
|
32862
|
32862
32862V5001
Boot-Control Lever
1986-09-01 ~ ; VG30T.MT.F5; , |
32862V5001 |
— | ||
| replacement | |||||
|
32862
|
32862
3286205U00 Boot-Control Lever1986-09-01 ~ ; VG30T.MT.F5; , |
3286205U00 |
from US $6.66 |
||
|
32862
|
32862
C2862-P9500 Boot-Control Lever1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2862-P9500 |
US $11.66 |
||
| replacement | |||||
|
32862
|
32862
C2862-P9501
Boot-control lever
1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2862-P9501 |
— | ||
|
32862
|
32862
24216-V5000 Clip-Harness1986-09-01 ~ ; VG30T.MT.F5; , |
24216-V5000 |
US $2.49 |
||
|
32862
|
32862
C2864-P9500 ﾘﾃ-ﾅ-,ﾌﾞ-ﾂ ｱﾂﾊﾟ-1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2864-P9500 |
US $4.18 |
||
|
32862
|
32862
24216-V5010
Retainer-Boot Upper
1986-09-01 ~ ; VG30T.MT.F5; , |
24216-V5010 |
— | ||
| replacement | |||||
|
32862
|
32862
2421610Y80 Clamp1986-09-01 ~ ; VG30T.MT.F5; , |
2421610Y80 |
from US $4.42 |
||
|
32862
|
32862
C2863-P9500 Retainer-Boot Lower1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2863-P9500 |
US $4.18 |
||
|
32862E
|
32862E
24216-V5000 Clip-Harness1986-09-01 ~ ; VG30T.MT.F5; , |
24216-V5000 |
US $2.49 |
||
|
32862E
|
32862E
C2864-P9500 ﾘﾃ-ﾅ-,ﾌﾞ-ﾂ ｱﾂﾊﾟ-1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2864-P9500 |
US $4.18 |
||
|
32862F
|
32862F
24216-V5010
Retainer-Boot Upper
1986-09-01 ~ ; VG30T.MT.F5; , |
24216-V5010 |
— | ||
| replacement | |||||
|
32862F
|
32862F
2421610Y80 Clamp1986-09-01 ~ ; VG30T.MT.F5; , |
2421610Y80 |
from US $4.42 |
||
|
32862F
|
32862F
C2863-P9500 Retainer-Boot Lower1983-07-01 ~ 1986-09-01; VG30T.MT.F5; , |
C2863-P9500 |
US $4.18 |
||
|
32865
|
32865
32865-03P10
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
1984-08-01 ~ 1985-09-01; VG30T.MT.F5; (G) |
32865-03P10 |
— | ||
|
32865
|
32865
32865-03P11 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-1984-08-01 ~ 1986-09-01; VG30T.MT.F5; (B) |
32865-03P11 |
US $31.68 |
||
|
32865
|
32865
32865-03P12
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
1984-08-01 ~ 1986-09-01; VG30T.MT.F5; (A) |
32865-03P12 |
— | ||
|
32865
|
32865
32865-03P13 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-1984-08-01 ~ 1986-09-01; VG30T.MT.F5; (C) |
32865-03P13 |
US $31.68 |
||
|
32865
|
32865
32865-03P14
Knob-control lever
1985-09-01 ~ 1986-09-01; VG30T.MT.F5; (T) |
32865-03P14 |
— | ||
|
32865
|
32865
32865-04P00
Knob-control lever
1983-07-01 ~ 1984-08-01; VG30T.MT.F5; (G) |
32865-04P00 |
— | ||
|
32865
|
32865
32865-04P01
Knob-control lever
1983-07-01 ~ 1984-08-01; VG30T.MT.F5; (B) |
32865-04P01 |
— | ||
| replacement | |||||
|
32865
|
32865
32865-11C21
Knob-Control Lever
1983-07-01 ~ 1984-08-01; VG30T.MT.F5; (B) |
32865-11C21 |
— | ||
|
32865
|
32865
32865-04P02
Knob-control lever
1983-07-01 ~ 1984-08-01; VG30T.MT.F5; (A) |
32865-04P02 |
— | ||
|
32865
|
32865
32865-04P03
Knob-control lever
1983-07-01 ~ 1984-08-01; VG30T.MT.F5; (C) |
32865-04P03 |
— | ||
|
32865
|
32865
32865-11P00
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
1986-09-01 ~ ; VG30T.MT.F5; (G) SELECT BLACK |
32865-11P00 |
— | ||
|
32865
|
32865
32865-11P01 Knob-Hand Lever1986-09-01 ~ ; VG30T.MT.F5; (B) SELECT BLUE |
32865-11P01 |
US $31.68 |
||
|
32865
|
32865
32865-11P02
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
1986-09-01 ~ ; VG30T.MT.F5; (A) SELECT RED |
32865-11P02 |
— | ||
| replacement | |||||
|
32865
|
32865
32865-05S07
Knob-Hand Lever
1986-09-01 ~ ; VG30T.MT.F5; (A) SELECT RED |
32865-05S07 |
— | ||
|
32865
|
32865
32865-11P03 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-1986-09-01 ~ ; VG30T.MT.F5; (C) SELECT BROWN |
32865-11P03 |
US $31.68 |
||
|
32865
|
32865
32865-11P04 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-1986-09-01 ~ ; VG30T.MT.F5; (T) SELECT BLACK |
32865-11P04 |
US $31.68 |
||
|
32877
|
32877
C2849-P9500
Pin-Retaining
1983-07-01 ~ ; VG30T.MT.F5; , |
C2849-P9500 |
— | ||
|
32880G
|
32880G
C2292-06P03
Pin-lever
1983-07-01 ~ ; VG30T.MT.F5; , |
C2292-06P03 |
— | ||
|
32917
|
32917
C2806-P9500
Pin-Spring, Retaining
1983-07-01 ~ ; VG30T.MT.F5; , |
C2806-P9500 |
— | ||
