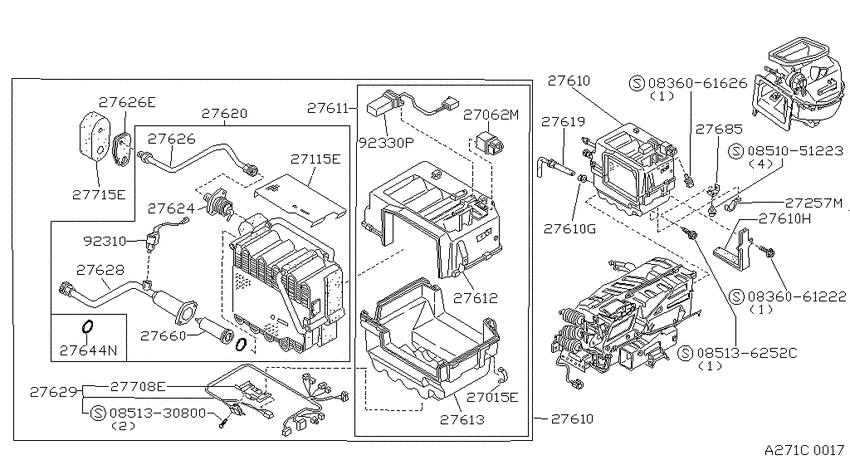

Cooling unit (1983-05-01 ~ ; AUTO AIR CON; GLL) Diagram Nissan 300ZX
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30
- transmission
- AT
- body
- 4S
- trim lvl
- GLL
- emission
- FED
- gears/shift type
- F4
- style
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836061222
|
0836061222
08360-61222
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61222 |
— | ||
|
0836061626
|
0836061626
0836061626
SCREW
|
0836061626 |
— | ||
|
0851051223
|
0851051223
08510-51223
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51223 |
— | ||
|
085136252C
|
085136252C
08513-6252C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-6252C |
— | ||
|
27015E
|
27015E
21476-C5500 Clip1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
21476-C5500 |
from US $3.07 |
||
|
27062M
|
27062M
25230-C9962
Relay
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
25230-C9962 |
— | ||
| replacement | |||||
|
27062M
|
27062M
25230C996B Relay1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
25230C996B |
from US $16.41 |
||
|
27115E
|
27115E
27284-01P00
Blind Assy
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; NET FOR AUTO AIR CON |
27284-01P00 |
— | ||
|
27257M
|
27257M
24210-06J02 Clip-Accel Wire1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; L=100 FOR AUTO AIR CON |
24210-06J02 |
US $3.74 |
||
|
27257M
|
27257M
24210-89944 Clamp1983-07-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; L=36+24 FOR AUTO AIR CON |
24210-89944 |
US $3.46 |
||
|
27257M
|
27257M
24211-89944
Clip-Wiring Harness
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; L=36+24 FOR AUTO AIR CON |
24211-89944 |
— | ||
| replacement | |||||
|
27257M
|
27257M
242108994A Clip1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; L=36+24 FOR AUTO AIR CON |
242108994A |
US $4.71 |
||
|
27610
|
27610
27270-17P05
Cooling Unit Assy
1985-01-01 ~ 1986-09-01; VG30.GLL; FOR AUTO AIR CON |
27270-17P05 |
— | ||
|
27610
|
27610
27270-21P10
Cooling Unit Assy
1986-09-01 ~ 1987-08-01; VG30.GLL; F/AUTO AIR CON |
27270-21P10 |
— | ||
|
27610
|
27610
27270-25P05
Cooling Unit Assy
1987-08-01 ~ ; VG30.GLL; F/AUTO AIR CON |
27270-25P05 |
— | ||
|
27610
|
27610
27271-01P05
Cooling Unit Assy
1983-07-01 ~ 1985-01-01; VG30.GLL; FOR AUTO AIR CON |
27271-01P05 |
— | ||
|
27610
|
27610
92591-01P00 Seal1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92591-01P00 |
US $4.61 |
||
|
27610
|
27610
27145-01P00
Band-Seal
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27145-01P00 |
— | ||
|
27610
|
27610
27270-17P05
Cooling Unit Assy
1985-01-01 ~ 1986-09-01; VG30.GLL; FOR AUTO AIR CON |
27270-17P05 |
— | ||
|
27610
|
27610
27270-21P10
Cooling Unit Assy
1986-09-01 ~ 1987-08-01; VG30.GLL; F/AUTO AIR CON |
27270-21P10 |
— | ||
|
27610
|
27610
27270-25P05
Cooling Unit Assy
1987-08-01 ~ ; VG30.GLL; F/AUTO AIR CON |
27270-25P05 |
— | ||
|
27610
|
27610
27271-01P05
Cooling Unit Assy
1983-07-01 ~ 1985-01-01; VG30.GLL; FOR AUTO AIR CON |
27271-01P05 |
— | ||
|
27610
|
27610
92591-01P00 Seal1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92591-01P00 |
US $4.61 |
||
|
27610
|
27610
27145-01P00
Band-Seal
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27145-01P00 |
— | ||
|
27610G
|
27610G
92591-01P00 Seal1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92591-01P00 |
US $4.61 |
||
|
27610H
|
27610H
27145-01P00
Band-Seal
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27145-01P00 |
— | ||
|
27611
|
27611
27285-21P05
Case Assy-Cooling Unit
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27285-21P05 |
— | ||
|
27611
|
27611
27290-01P00
Case Assy-Cooling Unit
1983-07-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27290-01P00 |
— | ||
|
27612
|
27612
27291-01P00
Case-Upper, Cooling Unit
1983-07-01 ~ 1985-07-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; UPPER FOR AUTO AIR CON |
27291-01P00 |
— | ||
|
27612
|
27612
27291-01P01
Case-Upper, Cooling Unit
1985-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; UPPER FOR AUTO AIR CON |
27291-01P01 |
— | ||
|
27613
|
27613
27287-01P00
Case-Lower, Cooling Unit
1983-07-01 ~ 1985-07-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; LOWER FOR AUTO AIR CON |
27287-01P00 |
— | ||
|
27613
|
27613
27287-01P01
Case-Lower, Cooling Unit
1985-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; LOWER FOR AUTO AIR CON |
27287-01P01 |
— | ||
|
27619
|
27619
92590-01P00 Hose-Drain1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92590-01P00 |
US $6.62 |
||
|
27620
|
27620
27280-21P05
Evaporator Assy-Cooler
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27280-21P05 |
— | ||
| replacement | |||||
|
27620
|
27620
27283-01P00
Evaporator assy-cooler
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27283-01P00 |
— | ||
|
27620
|
27620
27282-01P00
Evaporator Assy-Cooler
1983-07-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27282-01P00 |
— | ||
| replacement | |||||
|
27620
|
27620
B7280-21P05
Evaporator assy-cooler
1983-07-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
B7280-21P05 |
— | ||
|
27624
|
27624
92205-01P00
Valve Assy-Expansion
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92205-01P00 |
— | ||
|
27626
|
27626
27283-21P00
Tube-Evaporator Inlet
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27283-21P00 |
— | ||
|
27626
|
27626
92442-01P00 Tube-Evaporator Inlet1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92442-01P00 |
US $25.20 |
||
|
27626
|
27626
92580-01P00
Grommet-Evaporator Tube
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92580-01P00 |
— | ||
|
27626E
|
27626E
92580-01P00
Grommet-Evaporator Tube
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92580-01P00 |
— | ||
|
27628
|
27628
92451-01P00
Tube-Evaporator Outlet
1983-07-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92451-01P00 |
— | ||
|
27628
|
27628
92451-22P00
Tube-Evaporator Outlet
1986-09-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92451-22P00 |
— | ||
|
27629
|
27629
27580-01P21
Harness-Air Conditioner
1983-07-01 ~ 1984-07-01; VG30.GLL; FOR AUTO AIR CON |
27580-01P21 |
— | ||
|
27629
|
27629
27580-17P10
Harness-Air Conditioner
1984-07-01 ~ 1985-01-01; VG30.GLL; FOR AUTO AIR CON |
27580-17P10 |
— | ||
|
27629
|
27629
27580-17P11
Harness-Air Conditioner
1985-01-01 ~ 1986-09-01; VG30.GLL; FOR AUTO AIR CON |
27580-17P11 |
— | ||
|
27629
|
27629
27580-21P10
Harness-Air Conditioner
1986-09-01 ~ 1987-08-01; VG30.GLL; FOR AUTO AIR CON |
27580-21P10 |
— | ||
|
27629
|
27629
27580-25P10
Harness-Air Conditioner
1987-08-01 ~ ; VG30.GLL; FOR AUTO AIR CON |
27580-25P10 |
— | ||
|
27629
|
27629
27603-01P00
Harness-Air Conditioner
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27603-01P00 |
— | ||
|
27629
|
27629
27582-01P10 Harness-Air Conditioner1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27582-01P10 |
US $24.05 |
||
|
27629
|
27629
27585-01P20
Harness-Air Conditioner
1983-07-01 ~ 1985-01-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27585-01P20 |
— | ||
|
27629
|
27629
27585-17P00
Harness-Air Conditioner
1985-01-01 ~ 1986-09-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27585-17P00 |
— | ||
|
27629
|
27629
27585-21P00
Harness-Air Conditioner
1986-09-01 ~ 1987-08-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27585-21P00 |
— | ||
|
27629
|
27629
27585-25P00
Harness-Air Conditioner
1987-08-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27585-25P00 |
— | ||
|
27629
|
27629
27583-01P00 Harness-Air Conditioner1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
27583-01P00 |
US $12.10 |
||
|
27644N
|
27644N
92472N8200 Seal-O Ring1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=6 |
92472N8200 |
US $1.13 |
||
|
27644N
|
27644N
92473-N8200
O Ring
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92477AX005 Seal-O Ring1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644N
|
27644N
92474N8200 O Ring1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=10 |
92474N8200 |
US $1.15 |
||
|
27644N
|
27644N
92479-V0100
Seal-O Ring
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=33.5 |
92479-V0100 |
— | ||
|
27644N
|
27644N
J2785-01P00
Seal-O Ring
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=35 |
J2785-01P00 |
— | ||
|
27644N
|
27644N
J2785-01P01
Seal-O Ring
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; D=25.5 |
J2785-01P01 |
— | ||
|
27660
|
27660
92210-01P00 Valve-Suction Throttle1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92210-01P00 |
US $181.44 |
||
|
27660
|
27660
92720-51L60
Valve-Suction Throttle
1988-06-01 ~ ; SS +GL +GLL; , |
92720-51L60 |
— | ||
|
27685
|
27685
27299-01P00
Bracket-Clip
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27299-01P00 |
— | ||
|
27708E
|
27708E
27600-01P10
Bracket
1983-07-01 ~ 1985-01-01; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
27600-01P10 |
— | ||
|
27715E
|
27715E
92565-01P00
Grommet-Tube
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; , |
92565-01P00 |
— | ||
|
27715E
|
27715E
92585-01P00
Grommet-Tube
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92585-01P00 |
— | ||
|
92310
|
92310
92310-01P00
Switch assy-super heat
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92310-01P00 |
— | ||
|
92330P
|
92330P
92330-01P00
ﾀｲﾏ- ｱﾂｾﾝﾌﾞﾘ-,ｽ-ﾊﾟ- ﾋ-ﾄ
1983-07-01 ~ ; .FED.2S.GLL +FED.4S.GLL +CAL.2S.GLL +CAL.4S.GLL; FOR AUTO AIR CON |
92330-01P00 |
— | ||
