Component List 300ZX

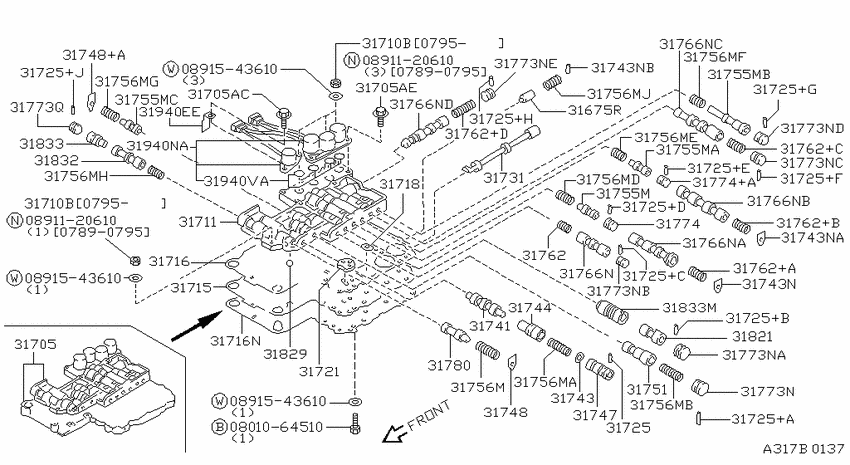

Control valve (atm) (1989-07-01 ~ 1990-07-01; UPPER RE4R03A; VG30DTT.AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0801064510	0801064510 08010-64510 Bolt-hexagon	08010-64510	—
0891120610	0891120610 0891120610 NUTHEX	0891120610	US $2.21
0891120610	0891120610 0891120610 NUTHEX	0891120610	US $2.21
0891543610	0891543610 08915-43610 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43610	—
0891543610	0891543610 08915-43610 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43610	—
0891543610	0891543610 08915-43610 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43610	—
31675R	31675R 3167541X07 Piston-Accumulator, Modifier 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	3167541X07	US $10.39
31705	31705 31705-51X16 Valve Assy-Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31705-51X16	US $1,057.75
31705	31705 01121-02911 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02911	US $1.93
31705	31705 01121-02951 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02951	US $1.73
31705	31705 01121-03071 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-03071	US $2.21
31705	31705 01121-03081 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-03081	US $1.93
31705	31705 01121-03521 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-03521	US $0.86
31705	31705 01121-02961 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02961	US $2.45
31705	31705 01121-02911 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02911	US $1.93
31705	31705 01121-02911 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02911	US $1.93
31705	31705 0112102941 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	0112102941	US $1.93
31705AC	31705AC 01121-03081 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-03081	US $1.93
31705AE	31705AE 01121-02961 BOLT 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	01121-02961	US $2.45
31711	31711 31711-41X00 Body-Upper, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31711-41X00	US $136.51
	replacement
31711	31711 31711-41X01 Body-Upper, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31711-41X01	—
31715	31715 31715-51X04 Plate-Separator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31715-51X04	US $25.63
31716	31716 31716-41X01 Gasket-Separator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; UPPER	31716-41X01	from US $6.35
31716	31716 31717-41X01 Gasket-Separator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; LOWER	31717-41X01	US $8.59
31716N	31716N 31717-41X01 Gasket-Separator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; LOWER	31717-41X01	US $8.59
31718	31718 31718-01X00 Plate-Support, Accumulator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31718-01X00	US $2.45
31721	31721 31721-41X01 Plate-Side 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31721-41X01	US $8.06
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725	31725 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+A	31725+A 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+B	31725+B 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+C	31725+C 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+D	31725+D 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+E	31725+E 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+F	31725+F 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+G	31725+G 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+H	31725+H 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31725+J	31725+J 31725-01X00 Pin-Parallel, Control Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31725-01X00	from US $1.40
31731	31731 31731-41X00 Valve-Manual 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31731-41X00	US $9.50
31741	31741 31741-41X02 Valve-Pressure Regulator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31741-41X02	US $19.95
31743	31743 31743-21X01 Seat-Spring, Pressure Regulator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31743-21X01	US $0.82
31743	31743 31743-41X01 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-41X01	US $0.86
31743	31743 31743-41X02 Plate-Retainer 1990-06-01 ~ 1990-07-01; VG30DTT.AT; ,	31743-41X02	US $0.86
31743	31743 31743-41X00 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-41X00	US $0.86
31743	31743 31743-31X01 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-31X01	US $5.33
31743N	31743N 31743-41X01 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-41X01	US $0.86
31743N	31743N 31743-41X02 Plate-Retainer 1990-06-01 ~ 1990-07-01; VG30DTT.AT; ,	31743-41X02	US $0.86
31743N	31743N 31743-41X00 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-41X00	US $0.86
31743N	31743N 31743-31X01 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-31X01	US $5.33
31743NA	31743NA 31743-41X00 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-41X00	US $0.86
31743NB	31743NB 31743-31X01 Plate-Retainer 1989-07-01 ~ 1990-06-01; VG30DTT.AT; ,	31743-31X01	US $5.33
31744	31744 31744-41X06 Plug-Pressure Regulator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31744-41X06	US $10.51
31747	31747 31745-41X06 Sleeve-Plug, Pressure Regulator 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31745-41X06	US $24.34
31748	31748 31748-21X00 Plate-Retainer 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31748-21X00	US $0.86
31748	31748 31748-21X00 Plate-Retainer 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31748-21X00	US $0.86
31748+A	31748+A 31748-21X00 Plate-Retainer 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31748-21X00	US $0.86
31751	31751 31751-41X02 Valve-Pressure Modifier 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31751-41X02	US $10.39
31755M	31755M 31772-21X00 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-21X00	US $6.94
31755M	31755M 31772-21X00 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-21X00	US $6.94
31755M	31755M 31772-41X06 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-41X06	US $9.84
31755M	31755M 31772-41X01 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-41X01	US $10.12
31755M	31755M 31772-27X00 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-27X00	US $11.09
31755M	31755M 31772-41X10 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-41X10	US $10.51
31755M	31755M 3177241X03 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	3177241X03	US $7.20
31755MA	31755MA 31772-21X00 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-21X00	US $6.94
31755MB	31755MB 31772-41X06 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-41X06	US $9.84
31755MC	31755MC 31772-41X01 Valve-Spool 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31772-41X01	US $10.12
31756M	31756M 31742-41X23 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X23	US $0.86
31756M	31756M 31742-41X24 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X24	US $2.36
31756M	31756M 31742-41X19 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X19	US $1.67
31756M	31756M 31756-41X00 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31756-41X00	US $0.82
31756M	31756M 31756-41X00 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31756-41X00	US $0.82
31756M	31756M 31742-41X20 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X20	US $2.45
31756M	31756M 31742-41X13 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X13	US $0.82
31756M	31756M 31742-41X22 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X22	US $0.82
31756M	31756M 31742-41X15 Spring-Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X15	US $0.86
31756M	31756M 31756-41X05 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31756-41X05	US $0.86
31756M	31756M 31742-41X08 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X08	US $0.86
31756M	31756M 31742-41X06 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X06	US $0.86
31756MA	31756MA 31742-41X24 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X24	US $2.36
31756MB	31756MB 31742-41X19 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X19	US $1.67
31756MD	31756MD 31756-41X00 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31756-41X00	US $0.82
31756ME	31756ME 31756-41X00 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31756-41X00	US $0.82
31756MF	31756MF 31742-41X20 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X20	US $2.45
31756MG	31756MG 31742-41X13 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X13	US $0.82
31756MH	31756MH 31742-41X22 Spring-Spool Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X22	US $0.82
31756MJ	31756MJ 31742-41X15 Spring-Valve 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31742-41X15	US $0.86
31762	31762 31762-41X00 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X00	US $0.97
31762	31762 31762-41X01 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X01	US $0.82
31762	31762 31762-41X01 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X01	US $0.82
31762	31762 31762-41X03 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X03	US $0.82
31762	31762 31762-41X04 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X04	US $0.82
31762+A	31762+A 31762-41X01 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X01	US $0.82
31762+B	31762+B 31762-41X01 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X01	US $0.82
31762+C	31762+C 31762-41X03 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X03	US $0.82
31762+D	31762+D 31762-41X04 Spring-Valve, Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31762-41X04	US $0.82
31766N	31766N 31766-41X00 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X00	—
31766N	31766N 31766-41X01 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X01	US $7.06
31766N	31766N 31766-41X02 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X02	US $6.79
31766N	31766N 31766-41X03 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X03	US $6.79
31766N	31766N 31766-41X04 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X04	US $6.79
31766NA	31766NA 31766-41X01 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X01	US $7.06
31766NB	31766NB 31766-41X02 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X02	US $6.79
31766NC	31766NC 31766-41X03 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X03	US $6.79
31766ND	31766ND 31766-41X04 Valve-Shift 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31766-41X04	US $6.79
31773N	31773N 31845-41X02 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X02	US $2.45
31773N	31773N 31845-41X04 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X04	US $2.45
31773N	31773N 31845-41X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X00	US $4.85
31773N	31773N 31845-41X01 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X01	US $5.04
31773N	31773N 31845-41X01 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X01	US $5.04
31773N	31773N 31845-41X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X00	US $4.85
31773N	31773N 31845-21X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-21X00	US $4.03
31773NA	31773NA 31845-41X04 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X04	US $2.45
31773NB	31773NB 31845-41X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X00	US $4.85
31773NC	31773NC 31845-41X01 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X01	US $5.04
31773ND	31773ND 31845-41X01 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X01	US $5.04
31773NE	31773NE 31845-41X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31845-41X00	US $4.85
31773Q	31773Q 31834-41X02 Plug-Lock Up Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31834-41X02	US $12.96
31774	31774 31774-21X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31774-21X00	US $5.04
31774	31774 31774-21X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31774-21X00	US $5.04
31774+A	31774+A 31774-21X00 Plug 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31774-21X00	US $5.04
31780	31780 31780-41X01 Valve-Relief 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31780-41X01	—
31821	31821 31821-41X07 Valve-Accumulator, Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31821-41X07	US $7.63
31829	31829 31829-68300 Ball-Steel 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31829-68300	US $1.73
31832	31832 31832-41X03 Valve-Lock Up Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31832-41X03	US $10.12
31833	31833 31833-41X03 Sleeve-Lock Up Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31833-41X03	US $12.33
31833	31833 31822-41X05 Sleeve-Accumulator Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31822-41X05	US $30.36
31833M	31833M 31822-41X05 Sleeve-Accumulator Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31822-41X05	US $30.36
31940NA	31940NA 31940-41X04 Solenoid Assy-Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	31940-41X04	—
	replacement
31940NA	31940NA 3194041X13 Solenoid Assy-Control 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	3194041X13	from US $159.41
31940VA	31940VA 3152641X09 Seal-O Ring 1989-07-01 ~ 1990-07-01; VG30DTT.AT; ,	3152641X09	US $2.36

Control valve (atm) (1989-07-01 ~ 1990-07-01; UPPER RE4R03A; VG30DTT.AT) Diagram Nissan 300ZX U.S.A. 2310652-182620

Control valve (atm) (1989-07-01 ~ 1990-07-01; UPPER RE4R03A; VG30DTT.AT) Diagram Nissan 300ZX U.S.A. 2310652-182620
