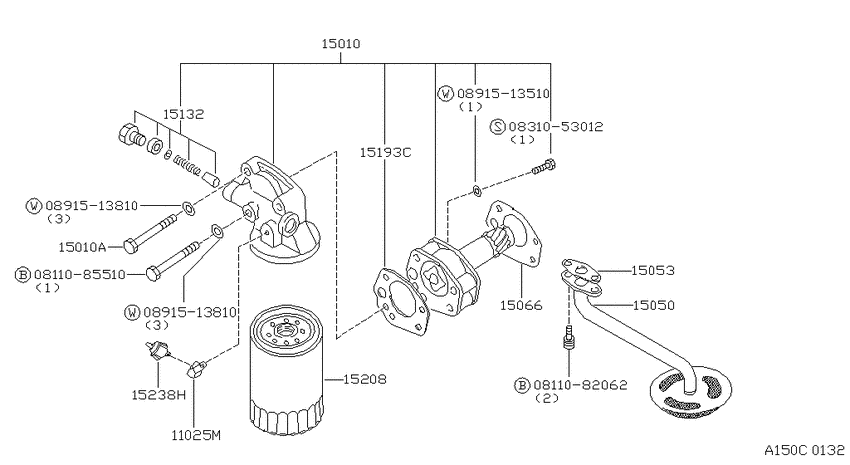

Lubricating system (1978-08-01 ~ ; A14S) Diagram Nissan 310/310GX
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Engine
- A14
- transmission
- MT
- body
- 4HB
- trim lvl
- GX
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811085510
|
0811085510
08110-85510
Bolt-hexagon
|
08110-85510 |
— | ||
|
0831053012
|
0831053012
08310-53012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-53012 |
— | ||
|
0891513510
|
0891513510
08915-13510
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13510 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
11025M
|
11025M
15040-M3001 Connector1978-08-01 ~ 1980-07-01; A14S; , |
15040-M3001 |
US $20.30 |
||
|
15010
|
15010
15010-M3000
Oil Pump Assy
1978-08-01 ~ 1979-03-01; A14S; , |
15010-M3000 |
— | ||
|
15010
|
15010
15010M3001 Pump Assy-Oil1979-04-01 ~ 1980-07-01; A14S; , |
15010M3001 |
US $145.55 |
||
|
15010
|
15010
15036-18000 Bolt1978-08-01 ~ 1980-07-01; A14S; , |
15036-18000 |
US $2.45 |
||
|
15010A
|
15010A
15036-18000 Bolt1978-08-01 ~ 1980-07-01; A14S; , |
15036-18000 |
US $2.45 |
||
|
15050
|
15050
15050-M3000
Strainer Assy-Oil
1978-08-01 ~ 1980-07-01; A14S; , |
15050-M3000 |
— | ||
|
15053
|
15053
15053-18000 Gasket-Oil Strainer1978-08-01 ~ 1980-07-01; A14S; , |
15053-18000 |
US $1.73 |
||
|
15066
|
15066
15066-H1000
Gasket-Oil Pump To Cylinder Block
1978-08-01 ~ 1980-07-01; A14S; , |
15066-H1000 |
— | ||
| replacement | |||||
|
15066
|
15066
15066-H1001 Gasket-Oil Pump To Cylinder Block1978-08-01 ~ 1980-07-01; A14S; , |
15066-H1001 |
US $4.30 |
||
|
15132
|
15132
15132-H1000 Valve Assy-Oil Regulator1978-08-01 ~ 1980-07-01; A14S; , |
15132-H1000 |
US $4.46 |
||
|
15193C
|
15193C
15025-18003 Gasket-Oil Pump1978-08-01 ~ 1980-07-01; A14S; , |
15025-18003 |
US $4.85 |
||
|
15208
|
15208
15208-H1011
Oil Filter Assy
1978-08-01 ~ 1980-07-01; A14S; , |
15208-H1011 |
— | ||
| replacement | |||||
|
15208
|
15208
15208H890C Oil Filter Assy1978-08-01 ~ 1980-07-01; A14S; , |
15208H890C |
US $13.26 |
||
|
15238H
|
15238H
25240-89910
Switch Assy-Oil Pressure
1978-08-01 ~ 1980-07-01; A14S; , |
25240-89910 |
— | ||
| replacement | |||||
|
15238H
|
15238H
25240G150A SW OIL PRESSURE1978-08-01 ~ 1980-07-01; A14S; , |
25240G150A |
US $18.43 |
||
