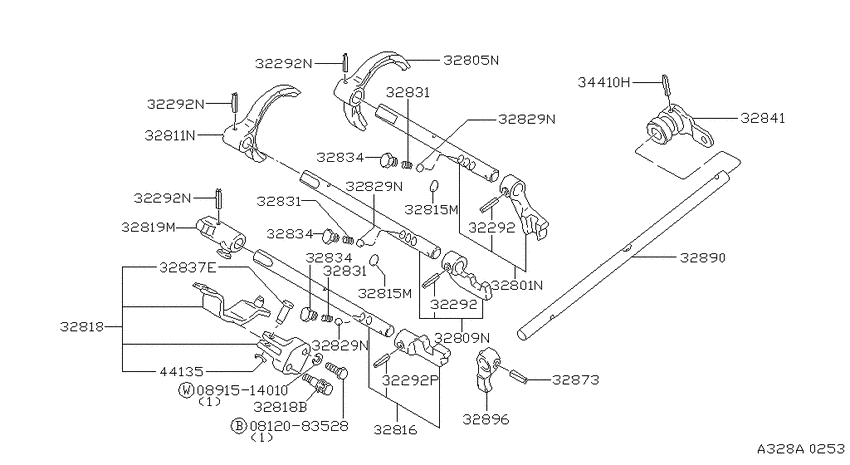

Transmission shift control (1978-08-01 ~ 1981-07-01; (A14S+A15S).MT.F4) Diagram Nissan 310/310GX
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Engine
- A14
- transmission
- MT
- body
- 4HB
- trim lvl
- GX
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812083528
|
0812083528
0812083528 Bolt-hexagon |
0812083528 |
US $2.45 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32292P
|
32292P
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
32292-M3000 |
— | ||
|
32801N
|
32801N
32800-M3000
Rod-Fork, 1St & 2Nd
1978-08-01 ~ 1981-07-01; MT.F4; , |
32800-M3000 |
— | ||
|
32805N
|
32805N
32805-M7001
Fork-Shift, 1St & 2Nd
1978-08-01 ~ 1981-07-01; MT.F4; , |
32805-M7001 |
— | ||
|
32805N
|
32805N
32805-M8001 Fork-Shift, 1St & 2Nd1981-08-01 ~ ; MT.F4 +MT.F5; , |
32805-M8001 |
US $42.62 |
||
|
32809N
|
32809N
32810-M3001
Rod-Fork, 3Rd & 4Th
1978-08-01 ~ 1981-07-01; MT.F4; , |
32810-M3001 |
— | ||
|
32811N
|
32811N
32811-M7001
Fork-Shift, 2Nd & 3Rd
1978-08-01 ~ 1981-07-01; MT.F4; , |
32811-M7001 |
— | ||
|
32811N
|
32811N
32811-M8001 Fork-Shift, 3Rd & 4Th1981-08-01 ~ ; MT.F4 +MT.F5; , |
32811-M8001 |
US $42.62 |
||
| replacement | |||||
|
32811N
|
32811N
3281144B00 Fork-Shift, 3Rd & 4Th1981-08-01 ~ ; MT.F4 +MT.F5; , |
3281144B00 |
US $42.62 |
||
|
32815M
|
32815M
32815-86400 Pin-Inter Lock1978-08-01 ~ 1981-07-01; MT.F4; , |
32815-86400 |
US $1.73 |
||
|
32815M
|
32815M
32815-86400 Pin-Inter Lock1978-08-01 ~ 1981-07-01; MT.F4; , |
32815-86400 |
US $1.73 |
||
|
32816
|
32816
32820-M3000
Rod-Fork, 1St
1978-08-01 ~ 1981-07-01; MT.F4; , |
32820-M3000 |
— | ||
|
32818
|
32818
32818-M3000
Lever Assy-Reverse Fork
1978-08-01 ~ 1981-07-01; MT.F4; , |
32818-M3000 |
— | ||
|
32818
|
32818
32815-M0201
Bolt
1978-08-01 ~ 1981-07-01; MT.F4; FIXING REVERSE BRACK ET |
32815-M0201 |
— | ||
|
32818B
|
32818B
32815-M0201
Bolt
1978-08-01 ~ 1981-07-01; MT.F4; FIXING REVERSE BRACK ET |
32815-M0201 |
— | ||
|
32819M
|
32819M
32822-M3000
Fork-Shift, Reverse
1978-08-01 ~ 1981-07-01; MT.F4; , |
32822-M3000 |
— | ||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F4; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F4; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F4; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F4; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F4; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F4; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32837E
|
32837E
04621-0818P
Pin-Clevis
1978-08-01 ~ 1981-07-01; MT.F4; , |
04621-0818P |
— | ||
|
32841
|
32841
34540-M7001
Lever Assy-Control
1978-08-01 ~ 1981-07-01; MT.F4; , |
34540-M7001 |
— | ||
|
32841
|
32841
34540-M7002
Lever Assy-Control
1980-08-01 ~ 1981-07-01; MT.F4; , |
34540-M7002 |
— | ||
|
32873
|
32873
32917M3000 Pin-Withdrawal Lever1981-08-01 ~ ; MT.F4 +MT.F5; , |
32917M3000 |
from US $1 |
||
|
32890
|
32890
32892-M3001
Rod-Striking
1979-08-01 ~ 1980-07-01; (FED.2HB+FED.4HB).MT.F4; , |
32892-M3001 |
— | ||
|
32890
|
32890
32892-M3060
Rod-Striking
1978-08-01 ~ 1979-07-01; MT.F4; , |
32892-M3060 |
— | ||
|
32890
|
32890
32892-M7000
Rod-Striking
1980-08-01 ~ 1981-07-01; (FED.2HB+FED.4HB).MT.F4; , |
32892-M7000 |
— | ||
|
32890
|
32890
32892-M8004
Rod-Striking
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32892-M8004 |
— | ||
|
32890
|
32890
32892-M8005 Rod-Striking1981-08-01 ~ ; MT.F4 +MT.F5; , |
32892-M8005 |
US $38.30 |
||
|
32896
|
32896
32897-M8000 Lever-Striking1981-08-01 ~ ; MT.F4 +MT.F5; , |
32897-M8000 |
US $44.50 |
||
|
32896
|
32896
32912-M3000
Lever-Striking
1978-08-01 ~ 1981-07-01; MT.F4; , |
32912-M3000 |
— | ||
|
34410H
|
34410H
01532-00012 PIN-COTTER1978-08-01 ~ 1981-07-01; (A14S+A15S).MT.F4; , |
01532-00012 |
US $2.45 |
||
|
34410H
|
34410H
32917-M3010 Pin-Snap1978-08-01 ~ 1981-07-01; MT.F4; , |
32917-M3010 |
US $2.45 |
||
|
44135
|
44135
00751-0500P
Ring-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
00751-0500P |
— | ||
|
44135
|
44135
00754-0500P
Ring-Retaining
1978-08-01 ~ 1981-07-01; MT.F4; , |
00754-0500P |
— | ||
|
44135
|
44135
00922-50510 RING-RETAINING1978-08-01 ~ 1981-07-01; MT.F4; , |
00922-50510 |
US $2.21 |
||
