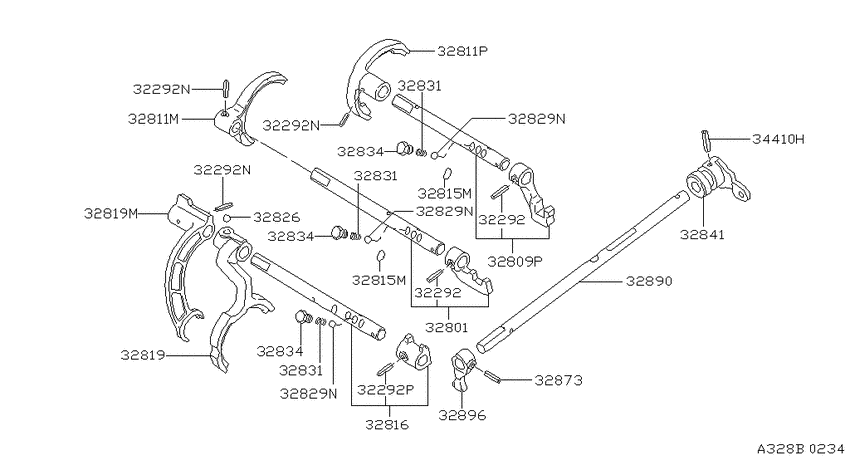

Transmission shift control (1978-08-01 ~ 1981-07-01; (A14S+A15S).MT.F5) Diagram Nissan 310/310GX
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Engine
- A15
- transmission
- MT
- body
- C
- trim lvl
- GX
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292
|
32292
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292N
|
32292N
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32292P
|
32292P
32292-M3000
Pin-Retaining
1978-08-01 ~ 1981-07-01; MT.F5; , |
32292-M3000 |
— | ||
|
32801
|
32801
32810-M8500
Rod-Fork
1978-08-01 ~ 1981-07-01; MT.F5; , |
32810-M8500 |
— | ||
|
32801
|
32801
32801-M8802 Shaft-Fork1981-08-01 ~ ; MT.F5; , |
32801-M8802 |
US $19.44 |
||
|
32809P
|
32809P
32800-M8500
Rod-Fork, 4Th & 5Th
1978-08-01 ~ 1981-07-01; MT.F5; , |
32800-M8500 |
— | ||
|
32811M
|
32811M
32811-M7001
Fork-Shift, 2Nd & 3Rd
1978-08-01 ~ 1981-07-01; MT.F5; , |
32811-M7001 |
— | ||
|
32811P
|
32811P
32811-M5100
Fork-Shift, 4Th & 5Th
1978-08-01 ~ 1981-07-01; MT.F5; , |
32811-M5100 |
— | ||
|
32815M
|
32815M
32815-86400 Pin-Inter Lock1978-08-01 ~ 1981-07-01; MT.F5; , |
32815-86400 |
US $1.73 |
||
|
32815M
|
32815M
32815-86400 Pin-Inter Lock1978-08-01 ~ 1981-07-01; MT.F5; , |
32815-86400 |
US $1.73 |
||
|
32816
|
32816
32820-M8500
Rod-Fork, 1St
1978-08-01 ~ 1981-07-01; MT.F5; , |
32820-M8500 |
— | ||
|
32816
|
32816
32820-M8501
Rod-Fork, 1St
1978-08-01 ~ 1981-07-01; MT.F5; , |
32820-M8501 |
— | ||
|
32819
|
32819
32821-M5101
Fork-Shift, 1St
1978-08-01 ~ 1981-07-01; MT.F5; , |
32821-M5101 |
— | ||
|
32819
|
32819
32822-M5101
Fork-Shift, Reverse
1978-08-01 ~ 1981-07-01; MT.F5; , |
32822-M5101 |
— | ||
|
32819
|
32819
32819-M8801 Fork-Shift, 5Th1981-08-01 ~ ; MT.F5; , |
32819-M8801 |
US $42.62 |
||
| replacement | |||||
|
32819
|
32819
32819-44B00 Fork-Shift, 5Th1981-08-01 ~ ; MT.F5; , |
32819-44B00 |
from US $42.62 |
||
|
32819M
|
32819M
32822-M5101
Fork-Shift, Reverse
1978-08-01 ~ 1981-07-01; MT.F5; , |
32822-M5101 |
— | ||
|
32826
|
32826
32829-M5100 Ball-Check1978-08-01 ~ 1981-07-01; MT.F5; , |
32829-M5100 |
US $0.59 |
||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32829N
|
32829N
32829-26760 Ball-Check1981-08-01 ~ ; MT.F4 +MT.F5; , |
32829-26760 |
from US $0.74 |
||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F5; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F5; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32831
|
32831
32831-M3002
Spring-Check Ball
1978-08-01 ~ 1981-07-01; MT.F5; , |
32831-M3002 |
— | ||
|
32831
|
32831
32831-M8003
Spring-Check Ball
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32831-M8003 |
— | ||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F5; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F5; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32834
|
32834
32828-M0100 Plug-Check Ball1978-08-01 ~ 1981-07-01; MT.F5; , |
32828-M0100 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball1981-08-01 ~ ; MT.F4 +MT.F5; , |
32834-M8001 |
US $5.18 |
||
|
32841
|
32841
34540-M7001
Lever Assy-Control
1978-08-01 ~ 1981-07-01; MT.F5; , |
34540-M7001 |
— | ||
|
32841
|
32841
34540-M7002
Lever Assy-Control
1980-08-01 ~ 1981-07-01; MT.F5; , |
34540-M7002 |
— | ||
|
32873
|
32873
32917M3000 Pin-Withdrawal Lever1981-08-01 ~ ; MT.F4 +MT.F5; , |
32917M3000 |
from US $1 |
||
|
32890
|
32890
32892-M8004
Rod-Striking
1981-08-01 ~ ; MT.F4 +MT.F5; , |
32892-M8004 |
— | ||
|
32890
|
32890
32892-M8005 Rod-Striking1981-08-01 ~ ; MT.F4 +MT.F5; , |
32892-M8005 |
US $38.30 |
||
|
32890
|
32890
32892-M8502
Rod-Striking
1979-08-01 ~ 1981-07-01; CAL.C.MT.F5; , |
32892-M8502 |
— | ||
|
32890
|
32890
32892-M8503
Rod-Striking
1978-08-01 ~ 1979-07-01; MT.F5; , |
32892-M8503 |
— | ||
|
32896
|
32896
32897-M8000 Lever-Striking1981-08-01 ~ ; MT.F4 +MT.F5; , |
32897-M8000 |
US $44.50 |
||
|
32896
|
32896
32912-M8501
Lever-Striking
1978-08-01 ~ 1981-07-01; MT.F5; , |
32912-M8501 |
— | ||
|
34410H
|
34410H
01532-00012 PIN-COTTER1978-08-01 ~ 1981-07-01; (A14S+A15S).MT.F5; , |
01532-00012 |
US $2.45 |
||
|
34410H
|
34410H
32917-M3010 Pin-Snap1978-08-01 ~ 1981-07-01; MT.F5; , |
32917-M3010 |
US $2.45 |
||
