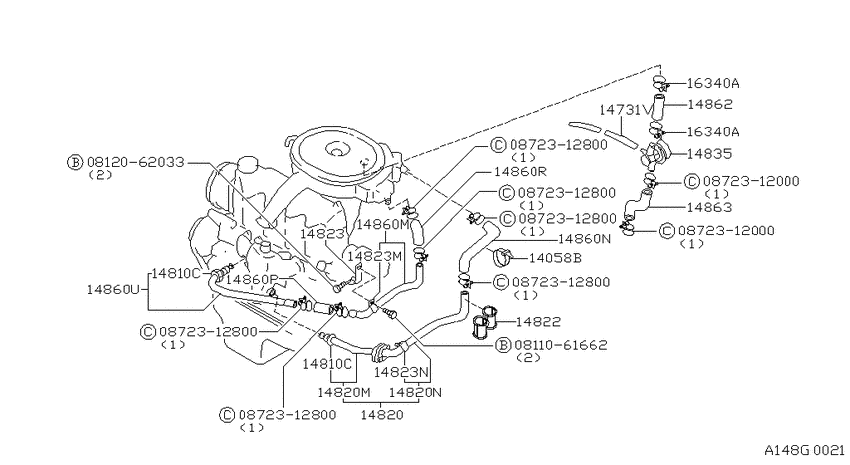

Secondary air system (1978-08-01 ~ ; E15S) Diagram Nissan 310/310GX
- Year
- 1981 - 2011
- Sales region
- U.S.A.
- Engine
- E15
- transmission
- MT
- body
- 2HB
- trim lvl
- GX
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061662
|
0811061662
08110-61662
Bolt-hexagon
|
08110-61662 |
— | ||
|
0812062033
|
0812062033
08120-62033
Bolt-hexagon
|
08120-62033 |
— | ||
|
0872312000
|
0872312000
08723-12000
CLAMP
|
08723-12000 |
— | ||
| replacement | |||||
|
0872312000
|
0872312000
0155500841 CLIP |
0155500841 |
from US $1.37 |
||
|
0872312000
|
0872312000
08723-12000
CLAMP
|
08723-12000 |
— | ||
| replacement | |||||
|
0872312000
|
0872312000
0155500841 CLIP |
0155500841 |
from US $1.37 |
||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
0872312800
|
0872312800
08723-12800
CLAMP-HOSE
|
08723-12800 |
— | ||
|
14058B
|
14058B
01552-00411
CLAMP-HOSE
1981-08-01 ~ ; E15S; , |
01552-00411 |
— | ||
| replacement | |||||
|
14058B
|
14058B
2421610Y80 Clamp1981-08-01 ~ ; E15S; , |
2421610Y80 |
from US $4.42 |
||
|
14731V
|
14731V
02141-317G0
Hose-Vacuum Control, A
1981-08-01 ~ ; E15S; , |
02141-317G0 |
— | ||
|
14810C
|
14810C
14818-01M00
Nut
1981-08-01 ~ ; E15S; , |
14818-01M00 |
— | ||
|
14810C
|
14810C
14818-01M00
Nut
1981-08-01 ~ ; E15S; , |
14818-01M00 |
— | ||
|
14820
|
14820
14821-23M05
Pipe Assy-Air Gallery
1981-08-01 ~ ; E15S; , |
14821-23M05 |
— | ||
|
14820
|
14820
14823-23M05
Pair-Pipe
1981-08-01 ~ ; E15S; , |
14823-23M05 |
— | ||
|
14820
|
14820
14823-23M06
Pair-Pipe
1981-08-01 ~ ; E15S; , |
14823-23M06 |
— | ||
|
14820M
|
14820M
14823-23M05
Pair-Pipe
1981-08-01 ~ ; E15S; , |
14823-23M05 |
— | ||
|
14820N
|
14820N
14823-23M06
Pair-Pipe
1981-08-01 ~ ; E15S; , |
14823-23M06 |
— | ||
|
14822
|
14822
14824-23M01
Support-Air Gallery
1981-10-01 ~ ; E15S; , |
14824-23M01 |
— | ||
|
14822
|
14822
14824-M6610
Support-Air Gallery
1981-08-01 ~ 1981-09-01; E15S; , |
14824-M6610 |
— | ||
|
14823
|
14823
14824-23M00
Pair-Pipe Bracket
1981-08-01 ~ ; E15S; FIX OUTLET |
14824-23M00 |
— | ||
|
14823
|
14823
14824-G2800
Pair-Pipe Bracket
1981-08-01 ~ ; E15S; , |
14824-G2800 |
— | ||
|
14823
|
14823
14824-G2800
Pair-Pipe Bracket
1981-08-01 ~ ; E15S; , |
14824-G2800 |
— | ||
|
14823M
|
14823M
14824-G2800
Pair-Pipe Bracket
1981-08-01 ~ ; E15S; , |
14824-G2800 |
— | ||
|
14823N
|
14823N
14824-G2800
Pair-Pipe Bracket
1981-08-01 ~ ; E15S; , |
14824-G2800 |
— | ||
|
14835
|
14835
14835-23M00
Valve Assy-Ab
1981-08-01 ~ ; E15S; , |
14835-23M00 |
— | ||
| replacement | |||||
|
14835
|
14835
14835-23M01 Valve Assy-Ab1981-08-01 ~ ; E15S; , |
14835-23M01 |
US $132.80 |
||
|
14860M
|
14860M
14821-23M01
Pair Pipe
1981-08-01 ~ 1981-09-01; E15S; , |
14821-23M01 |
— | ||
|
14860M
|
14860M
14821-23M04
Pair Pipe
1981-10-01 ~ ; E15S; , |
14821-23M04 |
— | ||
|
14860N
|
14860N
14861-23M01
Hose-Air
1981-08-01 ~ 1981-09-01; E15S; , |
14861-23M01 |
— | ||
|
14860N
|
14860N
14861-23M04
Hose-Air
1981-10-01 ~ ; E15S; , |
14861-23M04 |
— | ||
|
14860P
|
14860P
14861-23M02
Hose-Air
1981-08-01 ~ ; E15S; , |
14861-23M02 |
— | ||
|
14860R
|
14860R
14861-23M00
Hose-Air
1981-08-01 ~ 1981-09-01; E15S; , |
14861-23M00 |
— | ||
|
14860R
|
14860R
14861-23M03
Hose-Air
1981-10-01 ~ ; E15S; , |
14861-23M03 |
— | ||
|
14860U
|
14860U
14823-23M00
Pair-Pipe
1981-08-01 ~ ; E15S; , |
14823-23M00 |
— | ||
|
14862
|
14862
14862-23M01
Hose-Air Cleaner To Ab Valve
1981-08-01 ~ ; E15S; , |
14862-23M01 |
— | ||
|
14863
|
14863
14863-23M01
Hose-Ab Valve To Inlet Connector
1981-08-01 ~ ; E15S; , |
14863-23M01 |
— | ||
|
14863
|
14863
22328-H8500
Clamp-Hose
1981-08-01 ~ ; E15S; , |
22328-H8500 |
— | ||
|
16340A
|
16340A
16439-23M00 Clamp-Hose1981-08-01 ~ ; E15S; , |
16439-23M00 |
US $3.60 |
||
|
16340A
|
16340A
16439-23M00 Clamp-Hose1981-08-01 ~ ; E15S; , |
16439-23M00 |
US $3.60 |
||
