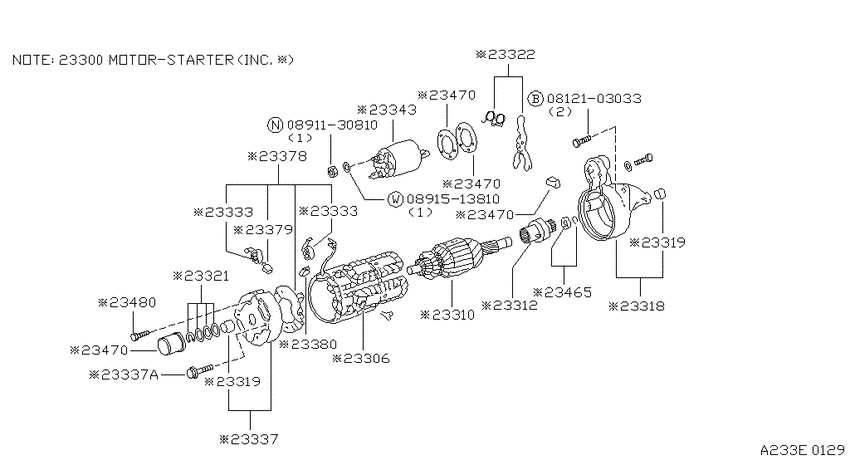

Starter motor (1981-08-01 ~ ; S114-316; *E15S.MT) Diagram Nissan 310/310GX
- Year
- 1981 - 2011
- Sales region
- U.S.A.
- Engine
- E15
- transmission
- MT
- body
- 2HB
- trim lvl
- GX
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103033
|
0812103033
08121-03033
Bolt-hexagon
|
08121-03033 |
— | ||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-M8000 Motor Assy-Starter1981-08-01 ~ ; E15S.MT; S114-315 |
23300-M8000 |
US $758.98 |
||
| replacement | |||||
|
23300
|
23300
23300-M8202 Motor Assy-Starter1981-08-01 ~ ; E15S.MT; S114-315 |
23300-M8202 |
US $836.86 |
||
|
23300
|
23300
23300-M8200 Motor Assy-Starter1981-08-01 ~ ; *E15S.MT; S114-316 |
23300-M8200 |
US $758.98 |
||
| replacement | |||||
|
23300
|
23300
23300-M8202 Motor Assy-Starter1981-08-01 ~ ; *E15S.MT; S114-316 |
23300-M8202 |
US $836.86 |
||
|
23306
|
23306
23306-M8000 Coil Assy-Field1981-08-01 ~ ; E15S.MT; , |
23306-M8000 |
US $126.14 |
||
|
23306
|
23306
23306-M8200 Coil Assy-Field1981-08-01 ~ ; *E15S.MT; , |
23306-M8200 |
US $141.70 |
||
|
23310
|
23310
23310-M8000 Armature Assy1981-08-01 ~ ; E15S.MT; , |
23310-M8000 |
US $331.34 |
||
|
23310
|
23310
23310-M8200 Armature Assy1981-08-01 ~ ; *E15S.MT; , |
23310-M8200 |
US $356.83 |
||
|
23312
|
23312
23312-M8000 Pinion Assy1981-08-01 ~ ; E15S.MT; , |
23312-M8000 |
US $332.76 |
||
| replacement | |||||
|
23312
|
23312
23312-73C00 Pinion Assy1981-08-01 ~ ; E15S.MT; , |
23312-73C00 |
US $359.66 |
||
|
23318
|
23318
23318-M8000 Case Assy-Gear1981-08-01 ~ ; E15S.MT; , |
23318-M8000 |
US $71.28 |
||
|
23318
|
23318
23318-M8200 Case Assy-Gear1981-08-01 ~ ; *E15S.MT; , |
23318-M8200 |
US $93.31 |
||
|
23319
|
23319
23332-N3300
Metal-Gear Case
1981-08-01 ~ ; E15S.MT; , |
23332-N3300 |
— | ||
|
23319
|
23319
23338N3300 Metal-Rear Cover1981-08-01 ~ ; E15S.MT; , |
23338N3300 |
US $5.18 |
||
|
23319
|
23319
23332-N3300
Metal-Gear Case
1981-08-01 ~ ; E15S.MT; , |
23332-N3300 |
— | ||
|
23319
|
23319
23338N3300 Metal-Rear Cover1981-08-01 ~ ; E15S.MT; , |
23338N3300 |
US $5.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust1981-08-01 ~ ; E15S.MT; , |
23321-N3300 |
US $4.18 |
||
|
23322
|
23322
23322-M8000 Lever Set-Shift1981-08-01 ~ ; E15S.MT; , |
23322-M8000 |
US $13.25 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift1981-08-01 ~ ; *E15S.MT; , |
23322-M8100 |
US $12.67 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1981-08-01 ~ ; E15S.MT; , |
23333-M8000 |
US $6.48 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1981-08-01 ~ ; E15S.MT; , |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-H5000 Cover Assy-Rear1981-08-01 ~ ; E15S.MT; , |
23337-H5000 |
US $23.62 |
||
|
23337
|
23337
23337-U0100 Cover Assy-Rear1981-08-01 ~ ; *E15S.MT; , |
23337-U0100 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through1981-08-01 ~ ; E15S.MT; , |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through1981-08-01 ~ ; E15S.MT; , |
23340-M4900 |
US $4.18 |
||
|
23343
|
23343
23343-M8000 Switch Assy-Magnetic1981-08-01 ~ ; E15S.MT; , |
23343-M8000 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
B3343-M8001
Switch assy-magnetic
1981-08-01 ~ ; E15S.MT; , |
B3343-M8001 |
— | ||
|
23378
|
23378
23378-M8000 Holder Assy-Brush1981-08-01 ~ ; E15S.MT; , |
23378-M8000 |
US $16.13 |
||
|
23378
|
23378
23378-M8100 Holder Assy-Brush1981-08-01 ~ ; *E15S.MT; , |
23378-M8100 |
US $17.57 |
||
|
23379
|
23379
23379-M0100
Brush-Minus
1981-08-01 ~ ; E15S.MT; - |
23379-M0100 |
— | ||
|
23379
|
23379
23379-M0101 Brush-Minus1981-08-01 ~ ; E15S.MT; - |
23379-M0101 |
US $5.62 |
||
|
23380
|
23380
23380-M0100 Brush-Plus1981-08-01 ~ ; E15S.MT; + |
23380-M0100 |
US $5.62 |
||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion1981-08-01 ~ ; E15S.MT; , |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1981-08-01 ~ ; E15S.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1981-08-01 ~ ; E15S.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1981-08-01 ~ ; E15S.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1981-08-01 ~ ; E15S.MT; , |
23470-M8000 |
US $12.53 |
||
|
23480
|
23480
23480-M0100 Screw Set1981-08-01 ~ ; E15S.MT; , |
23480-M0100 |
US $4.18 |
||
