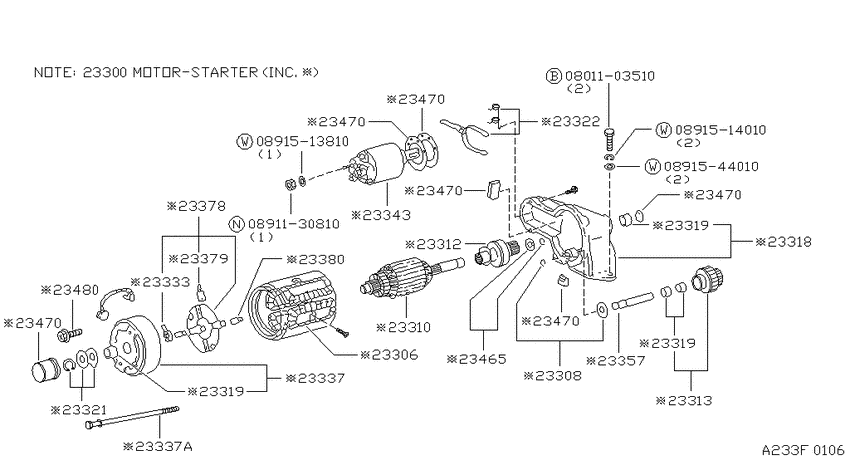

Starter motor (1981-08-01 ~ ; E15S.AT) Diagram Nissan 310/310GX
- Year
- 1981 - 2011
- Sales region
- U.S.A.
- Engine
- E15
- transmission
- AT
- body
- 2HB
- trim lvl
- GX
- emission
- CAL
- gears/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0801103510
|
0801103510
08011-03510
Bolt-hexagon
|
08011-03510 |
— | ||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891544010
|
0891544010
08915-44010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44010 |
— | ||
|
23300
|
23300
23300-M8100 Motor Assy-Starter1981-11-01 ~ ; E15S.AT; S114-317 |
23300-M8100 |
US $547.99 |
||
|
23300
|
23300
23300-M8300 Motor Assy-Starter1981-08-01 ~ ; *E15S.AT; S114-318 |
23300-M8300 |
US $547.99 |
||
| replacement | |||||
|
23300
|
23300
23300-M8301 Motor Assy-Starter1981-08-01 ~ ; *E15S.AT; S114-318 |
23300-M8301 |
US $691.01 |
||
|
23306
|
23306
23306-M8100
Coil Assy-Field
1981-11-01 ~ ; E15S.AT; , |
23306-M8100 |
— | ||
|
23306
|
23306
23306-M8300 Coil Assy-Field1981-08-01 ~ ; *E15S.AT; , |
23306-M8300 |
US $152.64 |
||
| replacement | |||||
|
23306
|
23306
23306-M8301 Coil Assy-Field1981-08-01 ~ ; *E15S.AT; , |
23306-M8301 |
US $178.56 |
||
|
23308
|
23308
23325-M8100 Ring Set1981-08-01 ~ ; E15S.AT; , |
23325-M8100 |
US $3.02 |
||
|
23310
|
23310
23310-M8100 Armature Assy1981-11-01 ~ ; E15S.AT; , |
23310-M8100 |
US $297.36 |
||
|
23310
|
23310
23310-M8300
Armature Assy
1981-08-01 ~ ; *E15S.AT; , |
23310-M8300 |
— | ||
|
23312
|
23312
23312-M8100 Pinion Assy1981-08-01 ~ ; E15S.AT; , |
23312-M8100 |
US $127.58 |
||
|
23313
|
23313
23371-M8100 Gear1981-08-01 ~ ; E15S.AT; , |
23371-M8100 |
US $79.34 |
||
|
23318
|
23318
23318-M8100 Case Assy-Gear1981-08-01 ~ ; E15S.AT; , |
23318-M8100 |
US $128.02 |
||
|
23319
|
23319
23332-N3300
Metal-Gear Case
1981-08-01 ~ ; E15S.AT; , |
23332-N3300 |
— | ||
|
23319
|
23319
23338N3300 Metal-Rear Cover1981-08-01 ~ ; E15S.AT; , |
23338N3300 |
US $5.18 |
||
|
23319
|
23319
23332-N3300
Metal-Gear Case
1981-08-01 ~ ; E15S.AT; , |
23332-N3300 |
— | ||
|
23319
|
23319
23338N3300 Metal-Rear Cover1981-08-01 ~ ; E15S.AT; , |
23338N3300 |
US $5.18 |
||
|
23319
|
23319
23332-N3300
Metal-Gear Case
1981-08-01 ~ ; E15S.AT; , |
23332-N3300 |
— | ||
|
23319
|
23319
23338N3300 Metal-Rear Cover1981-08-01 ~ ; E15S.AT; , |
23338N3300 |
US $5.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust1981-08-01 ~ ; E15S.AT; , |
23321-N3300 |
US $4.18 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift1981-08-01 ~ ; E15S.AT; , |
23322-M8100 |
US $12.67 |
||
|
23333
|
23333
23333-21001 Spring-Brush1981-08-01 ~ ; *E15S.AT; , |
23333-21001 |
US $2.45 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1981-11-01 ~ ; E15S.AT; , |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-U0100 Cover Assy-Rear1981-08-01 ~ ; E15S.AT; , |
23337-U0100 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through1981-11-01 ~ ; E15S.AT; , |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340U0100 Bolt-Through1981-08-01 ~ ; *E15S.AT; , |
23340U0100 |
US $2.45 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through1981-11-01 ~ ; E15S.AT; , |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340U0100 Bolt-Through1981-08-01 ~ ; *E15S.AT; , |
23340U0100 |
US $2.45 |
||
|
23343
|
23343
23343-M8000 Switch Assy-Magnetic1981-08-01 ~ ; E15S.AT; , |
23343-M8000 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
B3343-M8001
Switch assy-magnetic
1981-08-01 ~ ; E15S.AT; , |
B3343-M8001 |
— | ||
|
23357
|
23357
23307-M8100 Shaft-Pinion1981-08-01 ~ ; E15S.AT; , |
23307-M8100 |
US $26.35 |
||
|
23378
|
23378
23378-M8100 Holder Assy-Brush1981-11-01 ~ ; E15S.AT; , |
23378-M8100 |
US $17.57 |
||
|
23378
|
23378
23378-M8300 Holder Assy-Brush1981-08-01 ~ ; *E15S.AT; , |
23378-M8300 |
US $31.25 |
||
|
23379
|
23379
23379-M0100
Brush-Minus
1981-11-01 ~ ; E15S.AT; - |
23379-M0100 |
— | ||
|
23379
|
23379
23379-M0101 Brush-Minus1981-11-01 ~ ; E15S.AT; - |
23379-M0101 |
US $5.62 |
||
|
23379
|
23379
23380-19900 Brush-Minus1981-08-01 ~ ; *E15S.AT; - |
23380-19900 |
US $10.51 |
||
|
23380
|
23380
23380-61000 Brush-Plus1981-08-01 ~ ; *E15S.AT; + |
23380-61000 |
US $9.79 |
||
|
23380
|
23380
23380-M0100 Brush-Plus1981-11-01 ~ ; E15S.AT; + |
23380-M0100 |
US $5.62 |
||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion1981-08-01 ~ ; E15S.AT; , |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23470
|
23470
23470-M8100 Cover Set-Dust1981-08-01 ~ ; E15S.AT; , |
23470-M8100 |
US $16.42 |
||
|
23480
|
23480
23480-M0100 Screw Set1981-08-01 ~ ; E15S.AT; , |
23480-M0100 |
US $4.18 |
||
