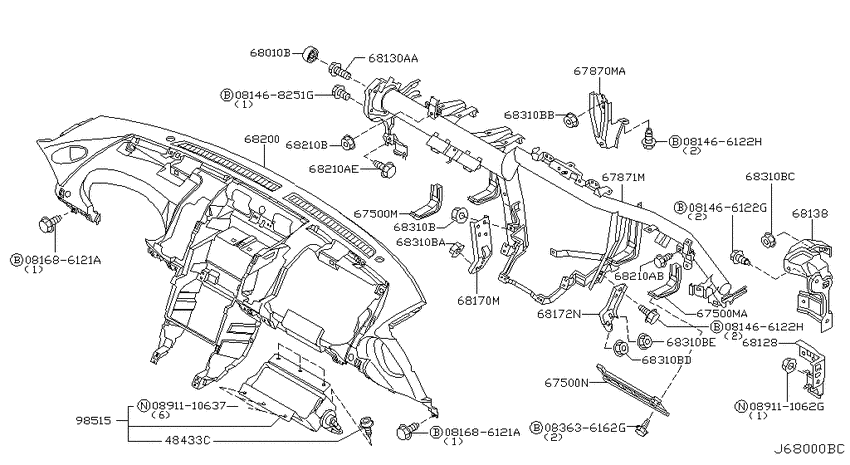

Instrument panel, pad & cluster lid (2002-06-01 ~ 2005-08-01; INST FITTING; C +CV) Diagram Nissan 350Z
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- MT
- grade
- BASE
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466122H
|
081466122H
081466122H
Bolt-hexagon
|
081466122H |
— | ||
|
081466122H
|
081466122H
081466122H
Bolt-hexagon
|
081466122H |
— | ||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
48433C
|
48433C
0114100411 BOLT2004-07-01 ~ 2005-08-01; C +CV; , |
0114100411 |
from US $1.39 |
||
|
67500M
|
67500M
67848-CD000
Protector assy-knee
2002-06-01 ~ 2005-08-01; C +CV; , |
67848-CD000 |
— | ||
|
67500M
|
67500M
67848-CF40A
Protector assy-knee
2005-08-01 ~ 2006-11-01; *C +*CV; , |
67848-CF40A |
— | ||
|
67500M
|
67500M
67849-CD000
Protector assy-knee
2002-06-01 ~ 2005-08-01; C +CV; , |
67849-CD000 |
— | ||
|
67500MA
|
67500MA
67849-CD000
Protector assy-knee
2002-06-01 ~ 2005-08-01; C +CV; , |
67849-CD000 |
— | ||
|
67500N
|
67500N
67500-CD000
Protector assy-knee,rh upper
2002-06-01 ~ 2005-08-01; C +CV; , |
67500-CD000 |
— | ||
|
67500N
|
67500N
67500-CF40A
Protector assy-knee,rh upper
2006-02-01 ~ 2006-11-01; *C +*CV; , |
67500-CF40A |
— | ||
|
67870MA
|
67870MA
67881CD000 ﾒﾝﾊﾞ- ｱﾂｼ-2002-06-01 ~ 2005-08-01; C +CV; , |
67881CD000 |
US $18.86 |
||
|
67871M
|
67871M
67871-CD020
Mbr sub assy-strg
2003-05-01 ~ 2005-08-01; CV; , |
67871-CD020 |
— | ||
|
67871M
|
67871M
67871-CF42A
Mbr sub assy-strg
2005-08-01 ~ 2006-11-01; *CV; , |
67871-CF42A |
— | ||
|
68010B
|
68010B
69143-AL500 Nut-Cap2002-06-01 ~ 2005-08-01; C +CV; , |
69143-AL500 |
US $1.73 |
||
|
68128
|
68128
68128-CD020
Bracket-instrument side,rh
2003-05-01 ~ 2005-08-01; CV; , |
68128-CD020 |
— | ||
|
68130AA
|
68130AA
01121-07291 BOLT2002-06-01 ~ 2005-08-01; C +CV; , |
01121-07291 |
US $2.45 |
||
|
68138
|
68138
68138-CD000
Bracket-instrument member,rh
2002-06-01 ~ 2005-08-01; C +CV; , |
68138-CD000 |
— | ||
|
68170M
|
68170M
68170-AM600
Stay Assy-Instrument, Driver Front
2002-06-01 ~ 2005-08-01; C +CV; , |
68170-AM600 |
— | ||
|
68172N
|
68172N
68172-AM600
Stay Assy-Instrument Assist Front
2002-06-01 ~ 2005-07-01; C +CV; , |
68172-AM600 |
— | ||
|
68172N
|
68172N
68172-CF40A
Stay assy-instrument,assist
2005-07-01 ~ 2005-08-01; C +CV; , |
68172-CF40A |
— | ||
|
68200
|
68200
68200-CD000
Panel & pad assy-instrument
2002-06-01 ~ 2005-08-01; C +CV; , |
68200-CD000 |
— | ||
| replacement | |||||
|
68200
|
68200
68200-CD00A Panel & pad assy-instrument2002-06-01 ~ 2005-08-01; C +CV; , |
68200-CD00A |
US $1,165.19 |
||
|
68200
|
68200
68200-CD001
Panel & pad assy-instrument
2002-06-01 ~ 2005-08-01; C +CV; , |
68200-CD001 |
— | ||
| replacement | |||||
|
68200
|
68200
68200-CD00B
Panel & pad assy-instrument
2002-06-01 ~ 2005-08-01; C +CV; , |
68200-CD00B |
— | ||
|
68210AB
|
68210AB
01125-03421 BOLT2003-05-01 ~ 2003-07-01; CV; , |
01125-03421 |
US $1.93 |
||
|
68210AE
|
68210AE
01125-00931 SCREW2002-06-01 ~ 2004-07-01; C +CV; , |
01125-00931 |
US $2.45 |
||
|
68210AE
|
68210AE
01125-03571 ﾎﾞﾙﾄ2004-07-01 ~ 2005-08-01; CV; , |
01125-03571 |
US $2.45 |
||
|
68210B
|
68210B
0122500701 NUT2003-05-01 ~ 2003-07-01; CV; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT2002-06-01 ~ 2004-07-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500701 NUT2004-07-01 ~ 2005-08-01; CV; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500701 |
from US $0.81 |
||
|
68310BA
|
68310BA
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310BB
|
68310BB
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310BC
|
68310BC
0122500371 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310BD
|
68310BD
0122500371 NUT2002-06-01 ~ 2004-07-01; C +CV; , |
0122500371 |
US $1.73 |
||
|
68310BD
|
68310BD
0122500701 NUT2004-07-01 ~ 2005-08-01; CV; , |
0122500701 |
from US $0.81 |
||
|
68310BE
|
68310BE
0122500701 NUT2002-06-01 ~ 2005-08-01; C +CV; , |
0122500701 |
from US $0.81 |
||
|
98515
|
98515
K851E-CD000
Module assy-air bag,assist
2002-06-01 ~ 2005-08-01; C +CV; , |
K851E-CD000 |
— | ||
| replacement | |||||
|
98515
|
98515
Y851E-CD000
Module assy-air bag,assist
2002-06-01 ~ 2005-08-01; C +CV; , |
Y851E-CD000 |
— | ||
|
98515
|
98515
K851E-CF40A
Module assy-air bag,assist
2005-08-01 ~ 2006-11-01; C +CV; , |
K851E-CF40A |
— | ||
| replacement | |||||
|
98515
|
98515
Y851E-CF40A
Module assy-air bag,assist
2005-08-01 ~ 2006-11-01; C +CV; , |
Y851E-CF40A |
— | ||
|
98515
|
98515
K851E-CF60A
Module assy-air bag,assist
2006-02-01 ~ 2006-11-01; *C +*CV; , |
K851E-CF60A |
— | ||
| replacement | |||||
|
98515
|
98515
Y851E-CF60A
Module assy-air bag,assist
2006-02-01 ~ 2006-11-01; *C +*CV; , |
Y851E-CF60A |
— | ||
