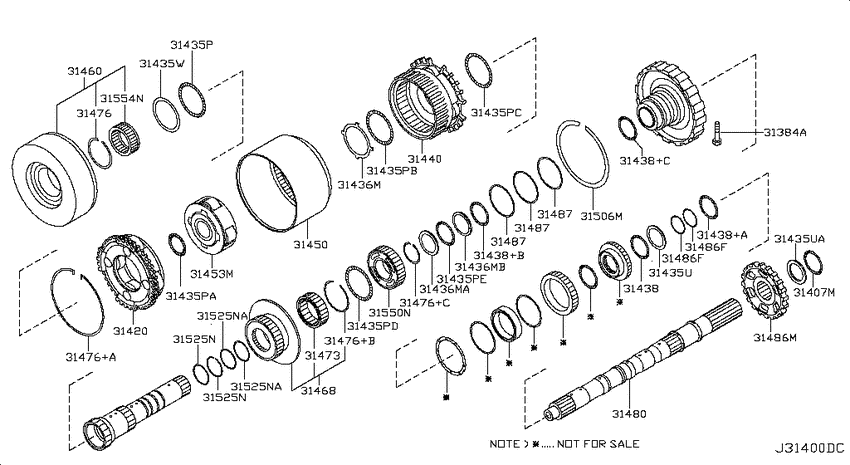

Governor,power train & planetary gear (2005-08-01 ~ 2006-11-01; AT) Diagram Nissan 350Z
- Year
- 2005 - 2006
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- AT
- grade
- GT
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31384A
|
31384A
31377-90X00 Bolt-Drum Support2005-08-01 ~ 2006-11-01; AT; , |
31377-90X00 |
US $0.86 |
||
|
31407M
|
31407M
31407-90X01 Bearing-Needle, Thrust2005-08-01 ~ 2006-05-01; AT; , |
31407-90X01 |
US $13.82 |
||
|
31407M
|
31407M
31407-90X0C Bearing-Needle, Thrust2006-05-01 ~ 2006-11-01; AT; , |
31407-90X0C |
US $13.82 |
||
|
31420
|
31420
31420-90X03 Carrier Assy-Front Planet2005-08-01 ~ 2006-11-01; AT; , |
31420-90X03 |
US $308.69 |
||
|
31435P
|
31435P
31407-90X04 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X04 |
US $13.82 |
||
|
31435P
|
31435P
31407-95X03 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-95X03 |
US $13.82 |
||
|
31435P
|
31435P
31407-95X01 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-95X01 |
US $13.82 |
||
|
31435P
|
31435P
31407-90X08 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X08 |
US $13.82 |
||
|
31435P
|
31435P
31407-90X09 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X09 |
US $13.82 |
||
|
31435P
|
31435P
31407-90X10 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X10 |
US $13.82 |
||
|
31435PA
|
31435PA
31407-95X03 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-95X03 |
US $13.82 |
||
|
31435PB
|
31435PB
31407-95X01 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-95X01 |
US $13.82 |
||
|
31435PC
|
31435PC
31407-90X08 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X08 |
US $13.82 |
||
|
31435PD
|
31435PD
31407-90X09 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X09 |
US $13.82 |
||
|
31435PE
|
31435PE
31407-90X10 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X10 |
US $13.82 |
||
|
31435U
|
31435U
31435-90X01 Race-Needle Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X01 |
US $6.91 |
||
|
31435U
|
31435U
31435-90X10 Race-Needle Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X10 |
US $6.91 |
||
|
31435UA
|
31435UA
31435-90X10 Race-Needle Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X10 |
US $6.91 |
||
|
31435W
|
31435W
31435-90X02 Race-Bearing2005-08-01 ~ 2006-11-01; AT; SELECT T=1.2 |
31435-90X02 |
US $6.91 |
||
|
31435W
|
31435W
31435-90X03 Race-Bearing2005-08-01 ~ 2006-11-01; AT; SELECT T=1.4 |
31435-90X03 |
US $6.91 |
||
|
31435W
|
31435W
31435-90X04 Race-Bearing2005-08-01 ~ 2006-11-01; AT; SELECT T=1.6 |
31435-90X04 |
US $6.91 |
||
|
31435W
|
31435W
31435-90X05 Race-Bearing2005-08-01 ~ 2006-11-01; AT; SELECT T=1.8 |
31435-90X05 |
US $6.91 |
||
|
31435W
|
31435W
31435-90X06 Race-Bearing2005-08-01 ~ 2006-11-01; AT; SELECT T=2.0 |
31435-90X06 |
US $6.91 |
||
|
31436M
|
31436M
31435-90X07 Race-Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X07 |
US $6.19 |
||
|
31436M
|
31436M
31435-90X08 Race-Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X08 |
US $6.19 |
||
|
31436M
|
31436M
31435-90X09 Race-Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X09 |
US $6.19 |
||
|
31436MA
|
31436MA
31435-90X08 Race-Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X08 |
US $6.19 |
||
|
31436MB
|
31436MB
31435-90X09 Race-Bearing2005-08-01 ~ 2006-11-01; AT; , |
31435-90X09 |
US $6.19 |
||
|
31438
|
31438
31407-90X01 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X01 |
US $13.82 |
||
|
31438
|
31438
31407-90X0A Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X0A |
US $16.70 |
||
|
31438
|
31438
31407-90X03 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X03 |
US $16.70 |
||
|
31438
|
31438
31407-90X13 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X13 |
US $16.70 |
||
|
31438+A
|
31438+A
31407-90X0A Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X0A |
US $16.70 |
||
|
31438+B
|
31438+B
31407-90X03 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X03 |
US $16.70 |
||
|
31438+C
|
31438+C
31407-90X13 Bearing-Needle, Thrust2005-08-01 ~ 2006-11-01; AT; , |
31407-90X13 |
US $16.70 |
||
|
31440
|
31440
31440-90X01 Carrier Assy-Rear Planet2005-08-01 ~ 2006-11-01; AT; , |
31440-90X01 |
US $499.85 |
||
|
31450
|
31450
31450-90X00 Gear Assy-Internal2005-08-01 ~ 2006-11-01; AT; , |
31450-90X00 |
US $259.20 |
||
|
31453M
|
31453M
31453-97X00 Carrier Assy-Mid2005-08-01 ~ 2006-11-01; AT; , |
31453-97X00 |
US $269.28 |
||
|
31460
|
31460
31460-90X02 Gear Assy-Sun2005-08-01 ~ 2006-11-01; AT; , |
31460-90X02 |
from US $259.20 |
||
|
31468
|
31468
31468-90X00 Gear Assy-Sun, Rear2005-08-01 ~ 2006-11-01; AT; , |
31468-90X00 |
US $204.48 |
||
|
31473
|
31473
31473-90X00 Clutch Assy-One Way2005-08-01 ~ 2006-11-01; AT; , |
31473-90X00 |
US $101.09 |
||
|
31476
|
31476
31506-90X06 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X06 |
US $5.33 |
||
|
31476
|
31476
31506-95X02 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-95X02 |
US $5.33 |
||
|
31476
|
31476
31506-90X09 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X09 |
US $5.33 |
||
|
31476
|
31476
31506-90X10 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X10 |
US $5.33 |
||
|
31476+A
|
31476+A
31506-95X02 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-95X02 |
US $5.33 |
||
|
31476+B
|
31476+B
31506-90X09 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X09 |
US $5.33 |
||
|
31476+C
|
31476+C
31506-90X10 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X10 |
US $5.33 |
||
|
31480
|
31480
31481-90X07 Shaft Assy-Output2005-08-01 ~ 2006-11-01; AT; , |
31481-90X07 |
US $152.64 |
||
|
31486F
|
31486F
31525-90X08 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X08 |
US $4.18 |
||
|
31486F
|
31486F
31525-90X08 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X08 |
US $4.18 |
||
|
31486M
|
31486M
31486-90X00 Gear-Parking2005-08-01 ~ 2006-11-01; AT; , |
31486-90X00 |
US $87.12 |
||
|
31487
|
31487
31525-90X07 Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE RIKEN |
31525-90X07 |
US $6.19 |
||
|
31487
|
31487
31525-90X0A Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE NOK |
31525-90X0A |
US $6.19 |
||
|
31487
|
31487
31525-90X07 Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE RIKEN |
31525-90X07 |
US $6.19 |
||
|
31487
|
31487
31525-90X0A Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE NOK |
31525-90X0A |
US $6.19 |
||
|
31487
|
31487
31525-90X07 Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE RIKEN |
31525-90X07 |
US $6.19 |
||
|
31487
|
31487
31525-90X0A Ring-Seal2005-08-01 ~ 2006-11-01; AT; SELECT USE NOK |
31525-90X0A |
US $6.19 |
||
|
31506M
|
31506M
31506-90X02 Ring-Snap2005-08-01 ~ 2006-11-01; AT; , |
31506-90X02 |
US $2.45 |
||
|
31525N
|
31525N
31525-90X09 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X09 |
US $5.18 |
||
|
31525N
|
31525N
31525-90X03 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X03 |
from US $5.18 |
||
|
31525N
|
31525N
31525-90X09 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X09 |
US $5.18 |
||
|
31525N
|
31525N
31525-90X03 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X03 |
from US $5.18 |
||
|
31525NA
|
31525NA
31525-90X03 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X03 |
from US $5.18 |
||
|
31525NA
|
31525NA
31525-90X03 Ring-Seal2005-08-01 ~ 2006-11-01; AT; , |
31525-90X03 |
from US $5.18 |
||
|
31550N
|
31550N
31551-90X03 Hub Assy-High & Low, Clutch2005-08-01 ~ 2006-11-01; AT; , |
31551-90X03 |
US $118.94 |
||
|
31554N
|
31554N
31554-90X00 Clutch Assy-Oneway2005-08-01 ~ 2006-11-01; AT; , |
31554-90X00 |
US $69.26 |
