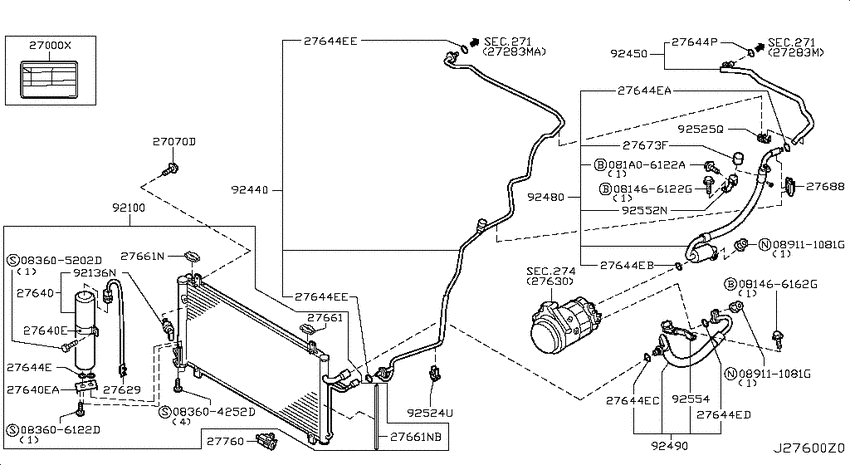

Condensor, liquid tank (2006-11-01 ~ ; C +CV) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- GT
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081A06122A
|
081A06122A
081A0-6122A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A0-6122A |
— | ||
|
083604252D
|
083604252D
08360-4252D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-4252D |
— | ||
|
083605202D
|
083605202D
08360-5202D
SCREW
|
08360-5202D |
— | ||
|
083606122D
|
083606122D
08360-6122D
Screw
|
08360-6122D |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
27000X
|
27000X
27090-C9903
Label-Caution, Air Conditioner
2006-11-01 ~ ; C +CV; , |
27090-C9903 |
— | ||
|
27070D
|
27070D
01456-00421 SCREW2006-11-01 ~ ; C +CV; , |
01456-00421 |
from US $0.57 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
274
|
Compressor
274
|
||||
|
27629
|
27629
92825-CD000 Harness-Air Conditioner2006-11-01 ~ ; C +CV; , |
92825-CD000 |
US $34.56 |
||
|
27640
|
27640
92131-1DJ0A Tank Assy-Liquid2008-08-01 ~ ; C +CV; , |
92131-1DJ0A |
from US $114.19 |
||
|
27640
|
27640
92131-4M420 Tank Assy-Liquid2006-11-01 ~ 2008-08-01; C +CV; , |
92131-4M420 |
US $114.19 |
||
|
27640
|
27640
921454W000 Bracket-Liquid Tank2006-11-01 ~ ; C +CV; , |
921454W000 |
US $6.34 |
||
|
27640
|
27640
92135-3Y920 Bracket-Liquid Tank2006-11-01 ~ 2007-03-01; C +CV; , |
92135-3Y920 |
US $4.18 |
||
|
27640
|
27640
92135-3Y92A Bracket-Liquid Tank2007-03-01 ~ ; C +CV; , |
92135-3Y92A |
US $4.18 |
||
|
27640E
|
27640E
921454W000 Bracket-Liquid Tank2006-11-01 ~ ; C +CV; , |
921454W000 |
US $6.34 |
||
|
27640E
|
27640E
92135-3Y920 Bracket-Liquid Tank2006-11-01 ~ 2007-03-01; C +CV; , |
92135-3Y920 |
US $4.18 |
||
|
27640E
|
27640E
92135-3Y92A Bracket-Liquid Tank2007-03-01 ~ ; C +CV; , |
92135-3Y92A |
US $4.18 |
||
|
27640EA
|
27640EA
92135-3Y920 Bracket-Liquid Tank2006-11-01 ~ 2007-03-01; C +CV; , |
92135-3Y920 |
US $4.18 |
||
|
27640EA
|
27640EA
92135-3Y92A Bracket-Liquid Tank2007-03-01 ~ ; C +CV; , |
92135-3Y92A |
US $4.18 |
||
|
27644E
|
27644E
92471-N8210
O Ring
2006-11-01 ~ ; C +CV; , |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring2006-11-01 ~ ; C +CV; , |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92473N8221 O Ring2006-11-01 ~ ; C +CV; , |
92473N8221 |
from US $0.85 |
||
|
27644E
|
27644E
92474N8210 O Ring2006-11-01 ~ ; C +CV; , |
92474N8210 |
US $1.68 |
||
|
27644E
|
27644E
92472N8221 O Ring2006-11-01 ~ ; C +CV; , |
92472N8221 |
US $0.86 |
||
|
27644E
|
27644E
92472N8210 O Ring2006-11-01 ~ ; C +CV; , |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92471N8221 O Ring2006-11-01 ~ ; C +CV; , |
92471N8221 |
from US $0.85 |
||
|
27644EA
|
27644EA
92473N8221 O Ring2006-11-01 ~ ; C +CV; , |
92473N8221 |
from US $0.85 |
||
|
27644EB
|
27644EB
92474N8210 O Ring2006-11-01 ~ ; C +CV; , |
92474N8210 |
US $1.68 |
||
|
27644EC
|
27644EC
92472N8221 O Ring2006-11-01 ~ ; C +CV; , |
92472N8221 |
US $0.86 |
||
|
27644ED
|
27644ED
92472N8210 O Ring2006-11-01 ~ ; C +CV; , |
92472N8210 |
from US $0.98 |
||
|
27644EE
|
27644EE
92471N8221 O Ring2006-11-01 ~ ; C +CV; , |
92471N8221 |
from US $0.85 |
||
|
27644EE
|
27644EE
92471N8221 O Ring2006-11-01 ~ ; C +CV; , |
92471N8221 |
from US $0.85 |
||
|
27644P
|
27644P
92473N8221 O Ring2006-11-01 ~ ; C +CV; , |
92473N8221 |
from US $0.85 |
||
|
27661
|
27661
92182-CD000 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92182-CD000 |
US $2.53 |
||
|
27661
|
27661
92184-CD000 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92184-CD000 |
US $2.02 |
||
|
27661
|
27661
92185-AL500 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92185-AL500 |
US $2.39 |
||
|
27661N
|
27661N
92184-CD000 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92184-CD000 |
US $2.02 |
||
|
27661N
|
27661N
92185-AL500 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92185-AL500 |
US $2.39 |
||
|
27661NB
|
27661NB
92185-AL500 Seal-Rubber2006-11-01 ~ ; C +CV; , |
92185-AL500 |
US $2.39 |
||
|
27673F
|
27673F
925572J000 Protector-Clamp Tube2006-11-01 ~ 2007-02-01; C +CV; , |
925572J000 |
US $3.37 |
||
|
27688
|
27688
92560-AL500 Grommet-Dash2006-11-01 ~ ; C +CV; , |
92560-AL500 |
US $25.20 |
||
|
27760
|
27760
27722AL500 Sensor Assy-Ambient2006-11-01 ~ ; C +CV; , |
27722AL500 |
from US $19.82 |
||
|
92100
|
92100
92100CD00A CONDENSER LIQ2006-11-01 ~ ; C +CV; , |
92100CD00A |
US $545.16 |
||
|
92136N
|
92136N
921361FA0A Sensor Assy-Pressure2008-08-01 ~ ; C +CV; , |
921361FA0A |
from US $50.83 |
||
|
92136N
|
92136N
92136-6J010 Sensor Assy-Pressure2006-11-01 ~ 2008-08-01; C +CV; , |
92136-6J010 |
US $50.83 |
||
|
92440
|
92440
92440-EV00A Pipe-front cooler,high2006-11-01 ~ ; C +CV; , |
92440-EV00A |
US $108.85 |
||
|
92450
|
92450
92450-EV00A
Pipe-front cooler,low
2006-11-01 ~ ; C +CV; , |
92450-EV00A |
— | ||
|
92480
|
92480
92480-EV00A
Hose-flexible,low
2006-11-01 ~ 2006-12-01; C +CV; , |
92480-EV00A |
— | ||
|
92480
|
92480
92480-EV00B
Hose-flexible,low
2006-12-01 ~ ; C +CV; , |
92480-EV00B |
— | ||
|
92490
|
92490
92490-EV00A
Hose-flexible,high
2006-11-01 ~ 2006-12-01; C +CV; , |
92490-EV00A |
— | ||
|
92490
|
92490
92490-EV00B HOSEFLEXIBLEH2006-12-01 ~ ; C +CV; , |
92490-EV00B |
US $217.44 |
||
|
92524U
|
92524U
4627160U05 Clip2006-11-01 ~ ; C +CV; , |
4627160U05 |
US $1.67 |
||
|
92525Q
|
92525Q
92551-AM600
Clip
2006-11-01 ~ ; C +CV; , |
92551-AM600 |
— | ||
|
92552N
|
92552N
92553-EV00A ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ ｸﾘﾂﾌﾟ2006-11-01 ~ 2007-02-01; C +CV; , |
92553-EV00A |
US $12.96 |
||
|
92552N
|
92552N
92553-EV00B ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ ｸﾘﾂﾌﾟ2007-02-01 ~ ; C +CV; , |
92553-EV00B |
US $12.96 |
||
|
92554
|
92554
92554-EV00A ﾌﾞﾗｹﾂﾄ,ﾊﾟｲﾌﾟ2006-11-01 ~ 2007-03-01; C +CV; , |
92554-EV00A |
US $12.96 |
||
|
92554
|
92554
92554-EV00B ﾌﾞﾗｹﾂﾄ,ﾊﾟｲﾌﾟ2007-03-01 ~ ; C +CV; , |
92554-EV00B |
US $12.96 |
||
