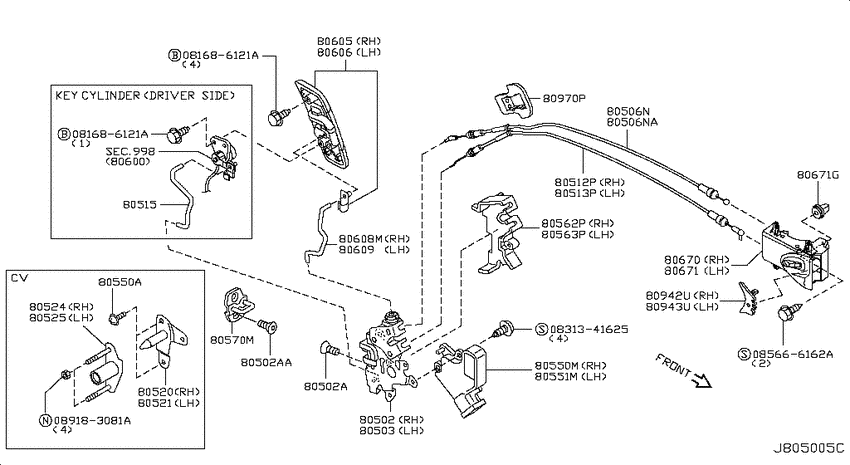

Front door lock & handle (2006-11-01 ~ ; C +CV) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- GT
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
0831341625
|
0831341625
08313-41625
Болт
|
08313-41625 |
— | ||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.93 |
||
|
80502
|
80502
80502-AR201
Lock assy-front door,rh
2006-11-01 ~ ; C +CV; , |
80502-AR201 |
— | ||
|
80502
|
80502
80599AX00E Screw2006-11-01 ~ ; CV; , |
80599AX00E |
US $2.45 |
||
|
80502
|
80502
0143300181 SCREW2006-11-01 ~ ; C +CV; , |
0143300181 |
US $2.45 |
||
|
80502A
|
80502A
80599AX00E Screw2006-11-01 ~ ; CV; , |
80599AX00E |
US $2.45 |
||
|
80502A
|
80502A
0143300181 SCREW2006-11-01 ~ ; C +CV; , |
0143300181 |
US $2.45 |
||
|
80502AA
|
80502AA
0143300181 SCREW2006-11-01 ~ ; C +CV; , |
0143300181 |
US $2.45 |
||
|
80503
|
80503
80503-AR200
Lock assy-front door,lh
2006-11-01 ~ ; C +CV; , |
80503-AR200 |
— | ||
|
80506N
|
80506N
80506-CD00A CABLEFRONT DOO2006-11-01 ~ ; C +CV; , |
80506-CD00A |
US $12.38 |
||
|
80506N
|
80506N
80506-CD00A CABLEFRONT DOO2006-11-01 ~ ; C +CV; , |
80506-CD00A |
US $12.38 |
||
|
80506NA
|
80506NA
80506-CD00A CABLEFRONT DOO2006-11-01 ~ ; C +CV; , |
80506-CD00A |
US $12.38 |
||
|
80512P
|
80512P
80512-CD000 ｹｰﾌﾞﾙ,ﾛﾂｸ ﾉﾌﾞ rh2006-11-01 ~ ; C +CV; , |
80512-CD000 |
US $12.38 |
||
|
80513P
|
80513P
80513-CD000 ｹｰﾌﾞﾙ,ﾛﾂｸ ﾉﾌﾞ lh2006-11-01 ~ ; C +CV; , |
80513-CD000 |
US $12.38 |
||
|
80515
|
80515
80515-CD000
Rod-key lock,lh
2006-11-01 ~ ; C +CV; , |
80515-CD000 |
— | ||
|
80520
|
80520
80520-CE410 ﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ rh2006-11-01 ~ 2006-12-01; CV; , |
80520-CE410 |
US $95.33 |
||
|
80520
|
80520
80520CE41A ﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ rh2006-12-01 ~ ; CV; , |
80520CE41A |
US $95.33 |
||
|
80521
|
80521
80521-CE410 ﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ lh2006-11-01 ~ 2006-12-01; CV; , |
80521-CE410 |
US $95.33 |
||
|
80521
|
80521
80521-CE41A ﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ lh2006-12-01 ~ ; CV; , |
80521-CE41A |
US $95.33 |
||
|
80524
|
80524
80524-CE410 ﾌｲﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ rh2006-11-01 ~ 2006-12-01; CV; , |
80524-CE410 |
US $68.69 |
||
|
80524
|
80524
80524CE41A ﾌｲﾒｰﾙ,rh2006-12-01 ~ ; CV; , |
80524CE41A |
US $68.69 |
||
|
80525
|
80525
80525-CE410 ﾌｲﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ lh2006-11-01 ~ 2006-12-01; CV; , |
80525-CE410 |
US $68.69 |
||
|
80525
|
80525
80525-CE41A ﾌｲﾒｰﾙ,ﾀﾞﾌﾞﾃｰﾙ lh2006-12-01 ~ ; CV; , |
80525-CE41A |
US $68.69 |
||
|
80550A
|
80550A
80498-CE400 ﾎﾞﾙﾄ2006-11-01 ~ 2007-01-01; CV; , |
80498-CE400 |
US $2.45 |
||
|
80550A
|
80550A
80498CE40A Bolt2007-01-01 ~ ; CV; , |
80498CE40A |
US $2.45 |
||
|
80550M
|
80550M
80552-AL510 Actuator-Auto Door Lock, Front Rh2006-11-01 ~ ; C +CV; , |
80552-AL510 |
US $91.30 |
||
|
80551M
|
80551M
80553AL510 ACTUATORAUTO D2006-11-01 ~ ; C +CV; , |
80553AL510 |
from US $104.09 |
||
|
80562P
|
80562P
80562AR000 Cover-Front Door Lock, Rh2006-11-01 ~ ; C +CV; , |
80562AR000 |
US $11.38 |
||
|
80563P
|
80563P
80563-AR000 Cover-Front Door Lock, Lh2006-11-01 ~ ; C +CV; , |
80563-AR000 |
US $11.38 |
||
|
80570M
|
80570M
80570AA20A Striker Assy-Front Door Lock2006-11-01 ~ ; C +CV; , |
80570AA20A |
from US $32.98 |
||
|
80605
|
80605
80606-CD00C
Handle assy-front door outside,rh
2006-11-01 ~ ; C +CV; , |
80606-CD00C |
— | ||
|
80606
|
80606
80607-CD40C
Handle assy-front door outside,lh
2006-11-01 ~ ; C +CV; , |
80607-CD40C |
— | ||
|
80608M
|
80608M
80608-CD000 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｱｳﾄｻｲﾄﾞ ﾊﾝﾄﾞﾙ rh2006-11-01 ~ ; C +CV; , |
80608-CD000 |
from US $12.01 |
||
|
80609
|
80609
80609CD000 ROD ASSYOUTSID2006-11-01 ~ ; C +CV; , |
80609CD000 |
from US $12.12 |
||
|
80670
|
80670
80670-CF000 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ rh2006-11-01 ~ 2006-12-01; C +CV; , |
80670-CF000 |
US $82.94 |
||
|
80670
|
80670
80670-CF00A ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ rh2007-07-01 ~ ; C +CV; , |
80670-CF00A |
US $82.94 |
||
|
80670
|
80670
80670-EV00A
Handle assy-door inside,rh
2006-12-01 ~ 2007-07-01; C +CV; , |
80670-EV00A |
— | ||
|
80671
|
80671
80671-CF000 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ lh2006-11-01 ~ 2006-12-01; C +CV; , |
80671-CF000 |
US $82.94 |
||
|
80671
|
80671
80671-CF00A ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ lh2007-07-01 ~ ; C +CV; , |
80671-CF00A |
US $82.94 |
||
|
80671
|
80671
80671-EV00A
Handle assy-door inside,lh
2006-12-01 ~ 2007-07-01; C +CV; , |
80671-EV00A |
— | ||
|
80671
|
80671
0128101231 GROMMET-SCREW2006-11-01 ~ ; C +CV; , |
0128101231 |
from US $2.24 |
||
|
80671G
|
80671G
0128101231 GROMMET-SCREW2006-11-01 ~ ; C +CV; , |
0128101231 |
from US $2.24 |
||
|
80942U
|
80942U
80942-CD000 ｷﾔﾂﾌﾟ,ﾄﾞｱ ﾌｲﾆﾂｼﾔｰ2006-11-01 ~ ; C +CV; , |
80942-CD000 |
US $5.62 |
||
|
80943U
|
80943U
80943CD000 ｷﾔﾂﾌﾟ,ﾄﾞｱ ﾌｲﾆﾂｼ2006-11-01 ~ ; C +CV; , |
80943CD000 |
US $5.62 |
||
|
80970P
|
80970P
80970-AR000 Grommet-Lock Knob2006-11-01 ~ ; C +CV; , |
80970-AR000 |
US $7.20 |
