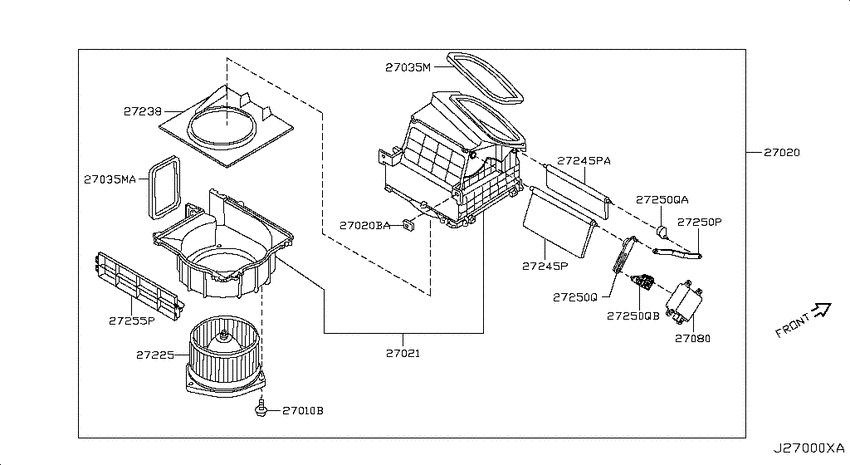

Heater & blower unit (2006-11-01 ~ ; BROWER UNIT; C +CV) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- GT
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010B
|
27010B
27111-2Y000 Screw2006-11-01 ~ 2007-01-01; C +CV; , |
27111-2Y000 |
US $1.73 |
||
|
27010B
|
27010B
271112Y00A Screw2007-01-01 ~ ; C +CV; , |
271112Y00A |
US $1.73 |
||
|
27020
|
27020
27200-CD00A
Blower Assy-Front
2006-11-01 ~ ; C +CV; , |
27200-CD00A |
— | ||
|
27020
|
27020
0124100011 NUT2006-11-01 ~ ; C +CV; , |
0124100011 |
from US $2.21 |
||
|
27020
|
27020
0124100011 NUT2006-11-01 ~ ; C +CV; , |
0124100011 |
from US $2.21 |
||
|
27020BA
|
27020BA
0124100011 NUT2006-11-01 ~ ; C +CV; , |
0124100011 |
from US $2.21 |
||
|
27021
|
27021
27235-CD000
Case-Blower
2006-11-01 ~ ; C +CV; , |
27235-CD000 |
— | ||
|
27035M
|
27035M
28713-CD000 Seal2006-11-01 ~ ; C +CV; , |
28713-CD000 |
US $1.58 |
||
|
27035M
|
27035M
28714-AL500 Seal2006-11-01 ~ ; C +CV; , |
28714-AL500 |
US $0.86 |
||
|
27035MA
|
27035MA
28714-AL500 Seal2006-11-01 ~ ; C +CV; , |
28714-AL500 |
US $0.86 |
||
|
27080
|
27080
27730AL500
Actuator-Air Intake Box
2006-11-01 ~ ; C +CV; , |
27730AL500 |
— | ||
|
27225
|
27225
27225-AM611
Motor & Fan Assy-Blower
2006-11-01 ~ ; C +CV; , |
27225-AM611 |
— | ||
|
27238
|
27238
27238-AM600
Bellmouth-Intake
2006-11-01 ~ 2007-10-01; C +CV; , |
27238-AM600 |
— | ||
|
27238
|
27238
27238-AM60A
Bellmouth-Intake
2007-10-01 ~ ; C +CV; , |
27238-AM60A |
— | ||
|
27245P
|
27245P
27245-AL500 Door-Intake Blower, Front2006-11-01 ~ ; C +CV; , |
27245-AL500 |
US $10.22 |
||
|
27245P
|
27245P
27245-AL501 Door-Intake Blower, Front2006-11-01 ~ ; C +CV; , |
27245-AL501 |
US $8.78 |
||
|
27245PA
|
27245PA
27245-AL501 Door-Intake Blower, Front2006-11-01 ~ ; C +CV; , |
27245-AL501 |
US $8.78 |
||
|
27250P
|
27250P
27250-AL500 Lever2006-11-01 ~ ; C +CV; , |
27250-AL500 |
US $1.58 |
||
|
27250Q
|
27250Q
27253AL500 Lever2006-11-01 ~ ; C +CV; , |
27253AL500 |
US $1.58 |
||
|
27250Q
|
27250Q
272535V000 Lever2006-11-01 ~ ; C +CV; , |
272535V000 |
US $1.58 |
||
|
27250Q
|
27250Q
27253AL510 Lever2006-11-01 ~ ; C +CV; , |
27253AL510 |
US $1.58 |
||
|
27250QA
|
27250QA
272535V000 Lever2006-11-01 ~ ; C +CV; , |
272535V000 |
US $1.58 |
||
|
27250QB
|
27250QB
27253AL510 Lever2006-11-01 ~ ; C +CV; , |
27253AL510 |
US $1.58 |
||
|
27255P
|
27255P
27276-CD00A Shaft-Door, Intake Blower2007-10-01 ~ ; C +CV; , |
27276-CD00A |
US $5.18 |
