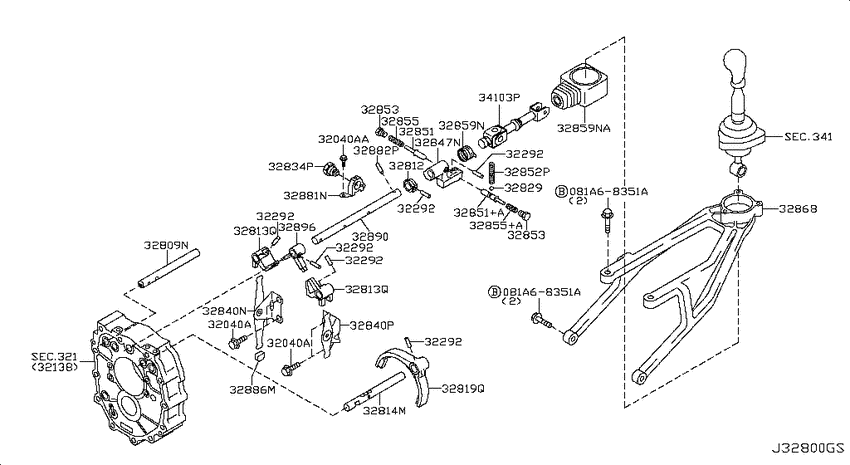

Transmission shift control (2006-11-01 ~ ; HOUSING & CHECKING ASSY; MT) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- GT
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A68351A
|
081A68351A
081A6-8351A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-8351A |
— | ||
|
081A68351A
|
081A68351A
081A6-8351A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-8351A |
— | ||
|
32040A
|
32040A
32929-03E00 BOLT-REAMER2006-11-01 ~ ; MT; , |
32929-03E00 |
US $1.73 |
||
|
32040A
|
32040A
32949-CD000 Bolt2006-11-01 ~ ; MT; , |
32949-CD000 |
from US $2.15 |
||
|
32040A
|
32040A
32929-03E00 BOLT-REAMER2006-11-01 ~ ; MT; , |
32929-03E00 |
US $1.73 |
||
|
32040A
|
32040A
32949-CD000 Bolt2006-11-01 ~ ; MT; , |
32949-CD000 |
from US $2.15 |
||
|
32040AA
|
32040AA
32949-CD000 Bolt2006-11-01 ~ ; MT; , |
32949-CD000 |
from US $2.15 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32809N
|
32809N
32809-CD001 Rod-Fork, 3Rd & 4Th2006-11-01 ~ ; MT; , |
32809-CD001 |
from US $44.35 |
||
|
32809N
|
32809N
32809-CD010 Rod-Fork, 3Rd & 4Th2006-11-01 ~ ; MT; , |
32809-CD010 |
US $44.35 |
||
|
32812
|
32812
32812-CD000 Stopper-Ring2006-11-01 ~ ; MT; , |
32812-CD000 |
US $11.81 |
||
|
32813Q
|
32813Q
32813-CD001 Bracket-Rod, 3Rd & 4Th2006-11-01 ~ ; MT; , |
32813-CD001 |
US $27.36 |
||
|
32813Q
|
32813Q
32813-CD001 Bracket-Rod, 3Rd & 4Th2006-11-01 ~ ; MT; , |
32813-CD001 |
US $27.36 |
||
|
32814M
|
32814M
32814-CD001 Rod-Fork, Reverse2006-11-01 ~ ; MT; , |
32814-CD001 |
US $27.36 |
||
|
32819Q
|
32819Q
32819-CD000 Fork-Shift, Reverse2006-11-01 ~ ; MT; , |
32819-CD000 |
US $42.62 |
||
|
32829
|
32829
32829-26760 Ball-Check2010-01-01 ~ ; MT; , |
32829-26760 |
from US $0.74 |
||
|
32829
|
32829
32829-96W00
Ball-Check
2006-11-01 ~ 2010-01-01; MT; , |
32829-96W00 |
— | ||
| replacement | |||||
|
32829
|
32829
32829-26760 Ball-Check2006-11-01 ~ 2010-01-01; MT; , |
32829-26760 |
from US $0.74 |
||
|
32834P
|
32834P
32834-8H51A Pin-Shift, Check2006-11-01 ~ ; MT; , |
32834-8H51A |
US $16.85 |
||
|
32840N
|
32840N
32840-CD10A Lever Assyl-Control, 3Rd & 4Th2006-11-01 ~ ; MT; , |
32840-CD10A |
US $22.18 |
||
|
32840P
|
32840P
32840-CD00A Lever Assyl-Control, 5Th & 6Th2006-11-01 ~ ; MT; , |
32840-CD00A |
US $16.13 |
||
|
32847N
|
32847N
32847-CD000 Lever-Control, Low & High2006-11-01 ~ ; MT; , |
32847-CD000 |
US $18.72 |
||
|
32851
|
32851
32851-CD000 Plunger2006-11-01 ~ ; MT; F/LOW |
32851-CD000 |
US $9.07 |
||
|
32851
|
32851
32851-CD010 Plunger2006-11-01 ~ ; MT; F/HIGH |
32851-CD010 |
US $8.45 |
||
|
32851+A
|
32851+A
32851-CD010 Plunger2006-11-01 ~ ; MT; F/HIGH |
32851-CD010 |
US $8.45 |
||
|
32852P
|
32852P
32852-CD001 Spring-Select Check2006-11-01 ~ ; MT; , |
32852-CD001 |
US $2.45 |
||
|
32853
|
32853
32854-01G0A Plug-Return Spring2006-11-01 ~ ; MT; , |
32854-01G0A |
US $4.18 |
||
|
32853
|
32853
32854-01G0A Plug-Return Spring2006-11-01 ~ ; MT; , |
32854-01G0A |
US $4.18 |
||
|
32855
|
32855
32855-CD001 Spring-Return2006-11-01 ~ ; MT; F/LOW |
32855-CD001 |
US $2.45 |
||
|
32855
|
32855
32855-CD011 Spring-Return2006-11-01 ~ ; MT; F/HIGH |
32855-CD011 |
US $2.27 |
||
|
32855+A
|
32855+A
32855-CD011 Spring-Return2006-11-01 ~ ; MT; F/HIGH |
32855-CD011 |
US $2.27 |
||
|
32859N
|
32859N
328596J000 Boot-Rod, Striking2006-11-01 ~ ; MT; , |
328596J000 |
from US $5.18 |
||
|
32859N
|
32859N
32859-CD000 Boot-Control Rod2006-11-01 ~ ; MT; , |
32859-CD000 |
US $14.83 |
||
|
32859NA
|
32859NA
32859-CD000 Boot-Control Rod2006-11-01 ~ ; MT; , |
32859-CD000 |
US $14.83 |
||
|
32868
|
32868
32868-CD50A Housing Assy-Control Lever2006-11-01 ~ ; MT; , |
32868-CD50A |
US $162.17 |
||
|
32881N
|
32881N
32881-CD00A Bracket-Control Rod2006-11-01 ~ ; MT; , |
32881-CD00A |
US $26.93 |
||
|
32882P
|
32882P
34133M8000 Pin-Retaining2006-11-01 ~ ; MT; , |
34133M8000 |
from US $4.03 |
||
|
32886M
|
32886M
32886-8H500 Cap-Shifter2006-11-01 ~ ; MT; , |
32886-8H500 |
US $1.73 |
||
|
32890
|
32890
32892-CD005 Rod-Striking2006-11-01 ~ ; MT; , |
32892-CD005 |
US $31.82 |
||
|
32896
|
32896
32896-CD000 Lever-Striking2006-11-01 ~ ; MT; , |
32896-CD000 |
US $33.98 |
||
|
34103P
|
34103P
34103-CD00A Rod Assy-Control2006-11-01 ~ ; MT; , |
34103-CD00A |
US $122.11 |
||
