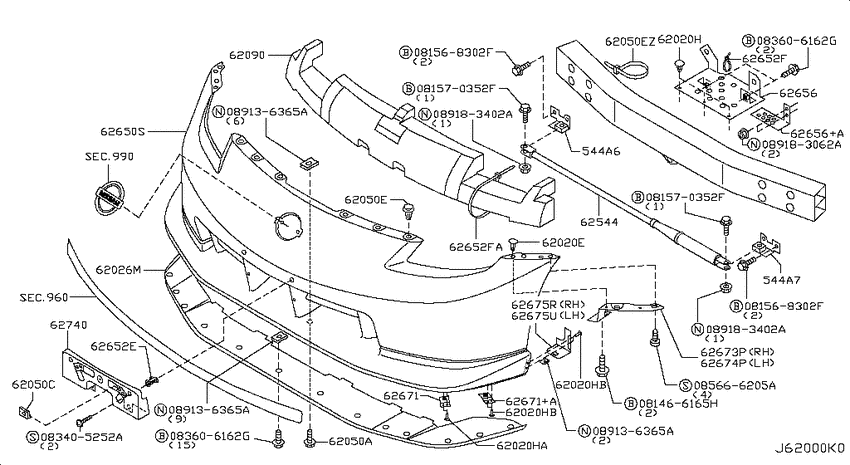

Front bumper (2007-05-01 ~ ; NISMO VERSION; *C.ENTHUSIA.MT) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- ENTHUSIA
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165H
|
081466165H
081466165H Bolt-hexagon |
081466165H |
from US $0.63 |
||
|
081568302F
|
081568302F
08156-8302F ﾎﾞﾙﾄ |
08156-8302F |
US $2.45 |
||
|
081568302F
|
081568302F
08156-8302F ﾎﾞﾙﾄ |
08156-8302F |
US $2.45 |
||
|
081570352F
|
081570352F
081570352F
ﾎﾞﾙﾄ
|
081570352F |
— | ||
|
081570352F
|
081570352F
081570352F
ﾎﾞﾙﾄ
|
081570352F |
— | ||
|
083405252A
|
083405252A
083405252A
SCREWMACHINE
|
083405252A |
— | ||
|
083606162G
|
083606162G
08360-6162G
SCREWMACHINE
|
08360-6162G |
— | ||
|
083606162G
|
083606162G
08360-6162G
SCREWMACHINE
|
08360-6162G |
— | ||
|
085666205A
|
085666205A
085666205A SCREW TAPPING |
085666205A |
from US $0.54 |
||
|
089136365A
|
089136365A
089136365A NUT U SHAPE |
089136365A |
from US $1.63 |
||
|
089136365A
|
089136365A
089136365A NUT U SHAPE |
089136365A |
from US $1.63 |
||
|
089136365A
|
089136365A
089136365A NUT U SHAPE |
089136365A |
from US $1.63 |
||
|
089183062A
|
089183062A
089183062A NUTFLANGEHEX |
089183062A |
US $1.18 |
||
|
089183402A
|
089183402A
089183402A NUT |
089183402A |
US $0.72 |
||
|
089183402A
|
089183402A
089183402A NUT |
089183402A |
US $0.72 |
||
|
544A6
|
544A6
E44A6-1A300
Bracket Assy-Damper Bar, Front Rh
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
E44A6-1A300 |
— | ||
|
544A7
|
544A7
E44A7-1A300
Bracket Assy-Damper Bar, Front Lh
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
E44A7-1A300 |
— | ||
|
62020E
|
62020E
0155301A50 Clamp-Propeller Shaft Balance2006-11-01 ~ ; C +CV; , |
0155301A50 |
from US $0.54 |
||
|
62020H
|
62020H
U0RVT-1A012
Rivet
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
U0RVT-1A012 |
— | ||
|
62020H
|
62020H
U0RVT-1A012
Rivet
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
U0RVT-1A012 |
— | ||
|
62020H
|
62020H
68399CF40A Rivet-Blind2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
68399CF40A |
from US $0.28 |
||
|
62020HA
|
62020HA
U0RVT-1A012
Rivet
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
U0RVT-1A012 |
— | ||
|
62020HB
|
62020HB
68399CF40A Rivet-Blind2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
68399CF40A |
from US $0.28 |
||
|
62020HB
|
62020HB
68399CF40A Rivet-Blind2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
68399CF40A |
from US $0.28 |
||
|
62026M
|
62026M
F2026-1A44A
Fascia front bumper lower
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F2026-1A44A |
— | ||
|
62050A
|
62050A
0145600691 SCREW2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
0145600691 |
from US $0.67 |
||
|
62050C
|
62050C
01241-00661 NUT-SPRING2006-11-01 ~ ; C +CV; , |
01241-00661 |
US $1.73 |
||
|
62050E
|
62050E
0155309241 CLAMP2006-11-01 ~ ; C +CV; , |
0155309241 |
from US $0.82 |
||
|
62050E
|
62050E
0155310541
CLIP-TRIM
2006-11-01 ~ ; C +CV; , |
0155310541 |
— | ||
| replacement | |||||
|
62050E
|
62050E
01553-05933 CLIP2006-11-01 ~ ; C +CV; , |
01553-05933 |
from US $0.65 |
||
|
62050E
|
62050E
24220-R2000 Clip-Wiring Harness2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
24220-R2000 |
US $3.46 |
||
|
62050EZ
|
62050EZ
24220-R2000 Clip-Wiring Harness2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
24220-R2000 |
US $3.46 |
||
|
62090
|
62090
62090-CF40A Energy absorber-front bumper2006-11-01 ~ ; C +CV; , |
62090-CF40A |
from US $73.20 |
||
|
62544
|
62544
E44B2-1A310
Bar assy-damper front
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
E44B2-1A310 |
— | ||
|
62650S
|
62650S
62022-CF40J
Fascia kit-front bumper
2006-11-01 ~ 2007-08-01; C +CV; NO PAINT |
62022-CF40J |
— | ||
| replacement | |||||
|
62650S
|
62650S
62022-CF40H
Fascia kit-front bumper
2006-11-01 ~ 2007-08-01; C +CV; NO PAINT |
62022-CF40H |
— | ||
|
62650S
|
62650S
F2022-1A45H
Fascia kit-front bumper
2007-05-01 ~ 2007-08-01; *C.ENTHUSIA.MT; NO PAINT |
F2022-1A45H |
— | ||
|
62650S
|
62650S
FBM22-1A45H
Fascia kit-front bumper
2007-08-01 ~ ; *C.ENTHUSIA.MT; NO PAINT |
FBM22-1A45H |
— | ||
|
62650S
|
62650S
FBM22-CF40J
Fascia kit-front bumper
2007-08-01 ~ ; C +CV; NO PAINT |
FBM22-CF40J |
— | ||
| replacement | |||||
|
62650S
|
62650S
FBM22-CF40H
Fascia kit-front bumper
2007-08-01 ~ ; C +CV; NO PAINT |
FBM22-CF40H |
— | ||
|
62652E
|
62652E
6228481F00 Grommet-Screw2006-11-01 ~ ; C +CV; , |
6228481F00 |
from US $0.89 |
||
|
62652F
|
62652F
01552-00043
CLIP
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
01552-00043 |
— | ||
| replacement | |||||
|
62652F
|
62652F
2421610Y80 Clamp2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
2421610Y80 |
from US $4.42 |
||
|
62652F
|
62652F
2421610Y80 Clamp2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
2421610Y80 |
from US $4.42 |
||
|
62652FA
|
62652FA
2421610Y80 Clamp2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
2421610Y80 |
from US $4.42 |
||
|
62656
|
62656
F5626-1A45A
Protector-hood control cable
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F5626-1A45A |
— | ||
|
62656
|
62656
F5626-1A45B
Protector-hood control cable
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F5626-1A45B |
— | ||
|
62656+A
|
62656+A
F5626-1A45B
Protector-hood control cable
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F5626-1A45B |
— | ||
|
62671
|
62671
62210CD010 Stay-Front Bumper, Rh2006-11-01 ~ ; C +CV; , |
62210CD010 |
US $61.68 |
||
|
62671
|
62671
F2212-1A45A
Stay-front bumper,rh
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F2212-1A45A |
— | ||
|
62671
|
62671
F2212-1A45B
Stay-front bumper,rh
2007-05-01 ~ ; *C.ENTHUSIA.MT; NO PAINT |
F2212-1A45B |
— | ||
|
62671+A
|
62671+A
F2212-1A45B
Stay-front bumper,rh
2007-05-01 ~ ; *C.ENTHUSIA.MT; NO PAINT |
F2212-1A45B |
— | ||
|
62673P
|
62673P
62222CD001 Bracket-Front Bumper Side, Rh2006-11-01 ~ ; C +CV; , |
62222CD001 |
from US $12.54 |
||
|
62674P
|
62674P
62223CD001 Bracket-Front Bumper Side, Lh2006-11-01 ~ ; C +CV; , |
62223CD001 |
from US $12.49 |
||
|
62675R
|
62675R
F2220-1A45A
Bracket-front bumper lower,rh
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F2220-1A45A |
— | ||
|
62675U
|
62675U
F2221-1A45A
Bracket-front bumper lower,lh
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
F2221-1A45A |
— | ||
|
62740
|
62740
96212CF40A BRACKETLICENCE2006-11-01 ~ ; C +CV; , |
96212CF40A |
US $69.41 |
||
|
62740
|
62740
K6210-1A45A
Bracket-licence plate
2007-05-01 ~ ; *C.ENTHUSIA.MT; , |
K6210-1A45A |
— | ||
|
960
|
Air spoiler
960
|
||||
|
960
|
Air spoiler
960
|
||||
|
960
|
Air spoiler
960
|
||||
|
990
|
Emblem & name label
990
|
||||
