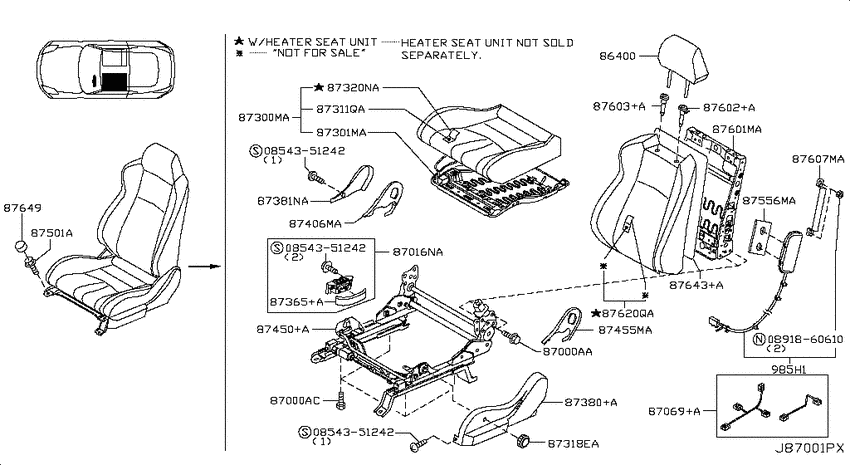

Front seat (2006-11-01 ~ ; LH SEAT HEATER(W/AIR BAG); *C.(TOURING+GT)) Diagram Nissan 350Z
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35HR
- transmission
- MT
- grade
- TOURING
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.57 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.57 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.57 |
||
|
0891860610
|
0891860610
0891860610 NUTSLOCK |
0891860610 |
US $3.44 |
||
|
86400
|
86400
86400-CF41A ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ2006-11-01 ~ ; C.(TOURING+GT); , |
86400-CF41A |
US $426.22 |
||
|
86400
|
86400
86400-CF41B ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ2006-11-01 ~ ; C.(TOURING+GT); , |
86400-CF41B |
US $426.22 |
||
|
86400
|
86400
86400-CF41C ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ2006-11-01 ~ ; C.(TOURING+GT); , |
86400-CF41C |
US $426.22 |
||
|
87000AA
|
87000AA
876N9-2U010 Bolt-Special2006-11-01 ~ ; *C; , |
876N9-2U010 |
US $2.45 |
||
|
87000AC
|
87000AC
876N9-2U010 Bolt-Special2006-11-01 ~ ; *C.(TOURING+GT); , |
876N9-2U010 |
US $2.45 |
||
|
87016NA
|
87016NA
87066-CD001 SWITCH ASSYFRO2006-11-01 ~ ; *C.(TOURING+GT); , |
87066-CD001 |
from US $93.74 |
||
|
87069+A
|
87069+A
87069-CD010
Harness-front seat
2006-11-01 ~ ; *C.(TOURING+GT); , |
87069-CD010 |
— | ||
|
87300MA
|
87300MA
87350-CD012
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; C.(TOURING+GT); , |
87350-CD012 |
— | ||
|
87300MA
|
87300MA
87350-CD017
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; *C.(TOURING+GT); , |
87350-CD017 |
— | ||
|
87300MA
|
87300MA
87350-CD042
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; C.(TOURING+GT); , |
87350-CD042 |
— | ||
|
87300MA
|
87300MA
87350-CD047
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; *C.(TOURING+GT); , |
87350-CD047 |
— | ||
|
87300MA
|
87300MA
87350-CD062
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; C.(TOURING+GT); , |
87350-CD062 |
— | ||
|
87300MA
|
87300MA
87350-CD067
Cushion assy-front seat
2006-11-01 ~ 2007-08-01; *C.(TOURING+GT); , |
87350-CD067 |
— | ||
|
87300MA
|
87300MA
87350-CF41A
Cushion assy-front seat
2007-08-01 ~ ; C.(TOURING+GT); , |
87350-CF41A |
— | ||
|
87300MA
|
87300MA
87350-CF41B
Cushion assy-front seat
2007-08-01 ~ ; C.(TOURING+GT); , |
87350-CF41B |
— | ||
|
87300MA
|
87300MA
87350-CF41C
Cushion assy-front seat
2007-08-01 ~ ; C.(TOURING+GT); , |
87350-CF41C |
— | ||
|
87300MA
|
87300MA
87350-CF46A
Cushion assy-front seat
2007-08-01 ~ ; *C.(TOURING+GT); , |
87350-CF46A |
— | ||
|
87300MA
|
87300MA
87350-CF46B
Cushion assy-front seat
2007-08-01 ~ ; *C.(TOURING+GT); , |
87350-CF46B |
— | ||
|
87300MA
|
87300MA
87350-CF46C
Cushion assy-front seat
2007-08-01 ~ ; *C.(TOURING+GT); , |
87350-CF46C |
— | ||
|
87301MA
|
87301MA
87351-CD012
Frame assy-front seat cushion
2006-11-01 ~ ; C.(TOURING+GT); , |
87351-CD012 |
— | ||
|
87301MA
|
87301MA
87351-CD017
Frame assy-front seat cushion
2006-11-01 ~ ; *C.(TOURING+GT); , |
87351-CD017 |
— | ||
|
87311QA
|
87311QA
87361-CD01A
Pad-front seat cushion
2006-11-01 ~ ; *C.(TOURING+GT); , |
87361-CD01A |
— | ||
|
87318EA
|
87318EA
87346-89900 Knob-Lifter Lever2006-11-01 ~ ; *C; , |
87346-89900 |
US $5.33 |
||
|
87320NA
|
87320NA
87370-CD01A
Trim assy-front seat cushion
2006-11-01 ~ 2007-08-01; *C.(TOURING+GT); , |
87370-CD01A |
— | ||
|
87320NA
|
87320NA
87370-CD01B
Trim assy-front seat cushion
2006-11-01 ~ 2007-08-01; C.(TOURING+GT); , |
87370-CD01B |
— | ||
|
87320NA
|
87320NA
87370-CD01C
Trim assy-front seat cushion
2006-11-01 ~ 2007-08-01; C.(TOURING+GT) +CV.(TOURING+GT); , |
87370-CD01C |
— | ||
|
87320NA
|
87320NA
87370-CD02A
Trim assy-front seat cushion
2007-08-01 ~ ; *C.(TOURING+GT); , |
87370-CD02A |
— | ||
|
87320NA
|
87320NA
87370-CD02B
Trim assy-front seat cushion
2007-08-01 ~ ; C.(TOURING+GT); , |
87370-CD02B |
— | ||
|
87320NA
|
87320NA
87370-CD02C
Trim assy-front seat cushion
2007-08-01 ~ ; *C.(TOURING+GT); , |
87370-CD02C |
— | ||
|
87365+A
|
87365+A
87397-CD010 ﾌｲﾆﾂｼﾔｰ,ｽｲﾂﾁ ﾌﾛﾝﾄ ｼｰﾄ2006-11-01 ~ ; *C.(TOURING+GT); , |
87397-CD010 |
US $10.22 |
||
|
87380+A
|
87380+A
87380-CD012
Finisher assy-cushion,front seat lh
2006-11-01 ~ ; *C.(TOURING+GT); , |
87380-CD012 |
— | ||
|
87381NA
|
87381NA
87381-CD010 ﾌｲﾆﾂｼﾔ-,ｸﾂｼﾖﾝ ﾌﾛﾝﾄ ｼ-ﾄ ｲﾝﾅ- lh2006-11-01 ~ ; *C.(TOURING+GT); , |
87381-CD010 |
US $11.38 |
||
|
87406MA
|
87406MA
87456-CD010 ｶﾊﾞ-,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞﾊﾞｲｽ ｲﾝﾅ-2006-11-01 ~ ; *C.(TOURING+GT); , |
87456-CD010 |
US $7.35 |
||
|
87450+A
|
87450+A
87450-CD022
Adjuster assy-front seat,lh
2006-11-01 ~ ; *C.(TOURING+GT); , |
87450-CD022 |
— | ||
|
87455MA
|
87455MA
87455-CD022
Cover-reclining device,lh outer
2006-11-01 ~ ; *C.(TOURING+GT); , |
87455-CD022 |
— | ||
|
87501A
|
87501A
0112107251 BOLT2006-11-01 ~ ; *C; , |
0112107251 |
from US $1.18 |
||
|
87556MA
|
87556MA
87699-CF00A ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ lh2006-11-01 ~ ; *C.(TOURING+GT); , |
87699-CF00A |
US $19.15 |
||
|
87601MA
|
87601MA
87651-CF40D ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ2006-11-01 ~ ; *C; , |
87651-CF40D |
US $397.90 |
||
|
87602+A
|
87602+A
87602-89900 Holder Assy-Headrest, Lock2006-11-01 ~ ; *C; , |
87602-89900 |
US $4.18 |
||
|
87603+A
|
87603+A
87603-89900 Holder Assy-Headrest, Free2006-11-01 ~ ; C +CV; , |
87603-89900 |
US $4.18 |
||
|
87607MA
|
87607MA
87607-89900 Rod-Air Bag, Front Seat2006-11-01 ~ ; *C; , |
87607-89900 |
US $8.78 |
||
|
87620QA
|
87620QA
87670-CF41A ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ2006-11-01 ~ ; C.(TOURING+GT) +CV.(TOURING+GT); LEATHER SEAT |
87670-CF41A |
US $1,918 |
||
|
87620QA
|
87620QA
87670-CF41B ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ2006-11-01 ~ ; C.(TOURING+GT); LEATHER SEAT |
87670-CF41B |
US $1,918 |
||
|
87620QA
|
87620QA
87670-CF41C ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ2006-11-01 ~ ; C.(TOURING+GT) +CV.(TOURING+GT); LEATHER SEAT |
87670-CF41C |
US $1,918 |
||
|
87620QA
|
87620QA
87670-CF46A
Trim & pad assy-front seat back
2006-11-01 ~ ; *C.(TOURING+GT); LEATHER SEAT |
87670-CF46A |
— | ||
|
87620QA
|
87620QA
87670-CF46B
Trim & pad assy-front seat back
2006-11-01 ~ ; *C.(TOURING+GT); LEATHER SEAT |
87670-CF46B |
— | ||
|
87620QA
|
87620QA
87670-CF46C
Trim & pad assy-front seat back
2006-11-01 ~ ; *C.(TOURING+GT); LEATHER SEAT |
87670-CF46C |
— | ||
|
87643+A
|
87643+A
87643-CD000 ｻﾎﾟ-ﾀ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ2006-11-01 ~ ; *C; , |
87643-CD000 |
US $23.33 |
||
|
87649
|
87649
87649-CD000 Cap2006-11-01 ~ ; *C; , |
87649-CD000 |
US $2.45 |
||
|
985H1
|
985H1
KHEHA-CF40A
Module assy-side air bag fr lh
2006-11-01 ~ ; *C; , |
KHEHA-CF40A |
— | ||
| replacement | |||||
|
985H1
|
985H1
YHEHA-CF40A
Module assy-side air bag fr lh
2006-11-01 ~ ; *C; , |
YHEHA-CF40A |
— | ||
