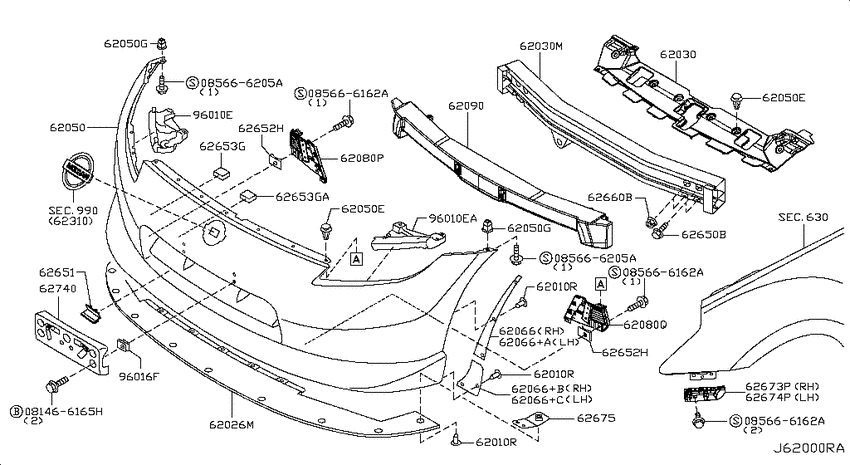

Front bumper (2009-04-01 ~ ; VERSION NISMO; *C.BASE.6MT) Diagram Nissan 370Z
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- VQ37VHR
- drive
- 2WD
- transmission
- 6MT
- grade
- BASE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165H
|
081466165H
081466165H Bolt-hexagon |
081466165H |
from US $0.63 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
085666205A
|
085666205A
085666205A SCREW TAPPING |
085666205A |
from US $0.54 |
||
|
085666205A
|
085666205A
085666205A SCREW TAPPING |
085666205A |
from US $0.54 |
||
|
62010R
|
62010R
U0RVT-1A007 Rivet2009-04-01 ~ ; *C.BASE.6MT; , |
U0RVT-1A007 |
US $8.44 |
||
|
62010R
|
62010R
U0RVT-1A007 Rivet2009-04-01 ~ ; *C.BASE.6MT; , |
U0RVT-1A007 |
US $8.44 |
||
|
62010R
|
62010R
U0RVT-1A007 Rivet2009-04-01 ~ ; *C.BASE.6MT; , |
U0RVT-1A007 |
US $8.44 |
||
|
62026M
|
62026M
F2026-1A47A
Fascia-Front Bumper, Lower
2009-04-01 ~ ; *C.BASE.6MT; , |
F2026-1A47A |
— | ||
|
62030
|
62030
620671EA0A Finisher Assy-Front Bumper, Center2008-10-01 ~ 2009-10-01; C +R/S; , |
620671EA0A |
from US $55.43 |
||
|
62030
|
62030
62030-1EA0A Armature Assy-Front Bumper2009-10-01 ~ ; C +R/S; , |
62030-1EA0A |
from US $305.86 |
||
|
62030
|
62030
F2030-1A30A Armature Assy-Front Bumper2009-04-01 ~ ; *C.BASE.6MT; , |
F2030-1A30A |
US $521.74 |
||
|
62030M
|
62030M
62030-1EA0A Armature Assy-Front Bumper2009-10-01 ~ ; C +R/S; , |
62030-1EA0A |
from US $305.86 |
||
|
62030M
|
62030M
F2030-1A30A Armature Assy-Front Bumper2009-04-01 ~ ; *C.BASE.6MT; , |
F2030-1A30A |
US $521.74 |
||
|
62050
|
62050
FBM22-1EA0H Fascia-Front Bumper2008-10-01 ~ 2009-10-01; C.(BASE+TOURING); NO PAINT |
FBM22-1EA0H |
US $278.94 |
||
|
62050
|
62050
FBM23-1A47H
Fascia-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; NO PAINT |
FBM23-1A47H |
— | ||
|
62050
|
62050
0155309321 CLIP2009-04-01 ~ 2009-10-01; *C.BASE.6MT; , |
0155309321 |
US $0.97 |
||
|
62050
|
62050
85099-1EA0A Gromet2009-04-01 ~ ; *C.BASE.6MT; , |
85099-1EA0A |
from US $0.97 |
||
|
62050E
|
62050E
0155309321 CLIP2009-04-01 ~ 2009-10-01; *C.BASE.6MT; , |
0155309321 |
US $0.97 |
||
|
62050E
|
62050E
0155309321 CLIP2009-04-01 ~ 2009-10-01; *C.BASE.6MT; , |
0155309321 |
US $0.97 |
||
|
62050G
|
62050G
85099-1EA0A Gromet2009-04-01 ~ ; *C.BASE.6MT; , |
85099-1EA0A |
from US $0.97 |
||
|
62050G
|
62050G
85099-1EA0A Gromet2009-04-01 ~ ; *C.BASE.6MT; , |
85099-1EA0A |
from US $0.97 |
||
|
62066
|
62066
F2064-1A30A
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30A |
— | ||
|
62066
|
62066
F2064-1A30B
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30B |
— | ||
|
62066
|
62066
F2064-1A30C
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30C |
— | ||
|
62066
|
62066
F2064-1A30D
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30D |
— | ||
|
62066+A
|
62066+A
F2064-1A30B
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30B |
— | ||
|
62066+B
|
62066+B
F2064-1A30C
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30C |
— | ||
|
62066+C
|
62066+C
F2064-1A30D
Protector-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2064-1A30D |
— | ||
|
62080P
|
62080P
622341EA0A Shield-Sight, Front Bumper Rh2008-10-01 ~ 2009-10-01; C +R/S; , |
622341EA0A |
US $23.04 |
||
|
62080Q
|
62080Q
622351EA0A Shield-Sight, Front Bumper Lh2008-10-01 ~ 2009-10-01; C +R/S; , |
622351EA0A |
US $23.04 |
||
|
62090
|
62090
62090-1EA0A Energy Absorber-Front Bumper2008-10-01 ~ 2009-10-01; C +R/S; , |
62090-1EA0A |
US $119.10 |
||
|
62650B
|
62650B
0112503611 BOLT2008-10-01 ~ 2009-10-01; C +R/S; , |
0112503611 |
from US $1.70 |
||
|
62651
|
62651
620231EA0A Bumper-Front, Center2008-10-01 ~ 2009-10-01; C +R/S; , |
620231EA0A |
from US $3.68 |
||
|
62652H
|
62652H
0124100471 NUT2008-10-01 ~ 2009-10-01; C +R/S; , |
0124100471 |
from US $0.57 |
||
|
62652H
|
62652H
0124100471 NUT2008-10-01 ~ 2009-10-01; C +R/S; , |
0124100471 |
from US $0.57 |
||
|
62653G
|
62653G
F2094-1A31A
Spacer-Front Bumper Side
2009-04-01 ~ ; *C.BASE.6MT; , |
F2094-1A31A |
— | ||
|
62653G
|
62653G
F2094-1A31B
Spacer-Front Bumper Side
2009-04-01 ~ ; *C.BASE.6MT; , |
F2094-1A31B |
— | ||
|
62653GA
|
62653GA
F2094-1A31B
Spacer-Front Bumper Side
2009-04-01 ~ ; *C.BASE.6MT; , |
F2094-1A31B |
— | ||
|
62660B
|
62660B
0122100391 NUT2008-10-01 ~ 2009-01-01; C +R/S; , |
0122100391 |
US $2.49 |
||
|
62660B
|
62660B
8049740U0A Nut-Spring2009-01-01 ~ 2009-10-01; C +R/S; , |
8049740U0A |
from US $0.70 |
||
|
62673P
|
62673P
622221EA0A Bracket-Front Bumper Side, Rh2008-10-01 ~ 2009-07-01; C +R/S; , |
622221EA0A |
US $8.21 |
||
|
62673P
|
62673P
62222-1EA0B Bracket-Front Bumper Side, Rh2009-07-01 ~ 2009-10-01; C +R/S; , |
62222-1EA0B |
from US $8.21 |
||
|
62674P
|
62674P
622231EA0A Bracket-Front Bumper Side, Lh2008-10-01 ~ 2009-07-01; C +R/S; , |
622231EA0A |
US $8.21 |
||
|
62674P
|
62674P
62223-1EA0B Bracket-Front Bumper Side, Lh2009-10-01 ~ ; C +R/S; , |
62223-1EA0B |
from US $8.21 |
||
|
62675
|
62675
F2042-1A30A
Bracket-Front Bumper
2009-04-01 ~ ; *C.BASE.6MT; , |
F2042-1A30A |
— | ||
|
62740
|
62740
96210-1EA0A
Bracket-Licence Plate
2008-10-01 ~ 2009-10-01; C +R/S; , |
96210-1EA0A |
— | ||
|
62740
|
62740
K6212-1A30A
Bracket-Licence Plate
2009-04-01 ~ ; *C.BASE.6MT; , |
K6212-1A30A |
— | ||
|
630
|
Front fender & fitting
630
|
||||
|
630
|
Front fender & fitting
630
|
||||
|
96010E
|
96010E
622281EA0A Clip2008-10-01 ~ 2009-10-01; C +R/S; , |
622281EA0A |
from US $34.41 |
||
|
96010E
|
96010E
622291EA0A Clip2008-10-01 ~ 2009-10-01; C +R/S; , |
622291EA0A |
US $32.98 |
||
|
96010EA
|
96010EA
622291EA0A Clip2008-10-01 ~ 2009-10-01; C +R/S; , |
622291EA0A |
US $32.98 |
||
|
96016F
|
96016F
0124101051 NUT-SPRING2009-04-01 ~ ; *C.BASE.6MT; , |
0124101051 |
from US $0.98 |
||
|
990
|
Emblem & name label
990
|
||||
|
990
|
Emblem & name label
990
|
||||
|
990
|
Emblem & name label
990
|
||||
