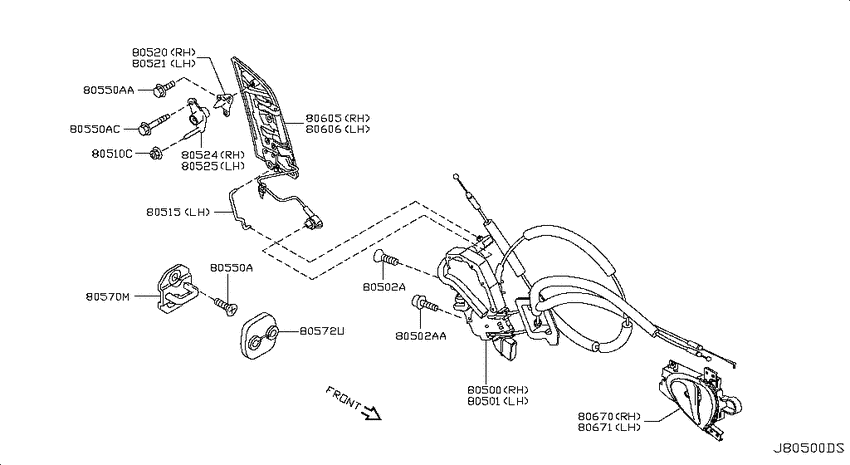

Front door lock & handle (2009-06-01 ~ ; R/S) Diagram Nissan 370Z
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- VQ37VHR
- drive
- 2WD
- transmission
- 7AT
- grade
- TOURING
- body
- R/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80500
|
80500
80500-1EA0A
Lock & remote control assy-front door,rh
2009-06-01 ~ ; R/S; , |
80500-1EA0A |
— | ||
|
80501
|
80501
80501-1EA0A Lock & remote control assy-front door,lh2009-06-01 ~ ; R/S; , |
80501-1EA0A |
US $214.69 |
||
|
80502A
|
80502A
80599AX00E Screw2009-06-01 ~ ; R/S; , |
80599AX00E |
US $2.45 |
||
|
80502A
|
80502A
48703-CD70A Screw2009-06-01 ~ ; R/S; , |
48703-CD70A |
US $4.18 |
||
|
80502AA
|
80502AA
48703-CD70A Screw2009-06-01 ~ ; R/S; , |
48703-CD70A |
US $4.18 |
||
|
80510C
|
80510C
01221N8011 Nut2009-06-01 ~ ; R/S; , |
01221N8011 |
from US $0.83 |
||
|
80515
|
80515
80515-1EA0A
Rod-key lock,lh
2009-06-01 ~ ; R/S; , |
80515-1EA0A |
— | ||
|
80520
|
80520
80520-1ET0A Male-dovetail,rh2009-06-01 ~ ; R/S; , |
80520-1ET0A |
US $72.29 |
||
|
80521
|
80521
80521-1ET0A Male-dovetail,lh2009-06-01 ~ ; R/S; , |
80521-1ET0A |
US $72.29 |
||
|
80524
|
80524
80524-1ET0A Female-dovetaol,rh2009-06-01 ~ ; R/S; , |
80524-1ET0A |
US $52.13 |
||
|
80525
|
80525
80525-1ET0A Female-dovetail,lh2009-06-01 ~ ; R/S; , |
80525-1ET0A |
US $52.13 |
||
|
80550A
|
80550A
80498JK10A Screw2009-06-01 ~ ; R/S; , |
80498JK10A |
from US $1.15 |
||
|
80550A
|
80550A
82586-1EA0A Bolt2009-06-01 ~ ; R/S; , |
82586-1EA0A |
US $2.45 |
||
|
80550A
|
80550A
01121-N8111 Bolt2009-06-01 ~ ; R/S; , |
01121-N8111 |
US $1.73 |
||
|
80550AA
|
80550AA
82586-1EA0A Bolt2009-06-01 ~ ; R/S; , |
82586-1EA0A |
US $2.45 |
||
|
80550AC
|
80550AC
01121-N8111 Bolt2009-06-01 ~ ; R/S; , |
01121-N8111 |
US $1.73 |
||
|
80570M
|
80570M
80570AH300 Striker Assy-Front Door Lock2009-06-01 ~ ; R/S; , |
80570AH300 |
from US $15.26 |
||
|
80572U
|
80572U
80572AA300 Cover-Striker2009-06-01 ~ ; R/S; , |
80572AA300 |
from US $18.56 |
||
|
80605
|
80605
80606-1EA0A
Handle assy-front door outside,rh
2009-06-01 ~ ; R/S; , |
80606-1EA0A |
— | ||
|
80606
|
80606
80607-1EA0A
Handle assy-front door outside,lh
2009-06-01 ~ ; R/S; , |
80607-1EA0A |
— | ||
|
80670
|
80670
80670-1EA0A Handle assy-door inside,rh2009-06-01 ~ ; R/S; , |
80670-1EA0A |
US $68.11 |
||
|
80671
|
80671
80671-1EA0A Handle assy-door inside,lh2009-06-01 ~ ; R/S; , |
80671-1EA0A |
US $68.11 |
