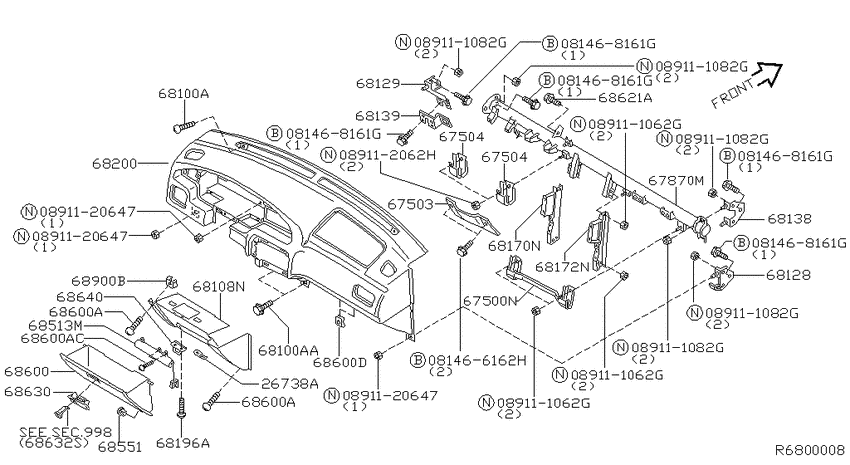

Instrument panel, pad & cluster lid (1999-08-01 ~ ; INST FITTING; 4S) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- AT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089112062H
|
089112062H
089112062H NUT |
089112062H |
US $2.08 |
||
|
0891120647
|
0891120647
08911-20647
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-20647 |
— | ||
|
0891120647
|
0891120647
08911-20647
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-20647 |
— | ||
|
0891120647
|
0891120647
08911-20647
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-20647 |
— | ||
|
26738A
|
26738A
26261-89900 Bulb-Trunk Room Lamp1997-06-01 ~ 1997-08-01; 4S.(GXE+GLE+SE); , |
26261-89900 |
from US $1.74 |
||
|
26738A
|
26738A
26261-9E000
Bulb
1997-08-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
26261-9E000 |
— | ||
|
67500N
|
67500N
67500-9E000
Protector assy-knee,rh upper
1997-06-01 ~ 1999-08-01; 4S; , |
67500-9E000 |
— | ||
|
67503
|
67503
67503-9E000
Protector assy-knee,lh
1997-06-01 ~ 1999-08-01; 4S; , |
67503-9E000 |
— | ||
|
67504
|
67504
67504-9E000
Protector assy-knee,lh inner
1997-06-01 ~ 1999-08-01; 4S; , |
67504-9E000 |
— | ||
|
67504
|
67504
67504-9E000
Protector assy-knee,lh inner
1997-06-01 ~ 1999-08-01; 4S; , |
67504-9E000 |
— | ||
|
67870M
|
67870M
67870-9E000
Member assy-steering
1997-06-01 ~ 1999-08-01; 4S; , |
67870-9E000 |
— | ||
|
68100A
|
68100A
0145600031 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145600031 |
from US $1.11 |
||
|
68100A
|
68100A
01456-00501 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
01456-00501 |
US $1.73 |
||
|
68100AA
|
68100AA
01456-00501 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
01456-00501 |
US $1.73 |
||
|
68108N
|
68108N
68108-0Z800
Panel-instrument lower,assist
1999-08-01 ~ ; 4S.(GXE+GLE+SE); , |
68108-0Z800 |
— | ||
|
68108N
|
68108N
68108-9E000
Panel-instrument lower,assist
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68108-9E000 |
— | ||
|
68108N
|
68108N
68108-9E001
Panel-instrument lower,assist
1997-06-01 ~ 1999-01-01; 4S.(GXE+GLE+SE); , |
68108-9E001 |
— | ||
|
68108N
|
68108N
68108-9E002
Panel-instrument lower,assist
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68108-9E002 |
— | ||
|
68128
|
68128
68128-9E000
Bracket-instrument side,rh
1997-06-01 ~ 1999-08-01; 4S; , |
68128-9E000 |
— | ||
|
68129
|
68129
68129-9E000
Bracket-instrument side,lh
1997-06-01 ~ 1999-08-01; 4S; , |
68129-9E000 |
— | ||
|
68138
|
68138
68138-9E000
Bracket-instrument member,rh
1997-06-01 ~ 1999-08-01; 4S; , |
68138-9E000 |
— | ||
|
68139
|
68139
68139-4E800
Bracket-instrument member,lh
1997-06-01 ~ 1999-08-01; 4S; , |
68139-4E800 |
— | ||
|
68170N
|
68170N
68170-9E000
Stay assy-instrument,driver
1997-06-01 ~ 1999-08-01; 4S; , |
68170-9E000 |
— | ||
|
68172N
|
68172N
68172-9E000
Stay assy-instrument,assist
1997-06-01 ~ 1999-08-01; 4S; , |
68172-9E000 |
— | ||
|
68196A
|
68196A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68200
|
68200
68200-0Z800
Panel & pad assy-instrument
1999-08-01 ~ ; 4S; , |
68200-0Z800 |
— | ||
|
68200
|
68200
68200-9E000
Panel & pad assy-instrument
1997-06-01 ~ 1999-08-01; 4S; , |
68200-9E000 |
— | ||
|
68200
|
68200
68200-9E001
Panel & pad assy-instrument
1997-06-01 ~ 1999-01-01; 4S.(GXE+GLE+SE); , |
68200-9E001 |
— | ||
|
68200
|
68200
68200-9E002
Panel & pad assy-instrument
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68200-9E002 |
— | ||
|
68513M
|
68513M
68513-9E000
Damper assy-glove box
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68513-9E000 |
— | ||
|
68551
|
68551
6855150Y00
Pin-Glove Box
1997-06-01 ~ 1999-08-01; 4S; , |
6855150Y00 |
— | ||
| replacement | |||||
|
68551
|
68551
68551-EQ00A Pin-glove box1997-06-01 ~ 1999-08-01; 4S; , |
68551-EQ00A |
from US $5.27 |
||
|
68600
|
68600
68500-0Z800
Box-glove
1999-08-01 ~ ; 4S.(GXE+GLE+SE); , |
68500-0Z800 |
— | ||
|
68600
|
68600
68500-9E000
Box-glove
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68500-9E000 |
— | ||
|
68600
|
68600
68500-9E001
Box-glove
1997-06-01 ~ 1999-01-01; 4S.(GXE+GLE+SE); , |
68500-9E001 |
— | ||
|
68600
|
68600
68500-9E002
Box-glove
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68500-9E002 |
— | ||
|
68600
|
68600
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600
|
68600
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600
|
68600
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600
|
68600
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
0145100581 |
from US $0.78 |
||
|
68600
|
68600
21477-C0510 Nut1997-06-01 ~ 1999-08-01; 4S; , |
21477-C0510 |
US $1.73 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S; , |
0145100581 |
from US $0.78 |
||
|
68600A
|
68600A
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
0145100581 |
from US $0.78 |
||
|
68600AC
|
68600AC
0145100581 SCREW1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
0145100581 |
from US $0.78 |
||
|
68600D
|
68600D
21477-C0510 Nut1997-06-01 ~ 1999-08-01; 4S; , |
21477-C0510 |
US $1.73 |
||
|
68621A
|
68621A
0145600031 SCREW1997-08-01 ~ 1999-08-01; 4S; , |
0145600031 |
from US $1.11 |
||
|
68630
|
68630
68630-6P102 Lock Assy-Glove Box Lid1999-08-01 ~ ; 4S.(GXE+GLE+SE); , |
68630-6P102 |
US $32.98 |
||
| replacement | |||||
|
68630
|
68630
686306P10C Lock Assy-Glove Box Lid1999-08-01 ~ ; 4S.(GXE+GLE+SE); , |
686306P10C |
from US $33.70 |
||
|
68630
|
68630
68630-9E000
Lock assy-glove box lid
1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68630-9E000 |
— | ||
|
68630
|
68630
68630-9E001
Lock assy-glove box lid
1997-06-01 ~ 1999-01-01; 4S.(GXE+GLE+SE); , |
68630-9E001 |
— | ||
|
68630
|
68630
68630-9E002 LOCK ASSY-GLOVE BOX LID1997-06-01 ~ 1999-08-01; 4S.(GXE+GLE+SE); , |
68630-9E002 |
US $33.70 |
||
|
68640
|
68640
68640-9E000
Striker-lock,rear box
1997-06-01 ~ 1999-08-01; 4S; , |
68640-9E000 |
— | ||
|
68900B
|
68900B
68191-51E00
NUT
1997-06-01 ~ 1999-08-01; 4S; , |
68191-51E00 |
— | ||
| replacement | |||||
|
68900B
|
68900B
6819151E0A Nut1997-06-01 ~ 1999-08-01; 4S; , |
6819151E0A |
US $1.39 |
||
