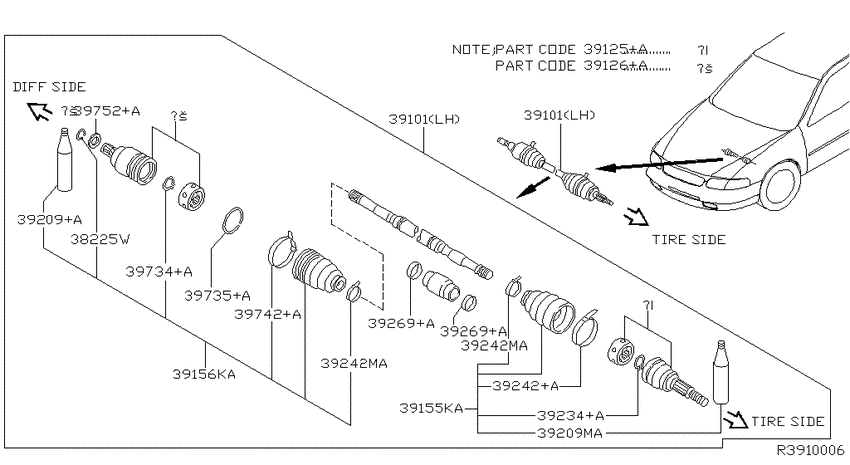

Front drive shaft (ff) (1997-06-01 ~ 1999-08-01; LH; KA24DE) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38225W
|
38225W
3822530R00 Circlip-Side Gear1997-06-01 ~ 1999-08-01; KA24DE.MT; , |
3822530R00 |
US $1.73 |
||
|
39101
|
39101
39101-0Z800
Shaft Assy-Front Drive, Lh
1999-08-01 ~ ; KA24DE.MT; , |
39101-0Z800 |
— | ||
|
39101
|
39101
39101-0Z810
Shaft Assy-Front Drive, Lh
1999-08-01 ~ ; *KA24DE.(GXE+SE).MT; , |
39101-0Z810 |
— | ||
|
39101
|
39101
39101-9E100
SHAFT ASSY-FRONT DRIVE,LH
1997-06-01 ~ 1999-08-01; KA24DE.MT; , |
39101-9E100 |
— | ||
|
39101
|
39101
39101-9E110
SHAFT ASSY-FRONT DRIVE,LH
1997-06-01 ~ 1999-08-01; *KA24DE.MT; F/ABS |
39101-9E110 |
— | ||
|
39101
|
39101
39101-0Z800
Shaft Assy-Front Drive, Lh
1999-08-01 ~ ; KA24DE.MT; , |
39101-0Z800 |
— | ||
|
39101
|
39101
39101-0Z810
Shaft Assy-Front Drive, Lh
1999-08-01 ~ ; *KA24DE.(GXE+SE).MT; , |
39101-0Z810 |
— | ||
|
39101
|
39101
39101-9E100
SHAFT ASSY-FRONT DRIVE,LH
1997-06-01 ~ 1999-08-01; KA24DE.MT; , |
39101-9E100 |
— | ||
|
39101
|
39101
39101-9E110
SHAFT ASSY-FRONT DRIVE,LH
1997-06-01 ~ 1999-08-01; *KA24DE.MT; F/ABS |
39101-9E110 |
— | ||
|
39125+A
|
39125+A
39211-9E100 JOINT ASSY-OUTER1997-06-01 ~ 1999-08-01; KA24DE; , |
39211-9E100 |
US $563.57 |
||
|
39126+A
|
39126+A
39711-0Z800
Joint Assy-Inner
1999-08-01 ~ ; *KA24DE.(GXE+SE).MT; , |
39711-0Z800 |
— | ||
|
39126+A
|
39126+A
39711-9E000
JOINT ASSY-INNER
1997-06-01 ~ 1999-08-01; KA24DE.MT; , |
39711-9E000 |
— | ||
|
39155KA
|
39155KA
39241-9E025
DUST BOOT KIT-REPAIR,OUTER
1997-06-01 ~ 1999-08-01; KA24DE; , |
39241-9E025 |
— | ||
|
39156KA
|
39156KA
39741-0Z825
Dust Boot Kit-Repair, Inner
1999-08-01 ~ ; KA24DE; , |
39741-0Z825 |
— | ||
|
39156KA
|
39156KA
39741-9E025 REPAIR KIT-DUST B00T,INNER1997-06-01 ~ 1999-08-01; KA24DE; , |
39741-9E025 |
US $97.63 |
||
|
39209+A
|
39209+A
39709-55E26 GREASE1997-06-01 ~ 1999-08-01; KA24DE; , |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209+A
|
39209+A
C9709-2U626 Grease-Inner1997-06-01 ~ 1999-08-01; KA24DE; , |
C9709-2U626 |
US $36.72 |
||
|
39209MA
|
39209MA
39209-01A26
Grease-Outer
1997-06-01 ~ 1999-08-01; KA24DE; , |
39209-01A26 |
— | ||
| replacement | |||||
|
39209MA
|
39209MA
C9BDA-0M62H C9BDA0M62H1997-06-01 ~ 1999-08-01; KA24DE; , |
C9BDA-0M62H |
US $91.35 |
||
|
39234+A
|
39234+A
39234-2B100 Circlip-Drive Shaft1997-06-01 ~ 1999-08-01; KA24DE; , |
39234-2B100 |
US $2.36 |
||
|
39242+A
|
39242+A
39242-2B000 Band-Boot, Drive Shaft Outer1997-06-01 ~ 1999-08-01; KA24DE; , |
39242-2B000 |
US $4.03 |
||
|
39242MA
|
39242MA
39242-03P05 Band-Rubber Boot, Shaft1999-08-01 ~ ; *KA24DE.(GXE+GLE+SE); , |
39242-03P05 |
from US $4.18 |
||
|
39242MA
|
39242MA
39242-03P05 Band-Rubber Boot, Shaft1999-08-01 ~ ; *KA24DE.(GXE+GLE+SE); , |
39242-03P05 |
from US $4.18 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper1997-06-01 ~ 1999-08-01; KA24DE; , |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper1997-06-01 ~ 1999-08-01; KA24DE; , |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
39708-64Y00 Ring-Snap1999-08-01 ~ ; KA24DE; , |
39708-64Y00 |
US $5.47 |
||
|
39734+A
|
39734+A
39734-2B100 Ring-Snap1997-06-01 ~ 1999-08-01; KA24DE; , |
39734-2B100 |
US $1.58 |
||
|
39735+A
|
39735+A
39735-03P00 Ring-Stopper1997-06-01 ~ 1999-08-01; KA24DE; , |
39735-03P00 |
US $2.45 |
||
|
39742+A
|
39742+A
3974203P00 Band-Boot, Drive Shaft Inner1997-06-01 ~ 1999-08-01; KA24DE; , |
3974203P00 |
US $9.69 |
||
|
39742+A
|
39742+A
39742-64Y00 Band-Boot, Drive Shaft Inner1999-08-01 ~ ; KA24DE; , |
39742-64Y00 |
US $10.94 |
||
|
39752+A
|
39752+A
39752-10E12
SHIELD-DUST
1997-06-01 ~ 1999-08-01; KA24DE; , |
39752-10E12 |
— | ||
