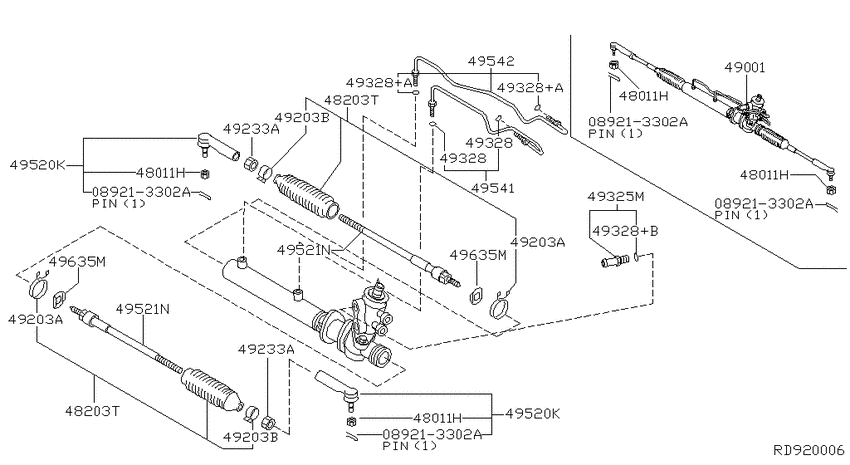

Power steering gear (1997-06-01 ~ 1999-08-01; KA24DE) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089213302A
|
089213302A
08921-3302A
PINCOTTER SPLI
|
08921-3302A |
— | ||
|
089213302A
|
089213302A
08921-3302A
PINCOTTER SPLI
|
08921-3302A |
— | ||
|
089213302A
|
089213302A
08921-3302A
PINCOTTER SPLI
|
08921-3302A |
— | ||
|
089213302A
|
089213302A
08921-3302A
PINCOTTER SPLI
|
08921-3302A |
— | ||
|
48011H
|
48011H
0122700081 NUT1997-06-01 ~ 1999-08-01; KA24DE; , |
0122700081 |
US $2.91 |
||
|
48011H
|
48011H
0122700081 NUT1997-06-01 ~ 1999-08-01; KA24DE; , |
0122700081 |
US $2.91 |
||
|
48011H
|
48011H
0122700081 NUT1997-06-01 ~ 1999-08-01; KA24DE; , |
0122700081 |
US $2.91 |
||
|
48011H
|
48011H
0122700081 NUT1997-06-01 ~ 1999-08-01; KA24DE; , |
0122700081 |
US $2.91 |
||
|
48203T
|
48203T
48203-2B026
Boot Kit-Power Steering Gear
1997-06-01 ~ 1999-08-01; KA24DE; , |
48203-2B026 |
— | ||
|
48203T
|
48203T
48203-2B026
Boot Kit-Power Steering Gear
1997-06-01 ~ 1999-08-01; KA24DE; , |
48203-2B026 |
— | ||
|
49001
|
49001
49001-0Z800
Gear & Linkage Assy-Power Steering
1999-08-01 ~ 1999-10-01; KA24DE.(GLE+SE); , |
49001-0Z800 |
— | ||
|
49001
|
49001
49001-0Z810
Gear & Linkage Assy-Power Steering
1999-10-01 ~ 1999-12-01; KA24DE; , |
49001-0Z810 |
— | ||
|
49001
|
49001
49001-9E000
GEAR & LINKAGE ASSY-POWER STEERING
1997-06-01 ~ 1999-08-01; KA24DE; , |
49001-9E000 |
— | ||
|
49203A
|
49203A
48055-2B000
Clamp-Boot
1997-06-01 ~ 1999-08-01; KA24DE; , |
48055-2B000 |
— | ||
|
49203A
|
49203A
48055-2B000
Clamp-Boot
1997-06-01 ~ 1999-08-01; KA24DE; , |
48055-2B000 |
— | ||
|
49203B
|
49203B
48054-2B003
Clamp-Boot
1997-06-01 ~ 1999-08-01; KA24DE; , |
48054-2B003 |
— | ||
|
49203B
|
49203B
48054-2B003
Clamp-Boot
1997-06-01 ~ 1999-08-01; KA24DE; , |
48054-2B003 |
— | ||
|
49233A
|
49233A
48634-2B003
Nut-Lock, Adjust Screw
1997-06-01 ~ 1999-08-01; KA24DE; , |
48634-2B003 |
— | ||
|
49233A
|
49233A
48634-2B003
Nut-Lock, Adjust Screw
1997-06-01 ~ 1999-08-01; KA24DE; , |
48634-2B003 |
— | ||
|
49325M
|
49325M
49325-2B000
Port Assy-Drain, Power Steering
1997-06-01 ~ 1999-08-01; KA24DE; , |
49325-2B000 |
— | ||
|
49328
|
49328
49328-2B000
Seal-O Ring
1999-08-01 ~ ; KA24DE; , |
49328-2B000 |
— | ||
|
49328
|
49328
49328-2B000
Seal-O Ring
1997-06-01 ~ 1999-08-01; KA24DE; , |
49328-2B000 |
— | ||
|
49328
|
49328
49328-2B001
Seal-O Ring
1999-08-01 ~ ; KA24DE; , |
49328-2B001 |
— | ||
|
49328
|
49328
49328-2B000
Seal-O Ring
1999-08-01 ~ ; KA24DE; , |
49328-2B000 |
— | ||
|
49328
|
49328
49328-2B000
Seal-O Ring
1997-06-01 ~ 1999-08-01; KA24DE; , |
49328-2B000 |
— | ||
|
49328
|
49328
49328-2B001
Seal-O Ring
1999-08-01 ~ ; KA24DE; , |
49328-2B001 |
— | ||
|
49328+A
|
49328+A
49328-2B000
Seal-O Ring
1997-06-01 ~ 1999-08-01; KA24DE; , |
49328-2B000 |
— | ||
|
49328+A
|
49328+A
49328-2B000
Seal-O Ring
1997-06-01 ~ 1999-08-01; KA24DE; , |
49328-2B000 |
— | ||
|
49328+B
|
49328+B
49328-2B001
Seal-O Ring
1999-08-01 ~ ; KA24DE; , |
49328-2B001 |
— | ||
|
49520K
|
49520K
48520-2B025
Socket Kit-Tie Rod, Outer
1997-06-01 ~ 1999-08-01; KA24DE; , |
48520-2B025 |
— | ||
|
49520K
|
49520K
48520-2B025
Socket Kit-Tie Rod, Outer
1997-06-01 ~ 1999-08-01; KA24DE; , |
48520-2B025 |
— | ||
|
49521N
|
49521N
48521-9E000
SOCKET ASSY-TIE ROD,INNER
1997-06-01 ~ 1999-08-01; KA24DE; , |
48521-9E000 |
— | ||
|
49521N
|
49521N
48521-9E010
SOCKET ASSY-TIE ROD,INNER
1999-10-01 ~ 1999-12-01; KA24DE; , |
48521-9E010 |
— | ||
|
49521N
|
49521N
48521-9E000
SOCKET ASSY-TIE ROD,INNER
1997-06-01 ~ 1999-08-01; KA24DE; , |
48521-9E000 |
— | ||
|
49521N
|
49521N
48521-9E010
SOCKET ASSY-TIE ROD,INNER
1999-10-01 ~ 1999-12-01; KA24DE; , |
48521-9E010 |
— | ||
|
49541
|
49541
49541-2B000
Tube Assy-Cylinder
1997-06-01 ~ 1999-08-01; KA24DE; , |
49541-2B000 |
— | ||
|
49542
|
49542
49542-2B000
Tube Assy-Cylinder
1997-06-01 ~ 1999-08-01; KA24DE; , |
49542-2B000 |
— | ||
|
49635M
|
49635M
48635-9E000
PLATE-LOCK SIDE ROD
1997-06-01 ~ 1999-08-01; KA24DE; , |
48635-9E000 |
— | ||
|
49635M
|
49635M
48635-9E000
PLATE-LOCK SIDE ROD
1997-06-01 ~ 1999-08-01; KA24DE; , |
48635-9E000 |
— |
