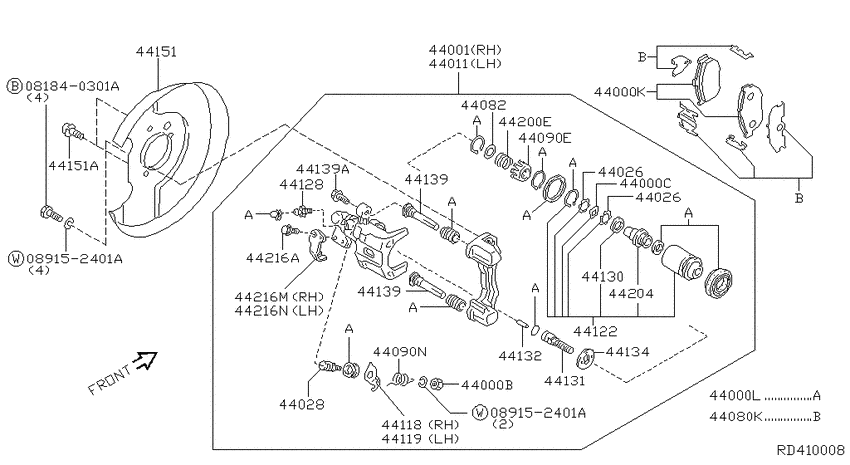

Rear brake (1997-06-01 ~ ; KA24DE.SE) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000B
|
44000B
44149-P6500
Nut
1999-08-01 ~ ; KA24DE.SE; , |
44149-P6500 |
— | ||
| replacement | |||||
|
44000B
|
44000B
44149-AW70A Nut1999-08-01 ~ ; KA24DE.SE; , |
44149-AW70A |
US $4.71 |
||
|
44000C
|
44000C
44139-P6500 Washer1999-08-01 ~ ; KA24DE.SE; , |
44139-P6500 |
US $2.45 |
||
|
44000K
|
44000K
44060-31U92
Pad Kit-Disc Brake, Rear
1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
44060-31U92 |
— | ||
|
44000K
|
44000K
44060-AU090
Pad Kit-Disc Brake, Rear
2001-04-01 ~ ; KA24DE.SE; , |
44060-AU090 |
— | ||
|
44000L
|
44000L
4412061E26
SEAL KIT-DISC BRAKE
1999-08-01 ~ ; KA24DE.SE; , |
4412061E26 |
— | ||
|
44001
|
44001
44001-0E601
Caliper Assy-Rear Rh, W/o Pads Or Shims
1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
44001-0E601 |
— | ||
| replacement | |||||
|
44001
|
44001
D4001-0E601 Caliper assy-rear rh,w/o pads or shims1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
D4001-0E601 |
US $314.31 |
||
|
44001
|
44001
44001-1Z300
Caliper Assy-Rear Rh, W/o Pad & Shim
2001-04-01 ~ ; KA24DE.SE; , |
44001-1Z300 |
— | ||
| replacement | |||||
|
44001
|
44001
44001-1Z310
Caliper assy-rear rh,w/o pads or shims
2001-04-01 ~ ; KA24DE.SE; , |
44001-1Z310 |
— | ||
|
44011
|
44011
44011-0E601
Caliper Assy-Rear Lh, W/o Pads Or Shims
1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
44011-0E601 |
— | ||
| replacement | |||||
|
44011
|
44011
D4011-0E601 Caliper assy-rear lh,w/o pads or shims1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
D4011-0E601 |
US $314.31 |
||
|
44011
|
44011
44011-1Z300
Caliper Assy-Rear Lh, W/o Pad & Shim
2001-04-01 ~ ; KA24DE.SE; , |
44011-1Z300 |
— | ||
| replacement | |||||
|
44011
|
44011
44011-1Z310
Caliper assy-rear lh,w/o pads or shims
2001-04-01 ~ ; KA24DE.SE; , |
44011-1Z310 |
— | ||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING1999-08-01 ~ ; KA24DE.SE; , |
44133-61E00 |
US $5.04 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING1999-08-01 ~ ; KA24DE.SE; , |
44133-61E00 |
US $5.04 |
||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake1999-08-01 ~ ; KA24DE.SE; F/RH |
44142-44B00 |
US $36.03 |
||
|
44028
|
44028
44143-44B00 Cam-Adjusting, Rear Brake1999-08-01 ~ ; KA24DE.SE; F/LH |
44143-44B00 |
US $36.03 |
||
|
44080K
|
44080K
44080-54C25 Hardware Kit-Rear Disc Brake Pad1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
44080-54C25 |
US $64.66 |
||
|
44080K
|
44080K
44083-54C25
Hardware Kit-Rear Disc Brake Pad
2001-04-01 ~ ; KA24DE.SE; , |
44083-54C25 |
— | ||
|
44082
|
44082
44146-61E00 SEAT-SPRING2001-04-01 ~ ; KA24DE.SE; , |
44146-61E00 |
US $3.31 |
||
|
44082
|
44082
44146N9500 Seat-Spring1999-08-01 ~ 2001-04-01; KA24DE.SE; , |
44146N9500 |
US $5.04 |
||
|
44090E
|
44090E
44081-35F00 Cover-Spring1999-08-01 ~ ; KA24DE.SE; , |
44081-35F00 |
US $4.18 |
||
|
44090N
|
44090N
44090-0E600 Spring1999-08-01 ~ ; KA24DE.SE; LH |
44090-0E600 |
US $6.05 |
||
|
44090N
|
44090N
44091-0E600 Spring1999-08-01 ~ ; KA24DE.SE; RH |
44091-0E600 |
US $6.05 |
||
|
44118
|
44118
44095-0E600 Lever Assy-Rh1999-08-01 ~ ; KA24DE.SE; , |
44095-0E600 |
US $30.10 |
||
|
44119
|
44119
44096-0E600 Lever Assy-Lh1999-08-01 ~ ; KA24DE.SE; , |
44096-0E600 |
US $30.10 |
||
|
44122
|
44122
4412361E00 PISTON1999-08-01 ~ ; KA24DE.SE; , |
4412361E00 |
US $78.19 |
||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
1999-08-01 ~ ; KA24DE.SE; , |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder1999-08-01 ~ ; KA24DE.SE; , |
41128AW70A |
from US $7.63 |
||
|
44130
|
44130
44130-P6500 Bearing1999-08-01 ~ ; KA24DE.SE; , |
44130-P6500 |
US $11.09 |
||
|
44131
|
44131
4413461E00 ROD-PUSH1999-08-01 ~ ; KA24DE.SE; , |
4413461E00 |
US $15.41 |
||
|
44132
|
44132
44132N9500 Strut1999-08-01 ~ ; KA24DE.SE; , |
44132N9500 |
US $9.15 |
||
|
44134
|
44134
44131-N9500 Plate1999-08-01 ~ ; KA24DE.SE; , |
44131-N9500 |
US $2.45 |
||
|
44139
|
44139
44140N9500 Pin-Lock1999-08-01 ~ ; KA24DE.SE; , |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
1999-08-01 ~ ; KA24DE.SE; , |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt1999-08-01 ~ ; KA24DE.SE; , |
44141AW70A |
from US $3.35 |
||
|
44139
|
44139
44140N9500 Pin-Lock1999-08-01 ~ ; KA24DE.SE; , |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
1999-08-01 ~ ; KA24DE.SE; , |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt1999-08-01 ~ ; KA24DE.SE; , |
44141AW70A |
from US $3.35 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
1999-08-01 ~ ; KA24DE.SE; , |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt1999-08-01 ~ ; KA24DE.SE; , |
44141AW70A |
from US $3.35 |
||
|
44151
|
44151
44151-2B000
Baffle Plate
1999-08-01 ~ ; KA24DE.SE; F/RH |
44151-2B000 |
— | ||
|
44151
|
44151
44161-2B000
Baffle Plate
1999-08-01 ~ ; KA24DE.SE; F/LH |
44161-2B000 |
— | ||
|
44151
|
44151
0141100131 BOLT1999-08-01 ~ ; KA24DE.SE; , |
0141100131 |
US $1.73 |
||
|
44151A
|
44151A
0141100131 BOLT1999-08-01 ~ ; KA24DE.SE; , |
0141100131 |
US $1.73 |
||
|
44200E
|
44200E
44147-61E00 SPRING1999-08-01 ~ ; KA24DE.SE; , |
44147-61E00 |
US $4.18 |
||
|
44204
|
44204
44128-61E00 NUT-ADJUSTER1999-08-01 ~ ; KA24DE.SE; , |
44128-61E00 |
US $11.66 |
||
|
44216A
|
44216A
44252-53F00 Bolt1999-08-01 ~ ; KA24DE.SE; , |
44252-53F00 |
US $5.90 |
||
|
44216M
|
44216M
44195-0E601 Guide-Adjust Cable, Rh1999-08-01 ~ ; KA24DE.SE; , |
44195-0E601 |
US $33.55 |
||
|
44216N
|
44216N
44196-0E601 Guide-Adjust Cable, Lh1999-08-01 ~ ; KA24DE.SE; , |
44196-0E601 |
US $33.55 |
||
